Mpi to tdi conversion

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
goreden

goreden

Well-Known Member
Posts
161
Location
east sussex
Hi all, after blowing up the engine in the mpi disco ive been offered a cheap 200 tdi, gonna swap the engines over, can anyone tell me of any problems to expect or any other issues, any help greatly appreciated
Cheers in advance

goreden said:
Hi all, after blowing up the engine in the mpi disco ive been offered a cheap 200 tdi, gonna swap the engines over, can anyone tell me of any problems to expect or any other issues, any help greatly appreciated
Cheers in advance
Click to expand...

hi bud, did mine 15 months or so ago, easy really, engine mounts want changing, then its a matter of sorting wiring quite alot of mpi loom is scrap , wires for fuel injection and ecu etc. you will need to extend starter motor and alternator wires as they are on the n/s on a tdi . then its a matter of bolting on rad intercooler ,exhaust, and fit a relay for the glow plugs, try and get one off a 200tdi . also fit fuel filter , you can leave the fuel lines from mpi they are fine. took me two wkds to do, steady away , also did some other jobs while at it , fitted new clutch , timing belt kit rear main seal , rocker cover gasket while engine was out , made life easy. any problems pm me happy to help...:)

1spin said:
hi bud, did mine 15 months or so ago, easy really, engine mounts want changing, then its a matter of sorting wiring quite alot of mpi loom is scrap , wires for fuel injection and ecu etc. you will need to extend starter motor and alternator wires as they are on the n/s on a tdi . then its a matter of bolting on rad intercooler ,exhaust, and fit a relay for the glow plugs, try and get one off a 200tdi . also fit fuel filter , you can leave the fuel lines from mpi they are fine. took me two wkds to do, steady away , also did some other jobs while at it , fitted new clutch , timing belt kit rear main seal , rocker cover gasket while engine was out , made life easy. any problems pm me happy to help...:)
Click to expand...

Thanks for the reply mate, appreciate it, just a couple of questions like will the fuel pump, tank be ok if i flush them through, and does the tdi bolt up to the mpi gearbox, again thanks for the reply mate

goreden said:
Thanks for the reply mate, appreciate it, just a couple of questions like will the fuel pump, tank be ok if i flush them through, and does the tdi bolt up to the mpi gearbox, again thanks for the reply mate
Click to expand...

You cannot use mpi gearbox wrong main input shaft to long. fuel lines and pump fine mate. you can use transfer box , but it is defender ratio, ok if ya running large tyres...:)

Well i started the conversion today after work, got the mpi all ready to literally lift out the engine bay, not bad for 2 hours work, will be doing some more over the weekend, cant wait to get it done

Well after a couple of days of not being able to do very much due to other commitments, managed to get the tdi lump out last night, gonna have a good crack at it today, hoping to get the gearboxes swapped over and start prepping the tdi lump to go back into the mpi
Will update later

goreden said:
Well after a couple of days of not being able to do very much due to other commitments, managed to get the tdi lump out last night, gonna have a good crack at it today, hoping to get the gearboxes swapped over and start prepping the tdi lump to go back into the mpi
Will update later
Click to expand...

dont forget ya engine mounts want welding in. get ya engine attatched to the gearbox then lower engine into place then you can mark up ya mounts for welding them in place.:)

My mechanic is always going on about swapping the 2.0 mpi engine on my Defender for a 300 tdi. Would that be feasible?

fern said:
My mechanic is always going on about swapping the 2.0 mpi engine on my Defender for a 300 tdi. Would that be feasible?
Click to expand...

I'm sure it is but just be aware it is alot of work

I managed to get the gear boxes all swapped over today, have had to call it a day as it started ****ing down, will start on the engine and mounts tomorrow after i've finished work, pretty pleased with how its gone so far

Quick update, again not had alot of time on this thanks to a hectic work schedule, but i've managed to change the timing belt on the tdi lump, replace the rocker cover gasket and water pump gasket, all thats left is the rear main oil seal then its ready to put into the disco, can't wait to get it in when work quietens down a bit, will update again soon hopefully

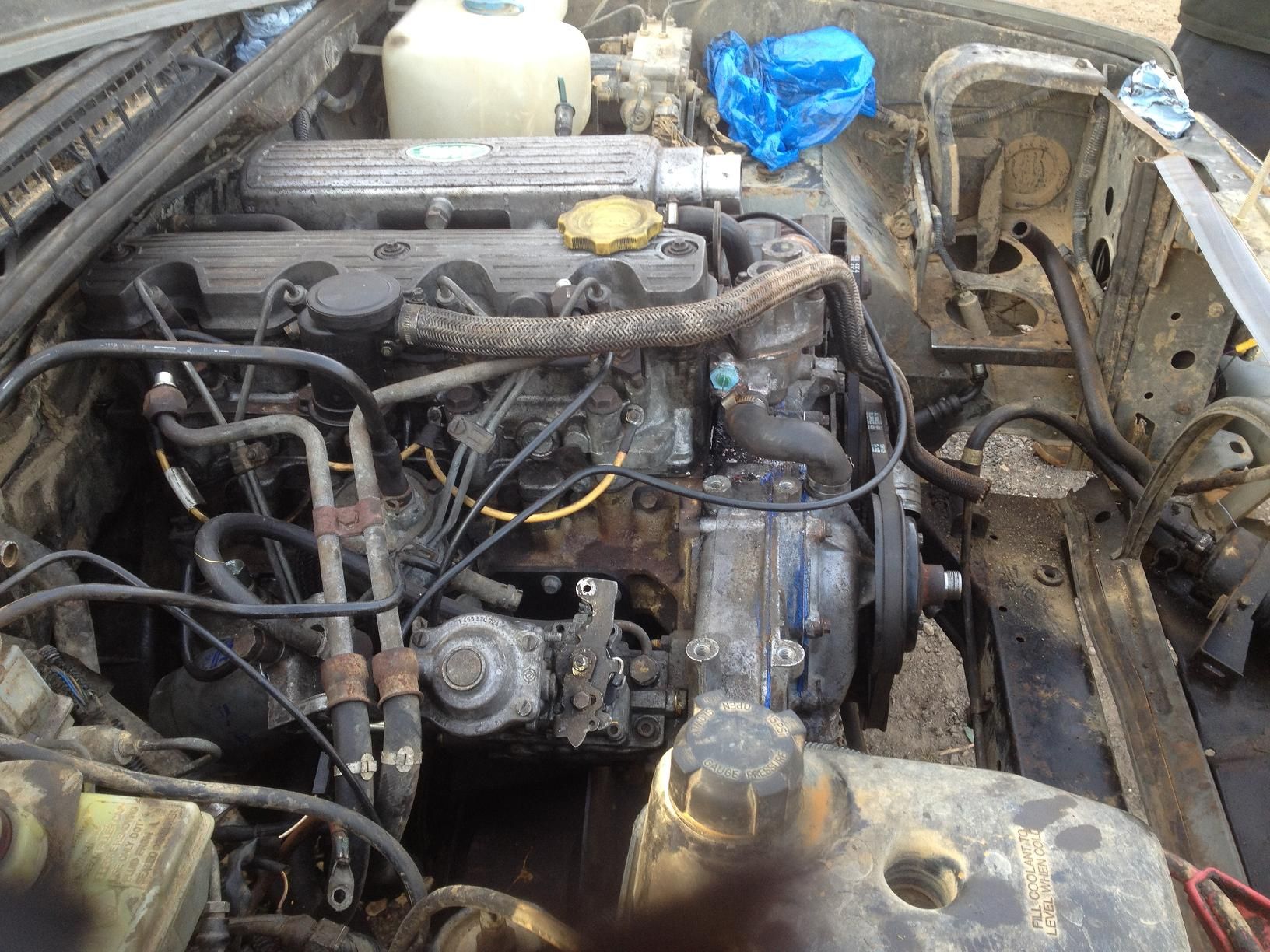

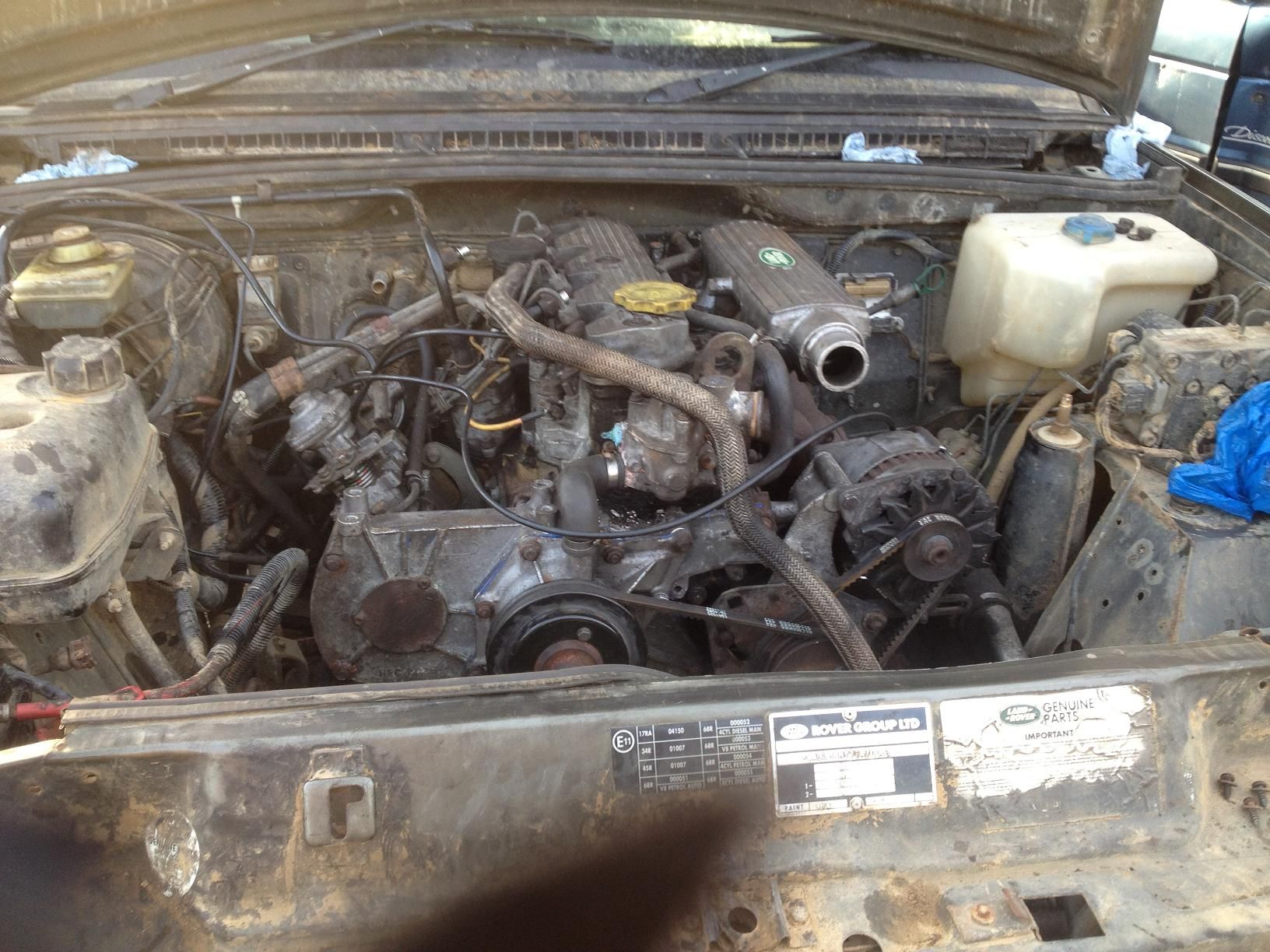

Well, another update, got the rear main oil seal done, put the tdi lump all back together and managed to get it in the disco, and the mounts all welded in, will start plumbing it all in tomorrow, here are a couple of pics :dance:
Picture 157.jpg

Picture 156.jpg

1spin said:
good man. wont be long now buddy...:)
Click to expand...

Thanks mate, and thank you for all your help so far, just a quick question did you have to swap the throttle cable's as they look totally different, and they look like a right pain in the the arse to get off the pedal?
Cheers mate

Right another update, again not had much time on this again but managed to get the disco all wired up and running today, still got alot to do, bleed clutch, power steering, cut out the old wiring, sort out something with the airbox and put all the interior back toghether and i'm sure there's more but can't remember at the mo, but its getting there

yep , use ya 200 tdi one. use as much as poss off ya 200 bud, makes life easy..:) you will also have to change your heater pipes , as the mpi are totally different..:) ye the clip on the pedal is a pain , not alot of room , easy to get off , but putting back another story.

Last edited:
Managed to change the throttle cable in the end, and sorted the heater pipes, like i say got it all running and all is good so far, still got a bit to do but it's running, well pleased with it so far

At last after a scare from the transfer box and many hours its finally finished, just gotta cable tie wires and pipes etc and generally tidy things up, extremely happy with it, cant wait to get it on the rough stuff, but i just wanna thank everyone for any help and advice they provided
