Movement in bulkhead when turning

H

hayjoesam

New Member

Posts

5

• Yesterday at 12:44

• #1

Hello, I've just rebuilt my steering box. Now its refitted to the vehicle (S3). Ive noticed that when I rock the steering, the pedal box and steering box are moving left to right. Its noticeable when looking between the steering box bracket and the air cleaner.

All bolts are tight and the spacers are in.

Thanks



tottot

Well-Known Member

Posts

8,582

Location

west wales coast

• Yesterday at 13:41

• #2

As the pedal box is moving the whole bulkhead has to be moving, have a look where it mounts to the chassis out riggers.



mystery

Well-Known Member

Posts

1,610

Location

BULKINGTON

• Yesterday at 20:20

• #3

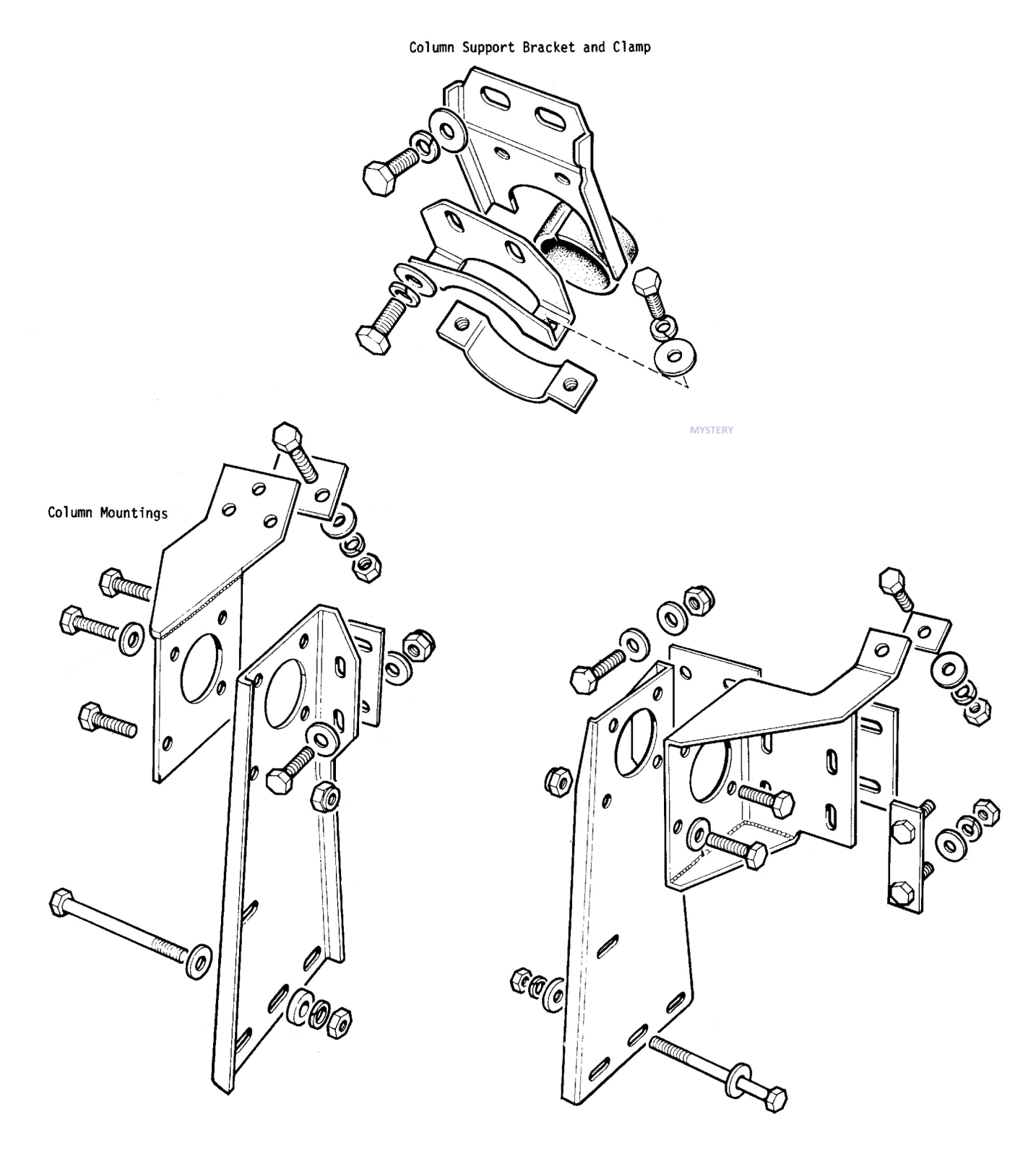

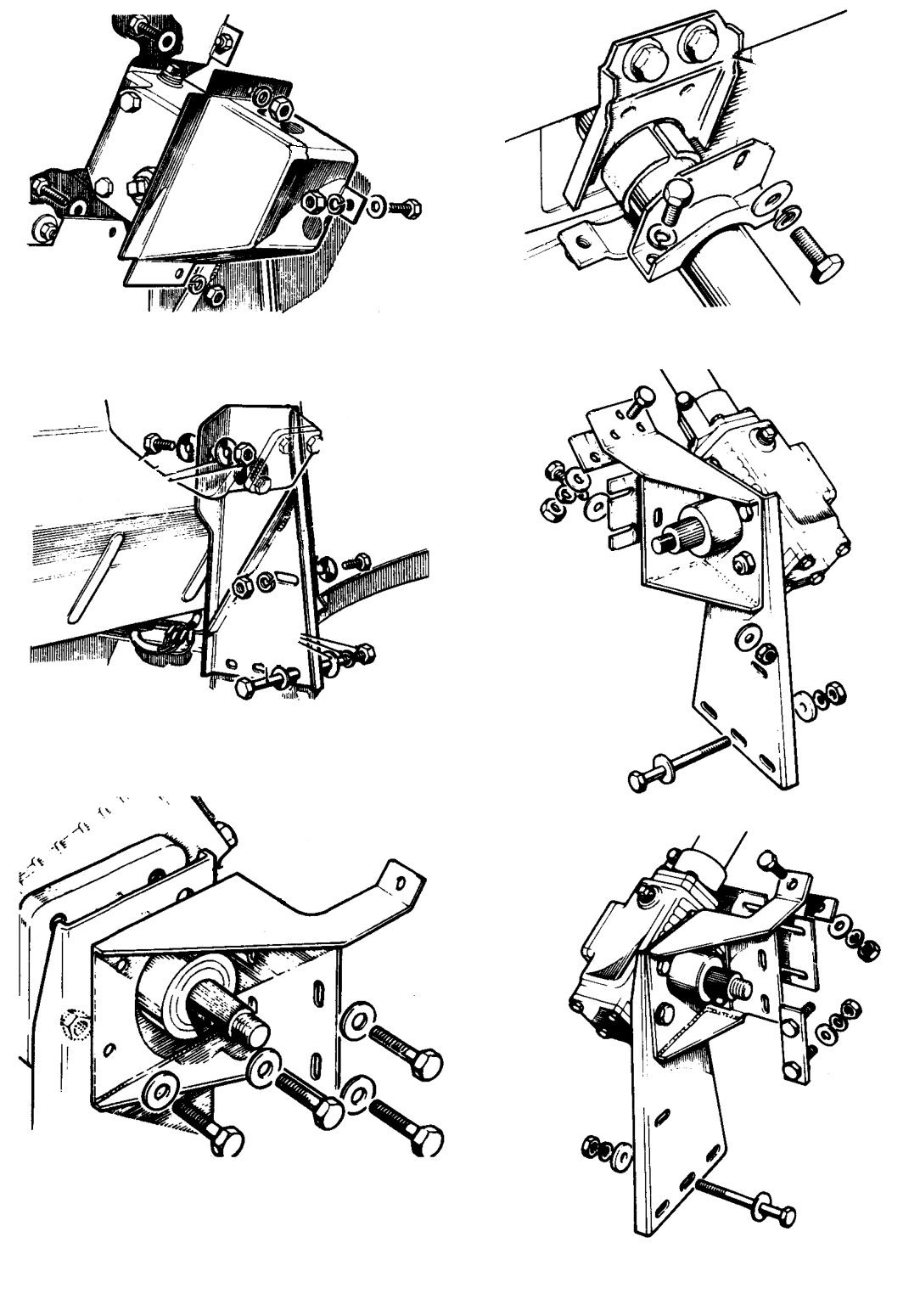

Have the relevant bracket been fitted



Attachments

•
  S3 ST-1.png

  608.7 KB · Views: 10
•
  STER 3-2.png

  362.4 KB · Views: 8

H

hayjoesam

New Member

Posts

5

• Yesterday at 21:05

• #4

mystery said:

Have the relevant bracket been fitted

Click to expand...

Yes, i have all the brackets fitted. I can't see any movement in the brakets themselves, the whole lot moves brackets, steering box and bulkhead. I'll have a good check of all fixings in the morning and report back. Thanks
