Missing TD5 Bellhousing bolt?

Andyrover65

New Member

Posts

4

• Oct 27, 2016

• #1

Hi all,
Been under my 110 td5 CSW on the weekend giving it liberal doses of Dinatrol ML and Waxoil when I noticed a hole in the Bell housing which looks like it should have a bolt in. I have searched on-line for pictures and for a parts break down but to no avail. Can anyone help?



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• Oct 27, 2016

• #2

Drain hole.



Andyrover65

New Member

Posts

4

• Oct 27, 2016

• #3

Thanks for replying Turboman. I thought it might be but there is a lower square headed plug that looks more like a drain?



Brown

Well-Known Member

Full Member

Posts

7,934

Location

East Midlands

• Oct 27, 2016

• #4

The TD5/R380 bellhousing seems to have quite a variety of holes and bungs in it. Mine does. If I were doing a lot of wading I'd plug them all, but for everyday life it doesn't hurt to give it a bit of fresh air.

On another point, your clutch slave cylinder looks very wet over there to the left. Is it leaking, or have you just been bleeding it?



raywin

Well-Known Member

Posts

3,808

Location

North Yorkshire

• Oct 27, 2016

• #5

Andyrover65 said:

Hi all,
Been under my 110 td5 CSW on the weekend giving it liberal doses of Dinatrol ML and Waxoil when I noticed a hole in the Bell housing which looks like it should have a bolt in. I have searched on-line for pictures and for a parts break down but to no avail. Can anyone help?

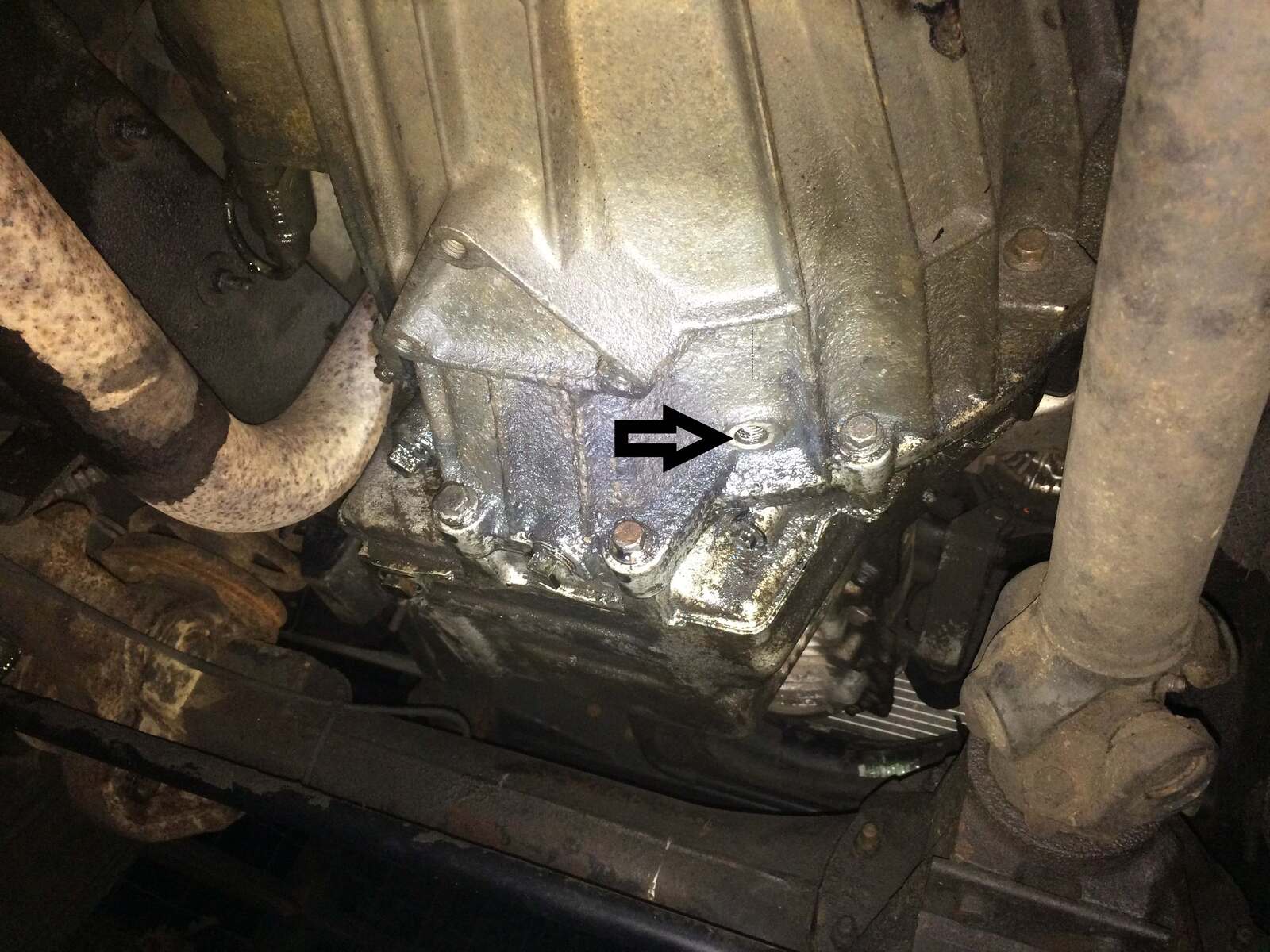

View attachment 109740

Click to expand...

Looks like my typical weekend viewing.
Agree about the slave cylinder if the seals are shot the thing can leak inside and then the drains are necessary, also if you have a weep from the crank shaft seal it ends up in there.



Andyrover65

New Member

Posts

4

• Oct 27, 2016

• #6

Thanks Brown, just checking there wasn't a vital part missing.
Will check the slave cylinder and hoses as it does look a bit wet.



Oldseadog

Well-Known Member

Posts

9,270

Location

Tynemouth

• Oct 27, 2016

• #7

Wading plug threaded hole



Flossie

Well-Known Member

Posts

11,101

Location

Shropshire

• Oct 27, 2016

• #8

That there propshaft uj looks like it hasn't seen grease in a while.?



Al2O3

Well-Known Member

Full Member

Posts

11,024

Location

North of the Wall

• Oct 27, 2016

• #9

Dry joint and dry nipple. Nowt worse



Andyrover65

New Member

Posts

4

• Oct 27, 2016

• #10

Thanks for your comments, better get lubing!
