Military oil cooler

Just opened myself a can of for myself
Anyone got a parts illustration of the military type oil cooler please ?
Like the complete system, cooler, pipes, flexibles. mountings, spacer blocks, sump.
I believe that they were also offered as an optional extra for civvy vehicles
I've got a cooler that's been promised to me, but it's just the bare cooler, no fittings, pipes etc.

https://pablanchard.co.uk/index.php?route=product/search&search=oil cooler will be a good starting point

Rich

Gun7354 said:

https://pablanchard.co.uk/index.php?route=product/search&search=oil cooler will be a good starting point

Rich

Click to expand...

Many thanks !

Hope this helps

kermit_rr said:

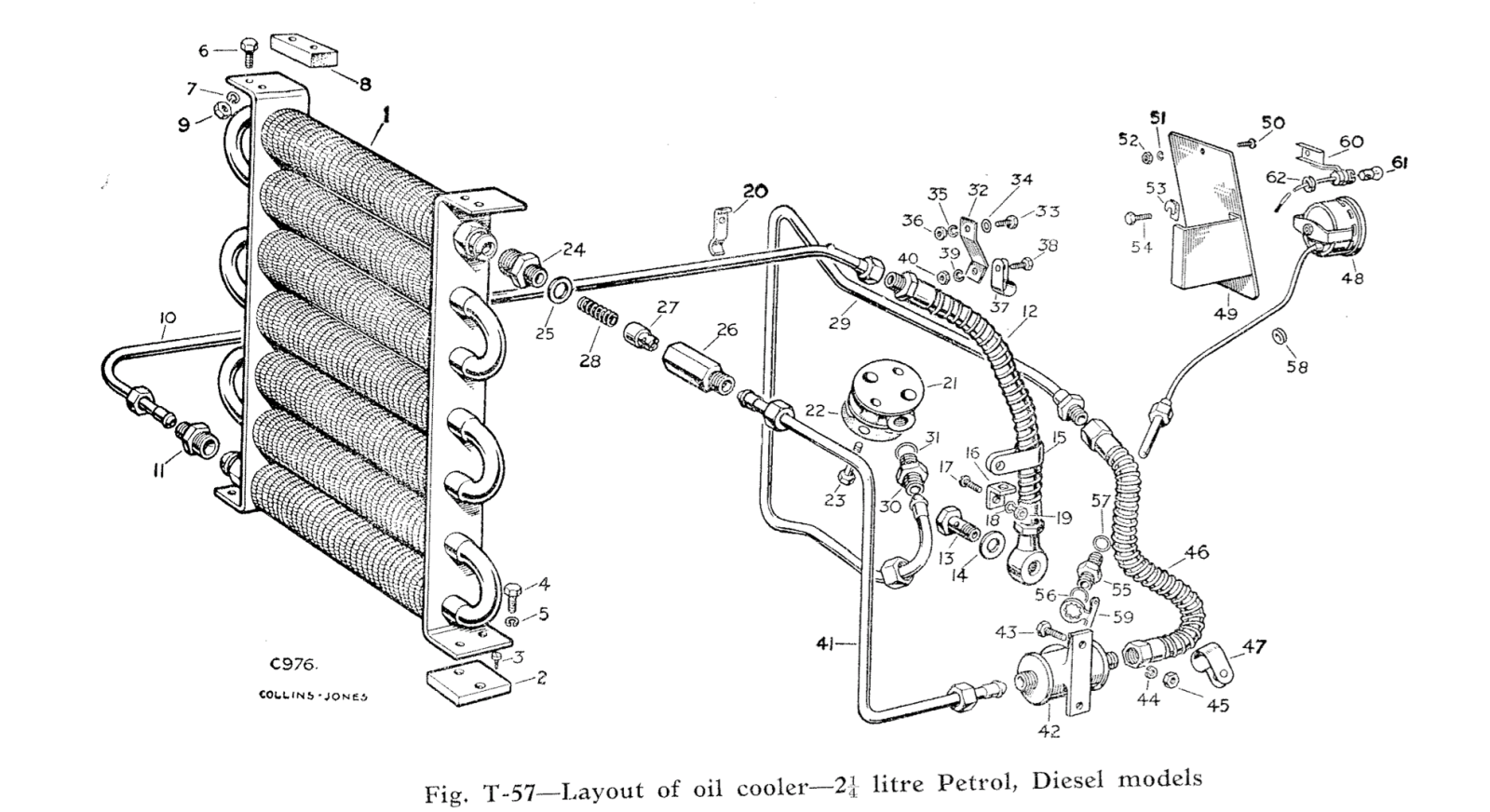

View attachment 327604

Hope this helps

Click to expand...

Excellent. Thank you !
I had all that stuff a while ago.
No idea where it all disappeared to.
I suspect auto jumbles will be the best way to pick up all the bits.
I never realised that there were so many parts

I think there were a couple of different layouts. When I was trying to fit mine to the lightweight it all got complicated.
