MAYDAY Can you lock a D2 into 2WD for emergency?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
M

Marco Polo

Member
Posts
22
Location
New Zealand
As per title. I have one day to get my D2 mobile so I can get to work as Wife has gone away for the weekend with the spare car!
Its a 2000 TD5 and I was underneath doing the oil change and inspected the front prop and Holy S**t one of the UJs is so flogged I can't believe it hasn't exploded yet. Can I remove the front prop and somehow lock the centre diff and drive her as a RWD for a couple days while I get a rebuild kit for it?
My understanding is early D2's have a lockable CD while 01-02 ish don't and D2a does. I am however a numpty and haven't owned her for long so hoping someone can give me a how to without installing a lever in the cabin

bobupndown said:
Would the traction control / abs sensors not go mad with no drive being received to the front?
Click to expand...


It shouldn't have any effect on TC or ABS. They both work on wheel speed at the wheel hubs, nothing to do with the drive to the front axle. If the wheels are turning and at a speed within +/- of the rear wheels then no problem.

On the subject of turning the shaft with a spanner, there's a small spigot on the top and towards the front of the transfer box. if there isn't a spigot then the internals for centre diff lock have not been fitted ...... tough!

bobupndown said:
Would the traction control / abs sensors not go mad with no drive being received to the front?
Click to expand...

brian47 said:
It shouldn't have any effect on TC or ABS. They both work on wheel speed at the wheel hubs, nothing to do with the drive to the front axle. If the wheels are turning and at a speed within +/- of the rear wheels then no problem.
Click to expand...

Yes and no. If the CDL is engaged (CDL illuminated on dash) then the ABS and TC lights will illuminate when ignition is turned on and won't go out (until you unlock CDL, switch her off and re-start)
The TC and ABS will still work, but will be limited.
There is a way to stop this happening, to snip a wire (not sure which one...going into the SLABS ECU IIRC )but if you're just going it as a temporary measure then I wouldn't bother :)

Thanks folks, diff is locked and rebuild kit is on its way to NZ from the UK.

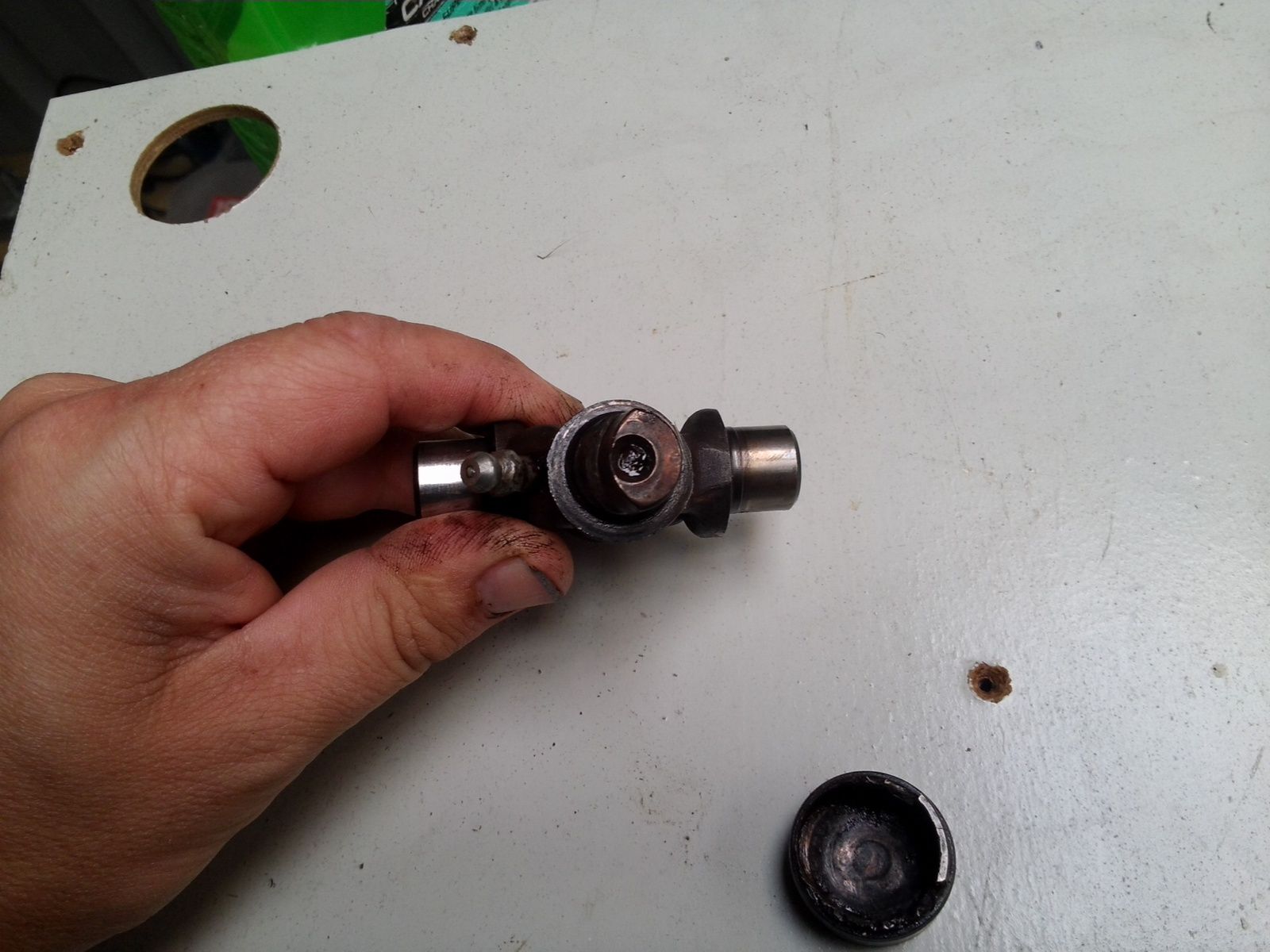

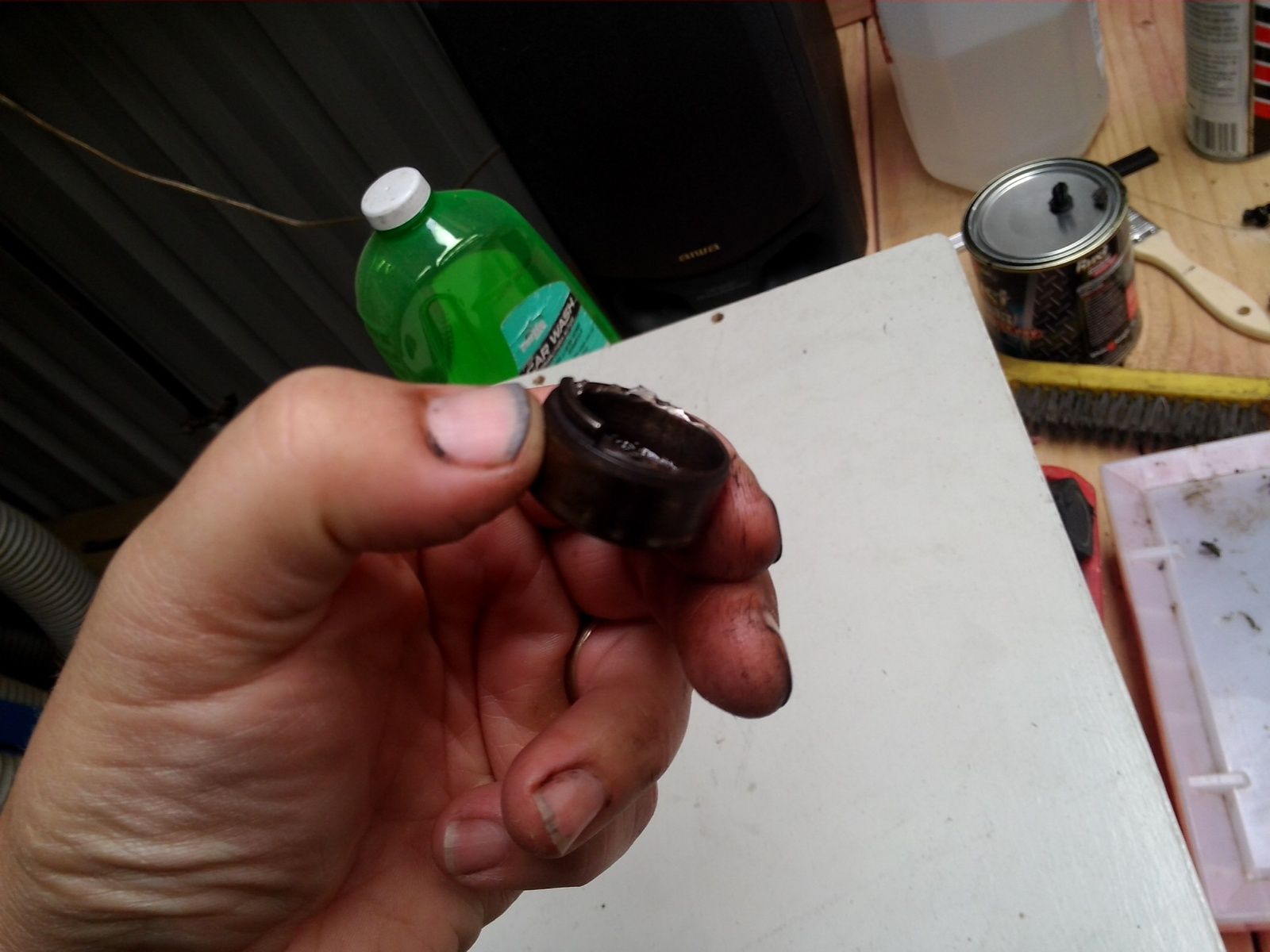

I still can't believe how badly collapsed the UJ on the cardan joint is! There were no unusaual clunks or groans while driving....

A small amount of wear...


Attachments

  • IMG_20150330_100438.jpg
    136.4 KB · Views: 184
  • IMG_20150330_100402.jpg
    179.2 KB · Views: 163
