making brake pipes

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
M

marc.postle

Member
Posts
39
Location
suffolk
So as always, you try and fix you defender and break something else.
Todays job was to replace the bushes in the in the front of the a frame and while undoing one of the bolts, i squashed the brake pipe with my spanner giving me a nice shower.

Question, i've never made new pipes and don't have any of the stuff to do it yet.

Any recommendations or tips for a beginner ? are they all standard size and thread fittings pipe diameter etc?

Thanks in advance!

marc.postle said:
So as always, you try and fix you defender and break something else.
Todays job was to replace the bushes in the in the front of the a frame and while undoing one of the bolts, i squashed the brake pipe with my spanner giving me a nice shower.

Question, i've never made new pipes and don't have any of the stuff to do it yet.

Any recommendations or tips for a beginner ? are they all standard size and thread fittings pipe diameter etc?

Thanks in advance!
Click to expand...
Standard size 3/16”
Use Kunifer and not copper and get one of these. Practice the flares on some bits of pipe and away you go.

Pretty basic stuff, have a look at the You tube. Several video's on "how to" also showing the different kits available. Good one's by Britannica restorations ltd. As above do some free practice before making actual ones.
What year is your Landy?

marc.postle said:
Thank you both, and i take it i need to get the metric m10 x 1 fittings?
Click to expand...
That is why I was asking about year. In 1980 Land rover said they were going metric and some stuff was but not all. Now for some reason My 1990 Ninety has imperial brake fittings [I have owned it from near new so no one has cobbled it] Why ? when others from the 80's are metric! Tdi on should all be metric.

tottot said:
That is why I was asking about year. In 1980 Land rover said they were going metric and some stuff was but not all. Now for some reason My 1990 Ninety has imperial brake fittings [I have owned it from near new so no one has cobbled it] Why ? when others from the 80's are metric! Tdi on should all be metric.
Click to expand...
Sorry, i didn't see that last bit, must still have brake fluid in my eyes 🤣
It's 1996 300tdi

SAE FOR OLDER DIN FOR NEWER


For a male thread, ie for screwing into the caliper, it's a convex flare (or first/single operation). This gives the "domed" part on the brake pipe itself to create a sealing face when inserted into the caliper. The T piece will require these fittings too as it's an all female T.


A concave or second/double operation flare is required when you have a female brake fitting on the brake pipe, eg for attaching onto the threaded part of the flexi hose.

meego said:
Standard size 3/16”
Use Kunifer and not copper and get one of these. Practice the flares on some bits of pipe and away you go.

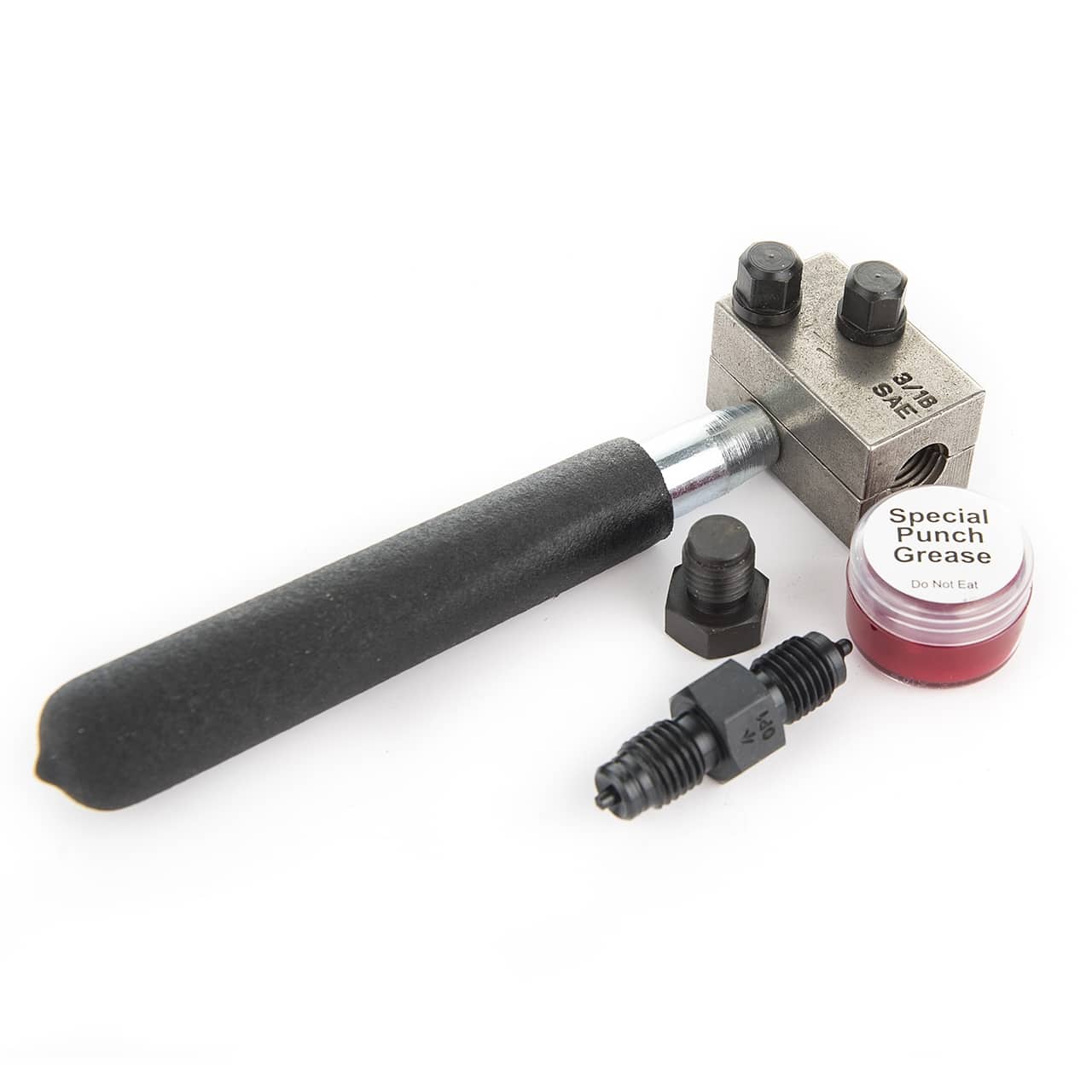

View attachment 338343
Click to expand...
meego said:
Standard size 3/16”
Use Kunifer and not copper and get one of these. Practice the flares on some bits of pipe and away you go.
View attachment 338343
Click to expand...
Actually get this one. I struggled for a long time (years) with the cheap multi piece sets you get with the little round dies. When I eventually gave up and got this one I was cursing myself for not spending a little more and getting this one first time around. It is much easier to just and gives a much better finish!

Spend a bit of time routing the pipe nicely, nothing looks worse than a poorly bent and routed pipe.
The straight bits are actually the hardest to get looking nice.

lynall said:
Spend a bit of time routing the pipe nicely, nothing looks worse than a poorly bent and routed pipe.
The straight bits are actually the hardest to get looking nice.
Click to expand...
I bought one of those pipe straighteners that is basically a tube with a plastic guide at each end. It’s crap.
