lucas wipermotor switch

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
J

john deere

New Member
Posts
1
Hi i have got a lucas single speed wiper motor with park, i am looking to find where the wires go on the switch. Pics attached, can anyone help?


Attachments

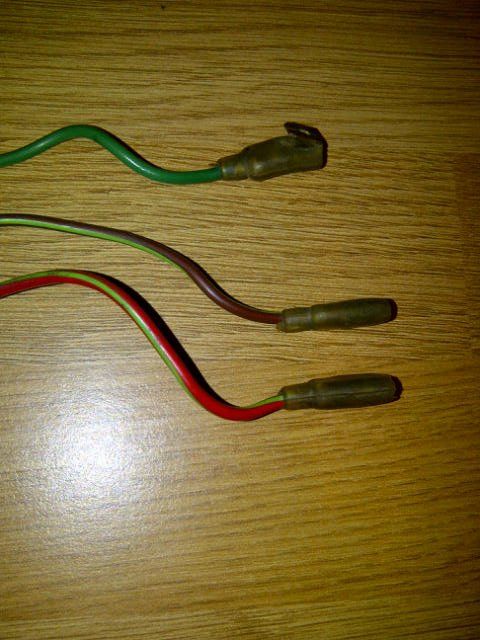

  • IMG-20121216-00362.jpg
    56.9 KB · Views: 171

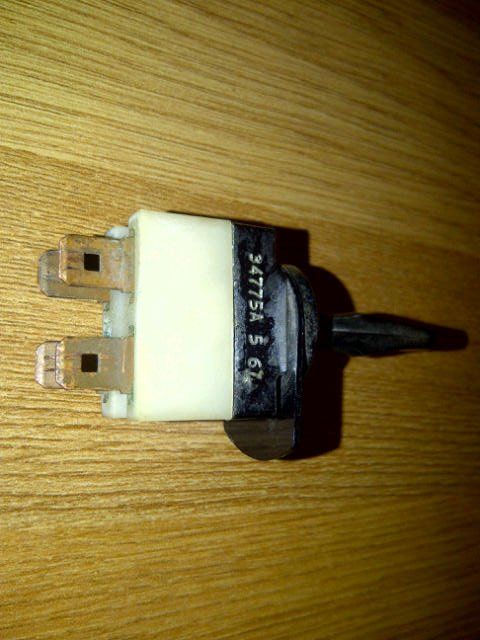

  • IMG-20121216-00363 (1).jpg
    IMG-20121216-00363 (1).jpg
    47.7 KB · Views: 197
One of them will be permanently live for your park, another will only be live when the wipers are on, and the third is the feed for the switch.

Have you got a multimeter to check them out?
