Hello fellow members
Today I removed my TC because It started to leak oil dramatically.
I’m pretty sure it is the well known intermediate shaft is leaking.

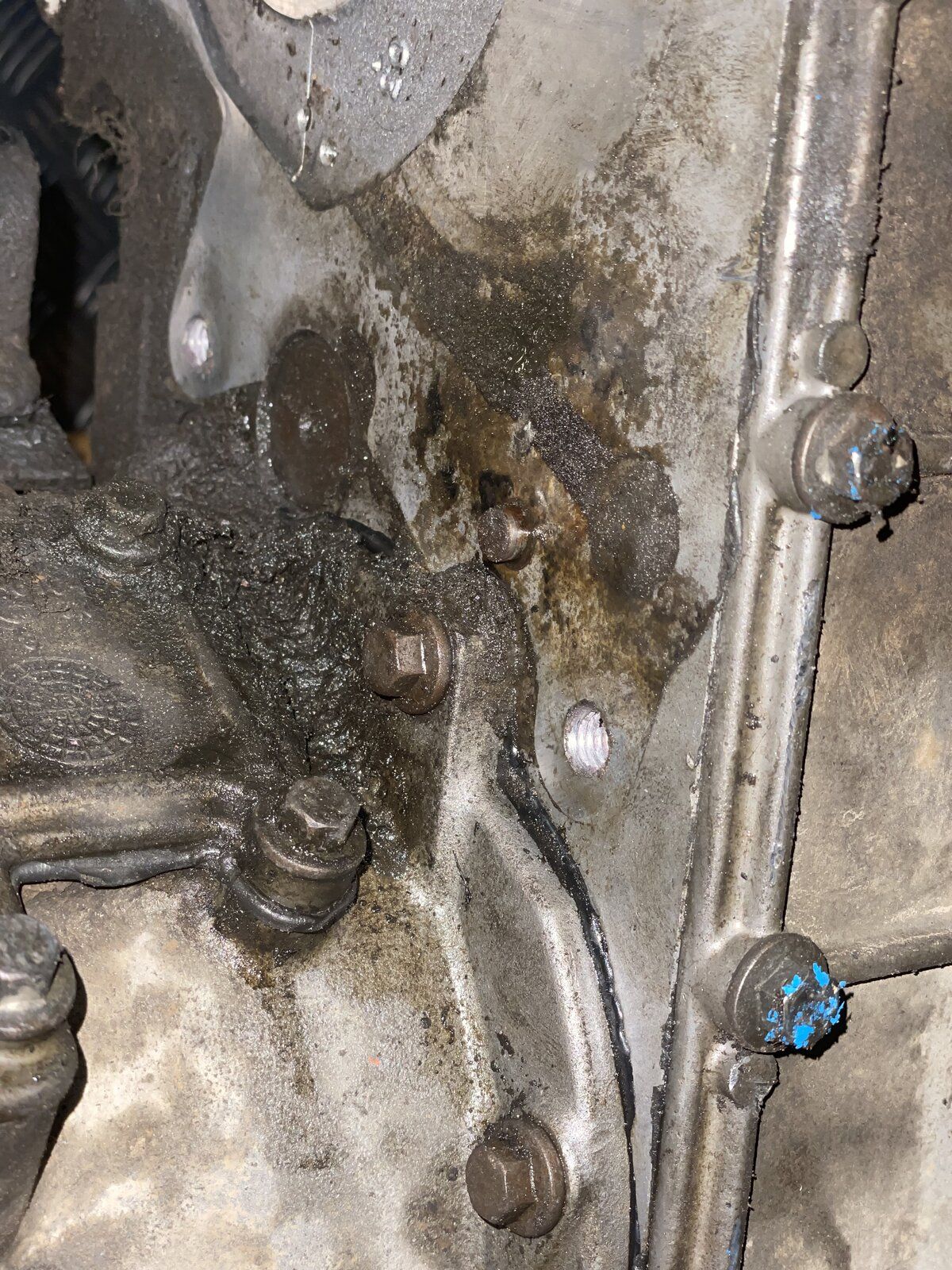

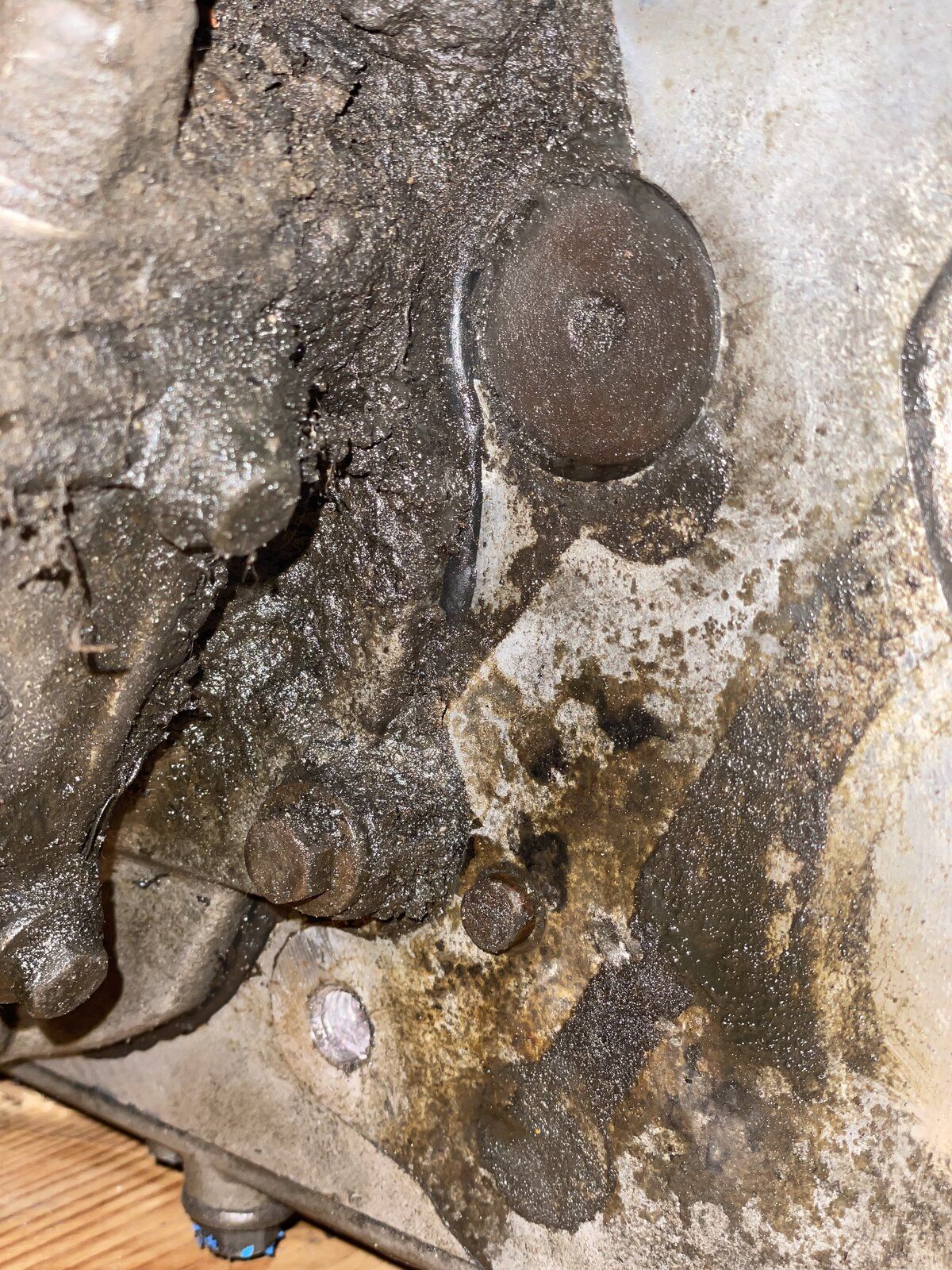

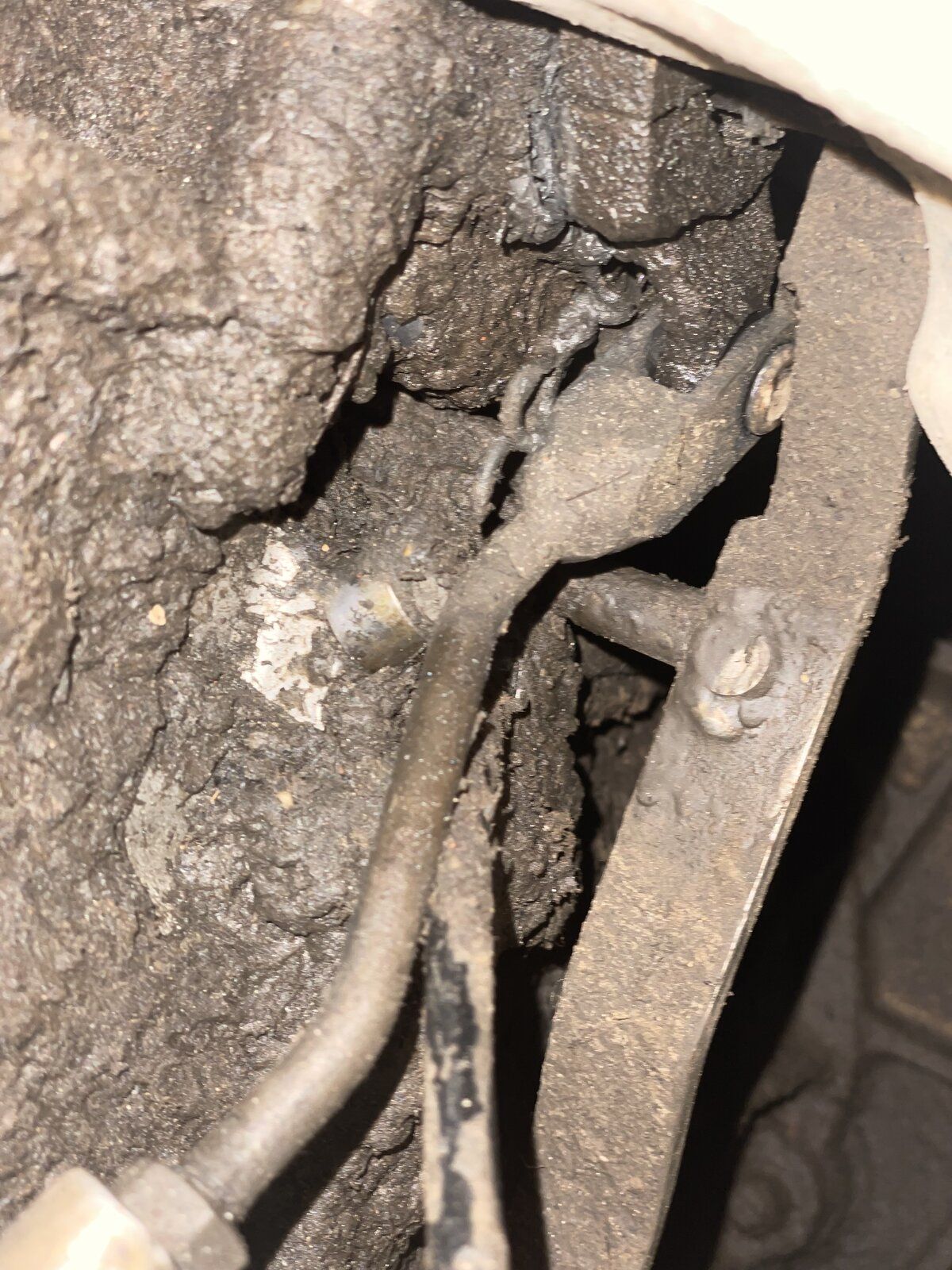

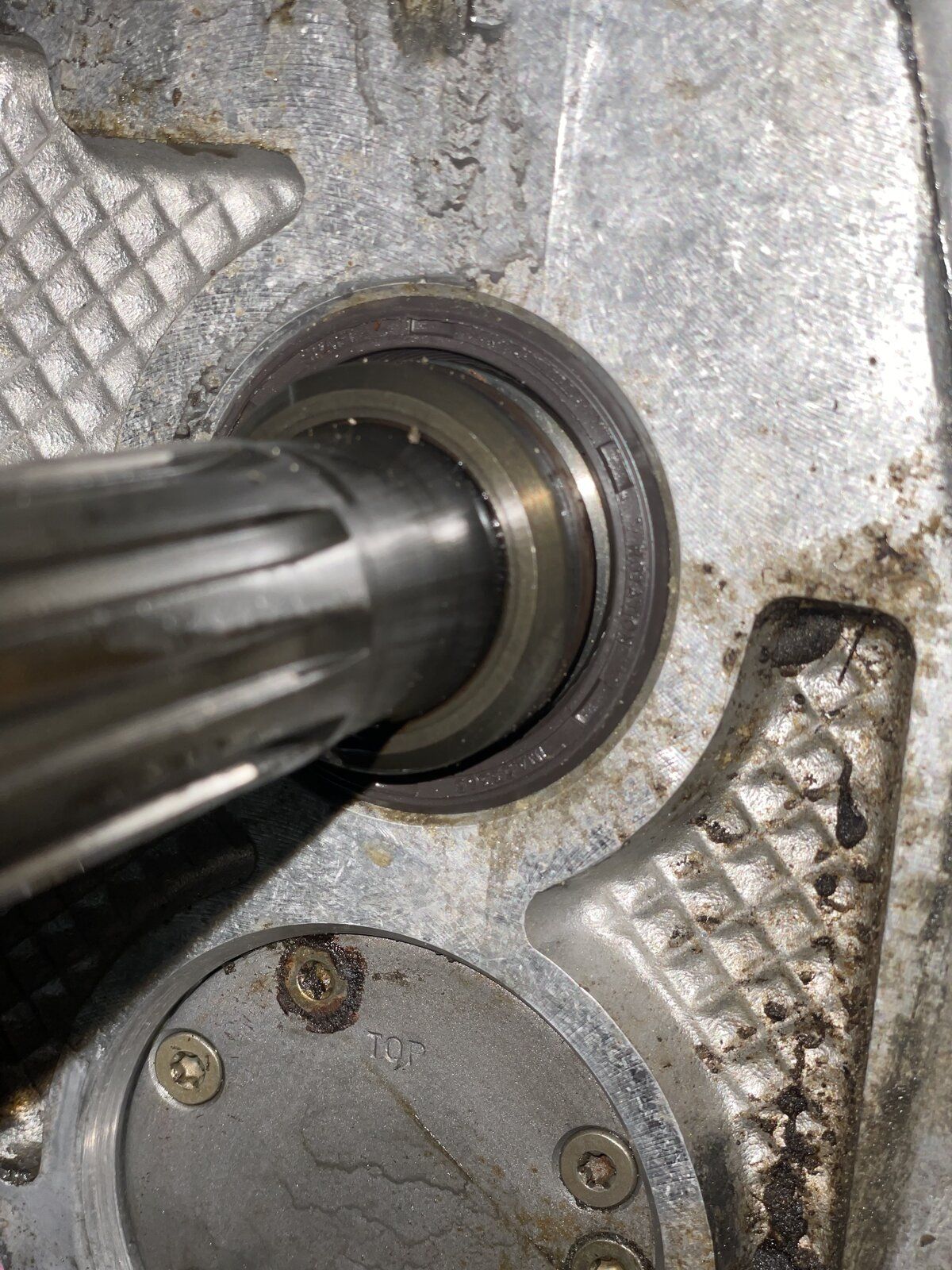

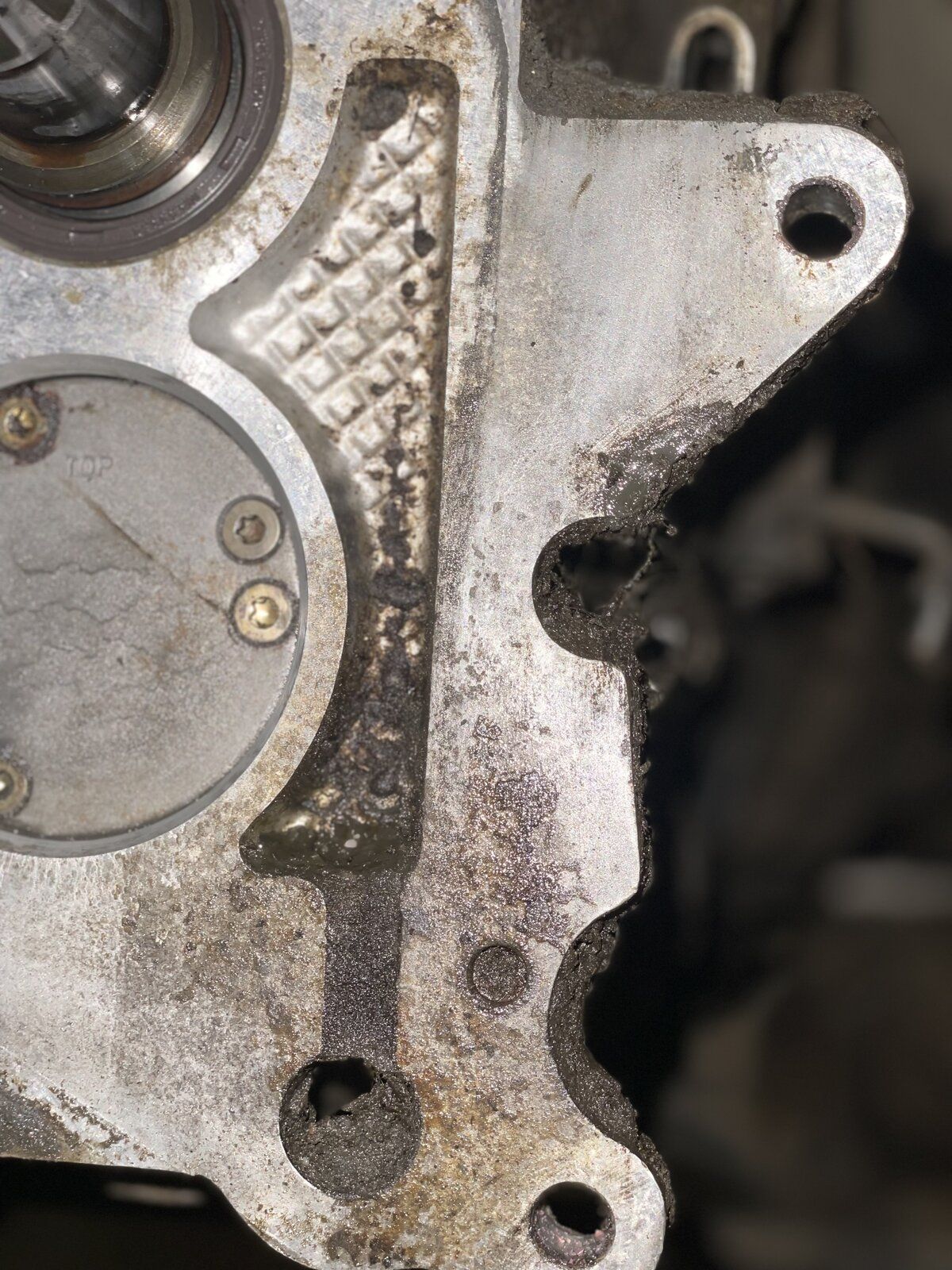

After removing the T case it looked like this: (1st 4 images)

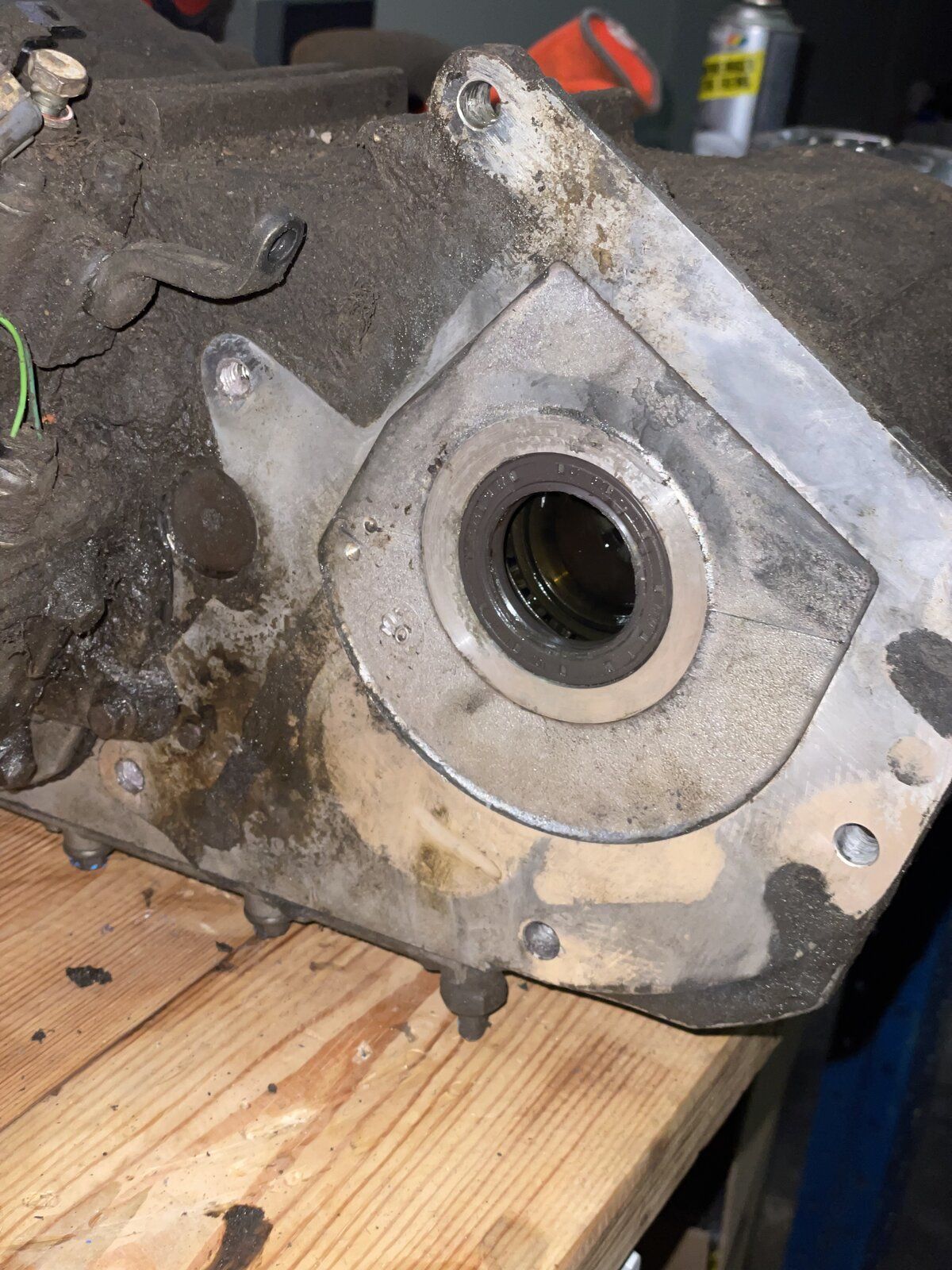

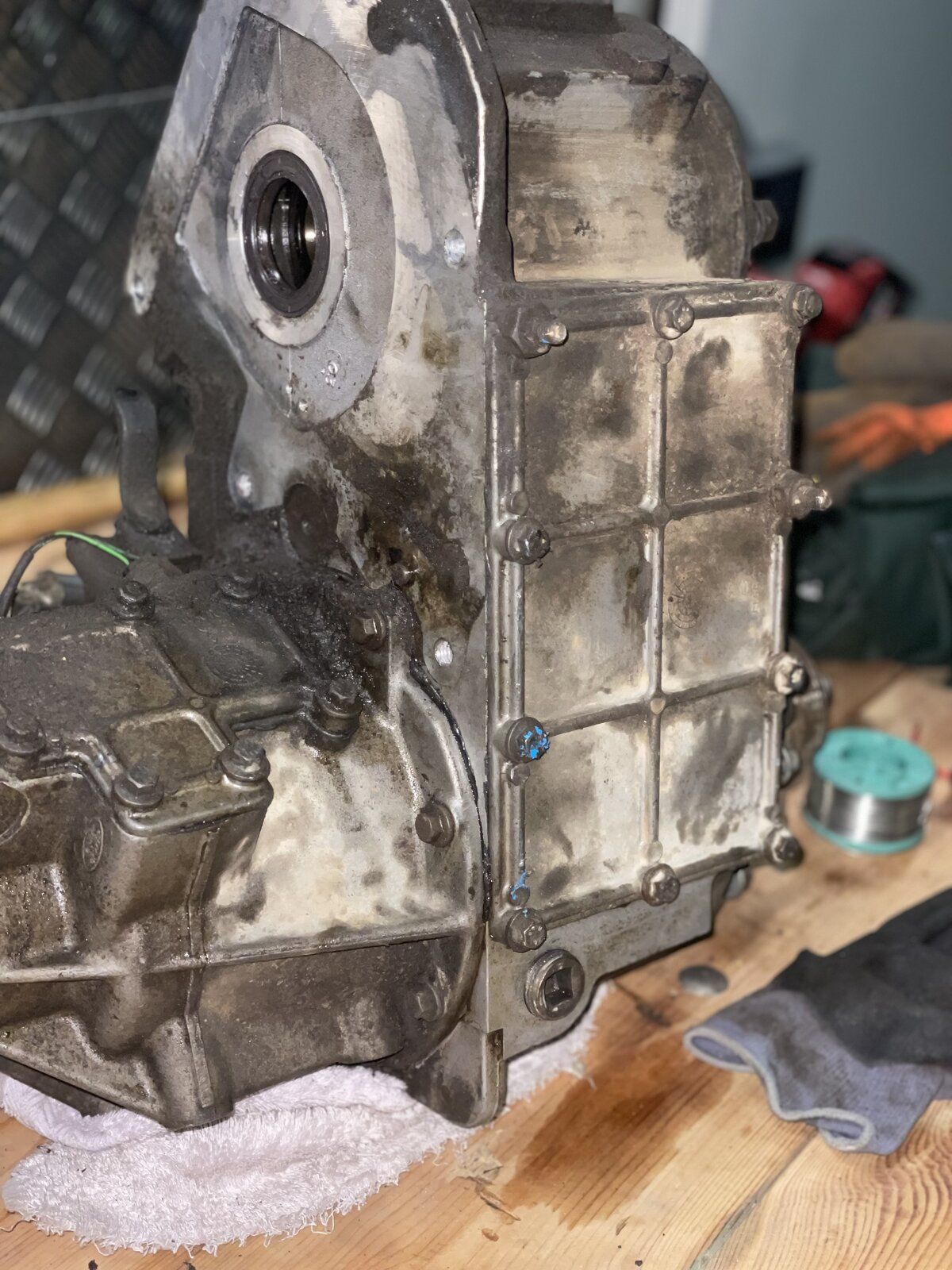

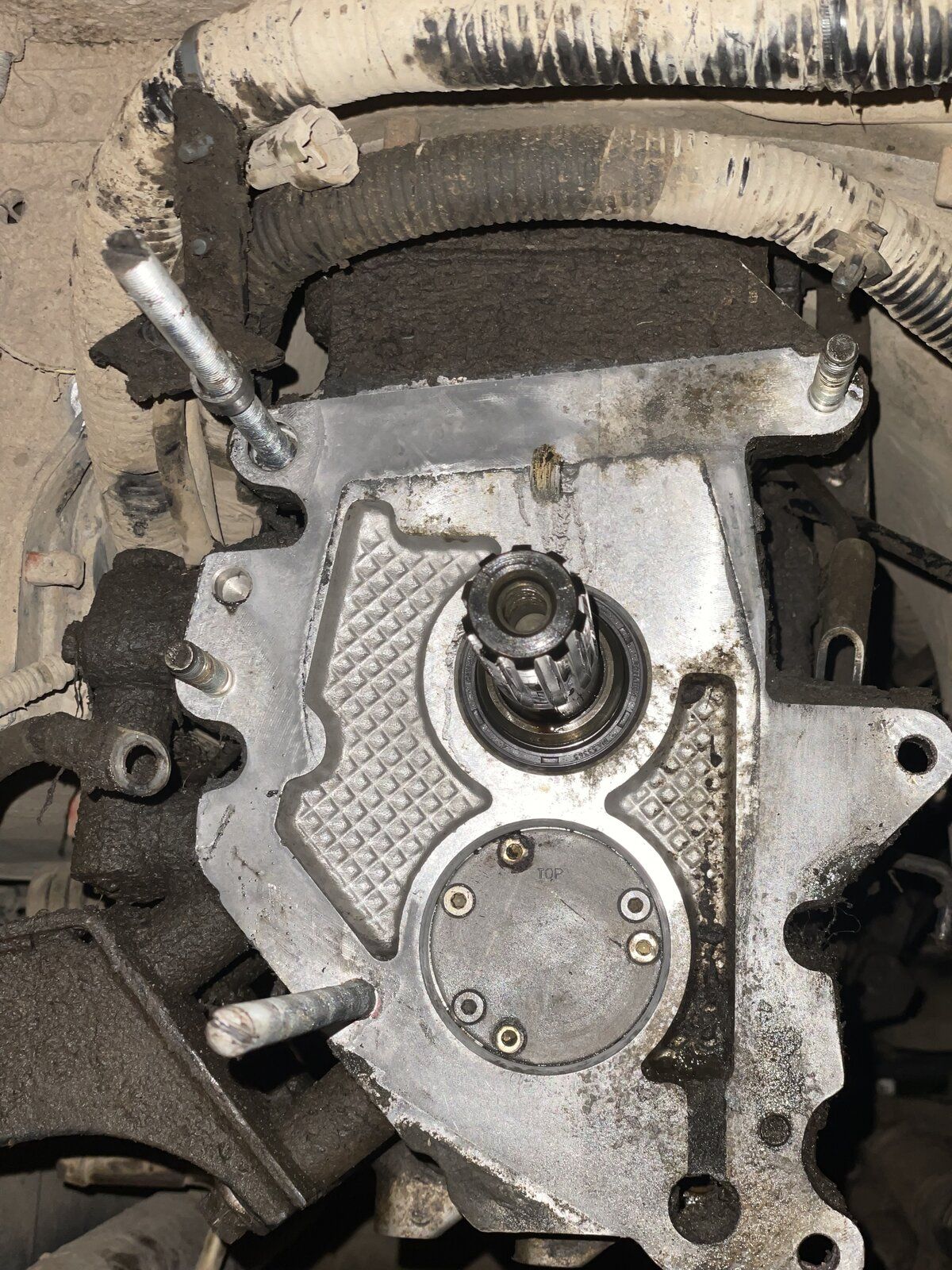

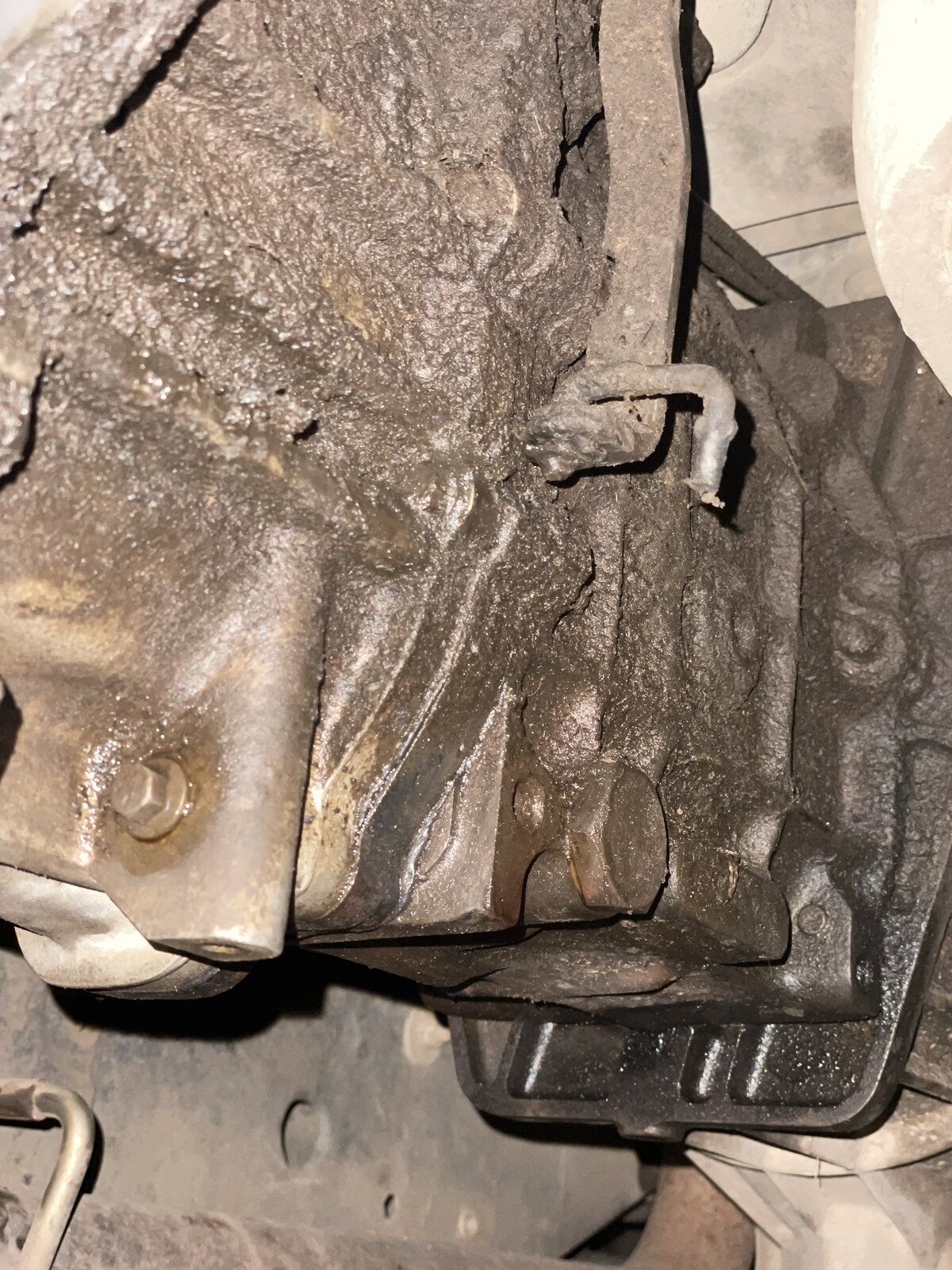

The rear of the gearbox(R380) looks like this: 5th to 8th picture
Can it be that the IS leak goes inbetween the mating surfaces of the gearbox & transferbox?
The output shaft seal on the gearbox looks fine, the same goes for the input shaft seal of the TC. (going to replace them anyway)
I also noticed that the linkage arms of the gearbox are wet & it seems that oil is coming down from above..
Any idea what the cause/ failure of this could be?
(9th and 10th picture)
