land rover series diesel stop cable

scrappyloz · Sep 18, 2011

Can some body tell me or show me a picture of how the land rover series diesel stop cable attaches to the fuel pump. I know that it attaches to the small lever at the bottom of the pump but what bracket does the cable attach to because i think mine is missing

lynall · Sep 19, 2011

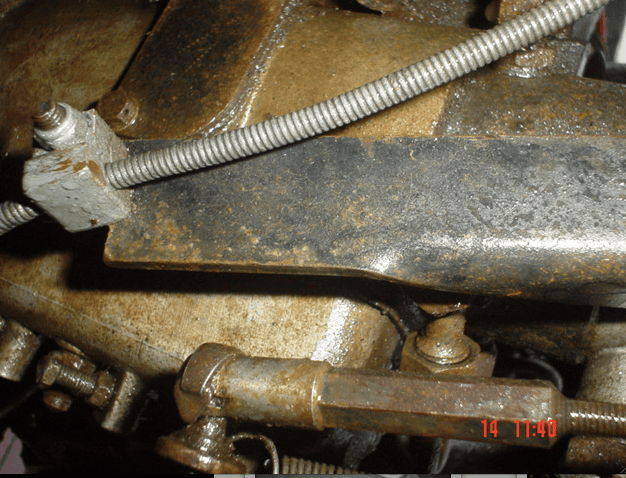

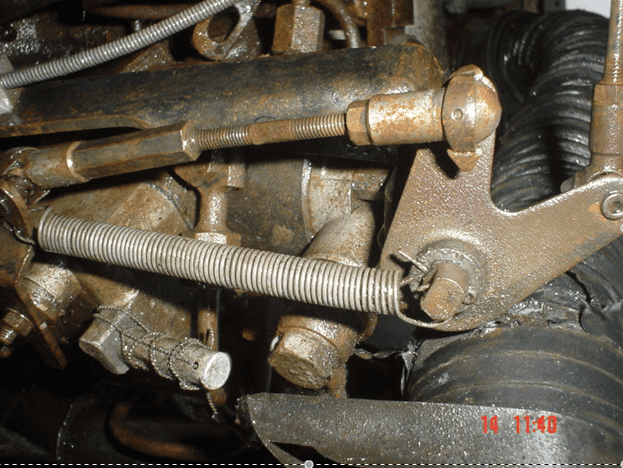

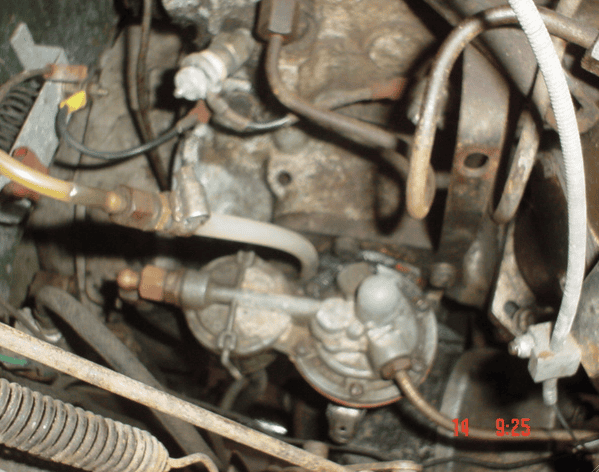

Crap pics but may help?
On mine the plate that fixed to the top of the inj pump that holds the throttle linkage etc also had a drop down plate all as one assy, this is on a s2 so might not be relevant

Lynall

scrappyloz · Sep 19, 2011

Thanks. Yours is a non steering lock cable.

I only have one bracket which is L shaped and holds the throttle return spring and the other hole is too far way for the cable to reach.

rog8811 · Sep 19, 2011

I am not sure if this is much better......

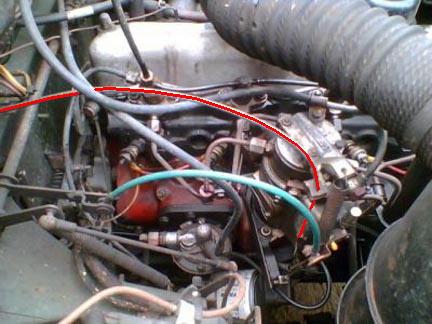

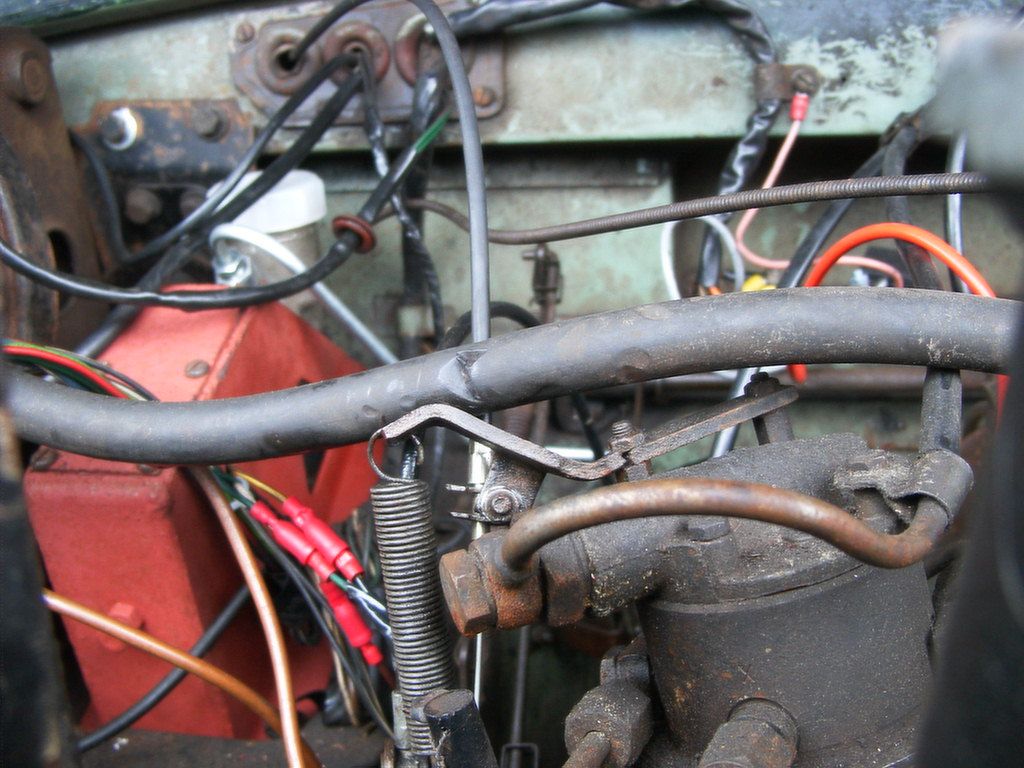

picture one stop cable in red, second picture shows the cable outer fixed to the tag that drops down from the bar across the top of the pump

scrappyloz · Sep 20, 2011

Ahhh i see what part im missing now. I have the bracket that bolts to the top of the pump (is cracked in picture 2) but i am missing the small bracket that bolts to that bracket which holds the cut off cable. Does any one have one of these little parts for sale regards

lynall · Sep 20, 2011

If no joy i can post the little clamp bit to you and you can make a bracket to suit
Pm me your address if you want it foc

Lynall

rog8811 · Sep 21, 2011

I have the bracket that bolts to the top of the pump (is cracked in picture 2)

Old picture, bar is now repaired
