L322 rear door card wiring

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
M

Mid-life-crisis

Active Member
Posts
116
Location
Northern Ireland
2002 L322 3.0 tdi
I've been fiddling with the rear doors (there's a speaker knackered) and the passenger side window is haunted.

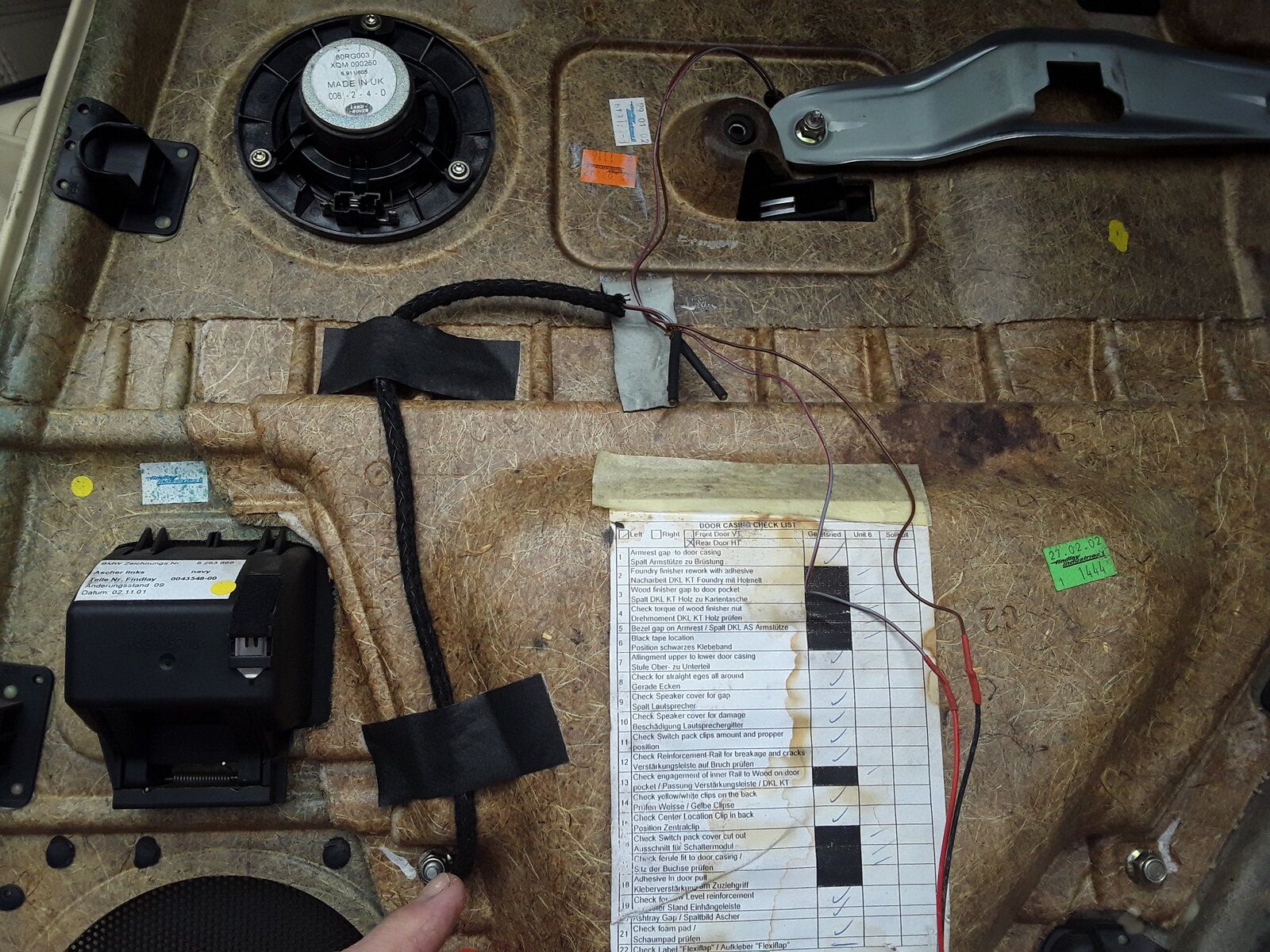

Anyone got any idea what the cable I'm pointing to in the photo is for?
There's a 2 pin in-line plug / socket break and the two wires are then spliced into two pairs. One pair goes through the card towards the door opening handle. The other pair (that I'm pointing to) goes through the card just beside the bolt that holds the top of the side pocket trim.
Any ideas?
y

Someone had cut the plug off and the wires were just hanging, so I put the 2 sleeved joints on to allow me to connect to the loom again (I copied the other door)
I just don't know what the wires going through the door card are for
