L322 2004 suspension and diagnostic

D

Damo88

Member

Posts

26

Location

Manchester

• Apr 17, 2022

• #1

Evening all

after doing some minor work on my l322 2004 4.4 v8

my last job is now come the rear suspension seems to sit higher than the front

I’ve set to its lowest mode then highest and back to ride height but still seems high at the rear. Any suggestions also what’s the best diagnostics to buy for these any recommendations as I know there is a few?



T

tomcat59alan

Well-Known Member

Posts

18,611

Location

wirral and triquivijate

• Apr 17, 2022

• #2

Damo88 said:

Evening all

after doing some minor work on my l322 2004 4.4 v8

my last job is now come the rear suspension seems to sit higher than the front

I’ve set to its lowest mode then highest and back to ride height but still seems high at the rear. Any suggestions also what’s the best diagnostics to buy for these any recommendations as I know there is a few?

Click to expand...

What work have you been doing?have you left the wheels hanging?



D

Damo88

Member

Posts

26

Location

Manchester

• Apr 17, 2022

• #3

No nothing like that , air flow meter replaced , xyz switch cleaned , steering wheel buttons removed to clean up and refit

I’ve had the car for two weeks and it’s been like this since I’ve owned it but now you mention it the car has 3 brand new tyres on it so I wonder if they’ve damaged the switch



marjon

Well-Known Member

Full Member

Posts

16,667

Location

Bulgaria

• Apr 17, 2022

• #4

Are you sure it’s not low at the front.

We have the IID gap it’s expensive but good (2011) there are others that cover yours that will calibrate suspension, Some are a lot cheaper, think inpa bmw diagnostics is mentioned too but not sure it does suspension.
@backinblack .

J



D

Damo88

Member

Posts

26

Location

Manchester

• Apr 17, 2022

• #5

it’s definitely sat right at the front I bet the gap at the rear is about an 2.5inch higher than the front



backinblack

Well-Known Member

Full Member

Posts

6,162

Location

North Manchester

• Apr 17, 2022

• #6

My Foxwell has calibrated mine many times but it is the older NT510pro, I believe the newer NT530 works but some have had issues with it as have Snapon diag owners.

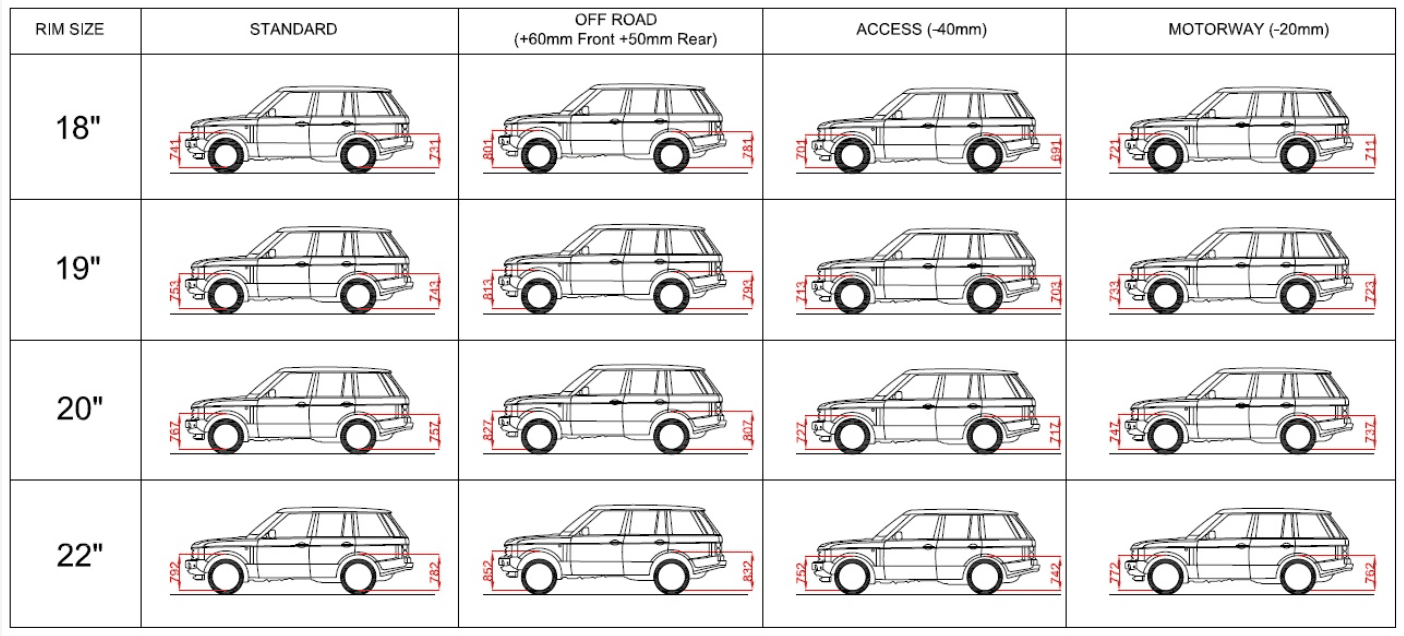

Have you checked against this table to see which are out?
If the suspension is working then probably just needs calibrating



backinblack

Well-Known Member

Full Member

Posts

6,162

Location

North Manchester

• Apr 17, 2022

• #7

marjon said:

Are you sure it’s not low at the front.

We have the IID gap it’s expensive but good (2011) there are others that cover yours that will calibrate suspension, Some are a lot cheaper, think inpa bmw diagnostics is mentioned too but not sure it does suspension.
@backinblack .

J

Click to expand...

I have the BMW 1.4.0 scanner but have only used it to recode an LCM, I tried the inpa but it won't work with dongle for BMW scanner



K

kds

Well-Known Member

Posts

2,260

Location

old,ugly, tired in Lincoln.

• Apr 18, 2022

• #8

My self and @dwarfer ( yes he`s still alive spoke to him couple days ago) have the nt530 and all it managed to do suspension wise is stuff it up, on the other hand BMW inpa and the correct lead did adjust heights on 2004/5, knowing which buttons to press is the problem as its not obvious.
