Is this the diesel pump

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
S

Stu63

Member
Posts
93
On a W reg 2.5, if so it's leaking
I've got a photo but won't upload.... looking in from the front and right under the alt at the right side of the block, it's that the fuel/ diesel pump if so it's leaking.

Stu63 said:
On a W reg 2.5, if so it's leaking
I've got a photo but won't upload.... looking in from the front and right under the alt at the right side of the block, it's that the fuel/ diesel pump if so it's leaking.
Click to expand...
Under the Alternator,isn't that the power steering pump? The injection pump is more to the rear of the alternator and under the inlet manifold.

The injection pump is what the clear pipe is connected to, certainly not under the alternator.


Attachments

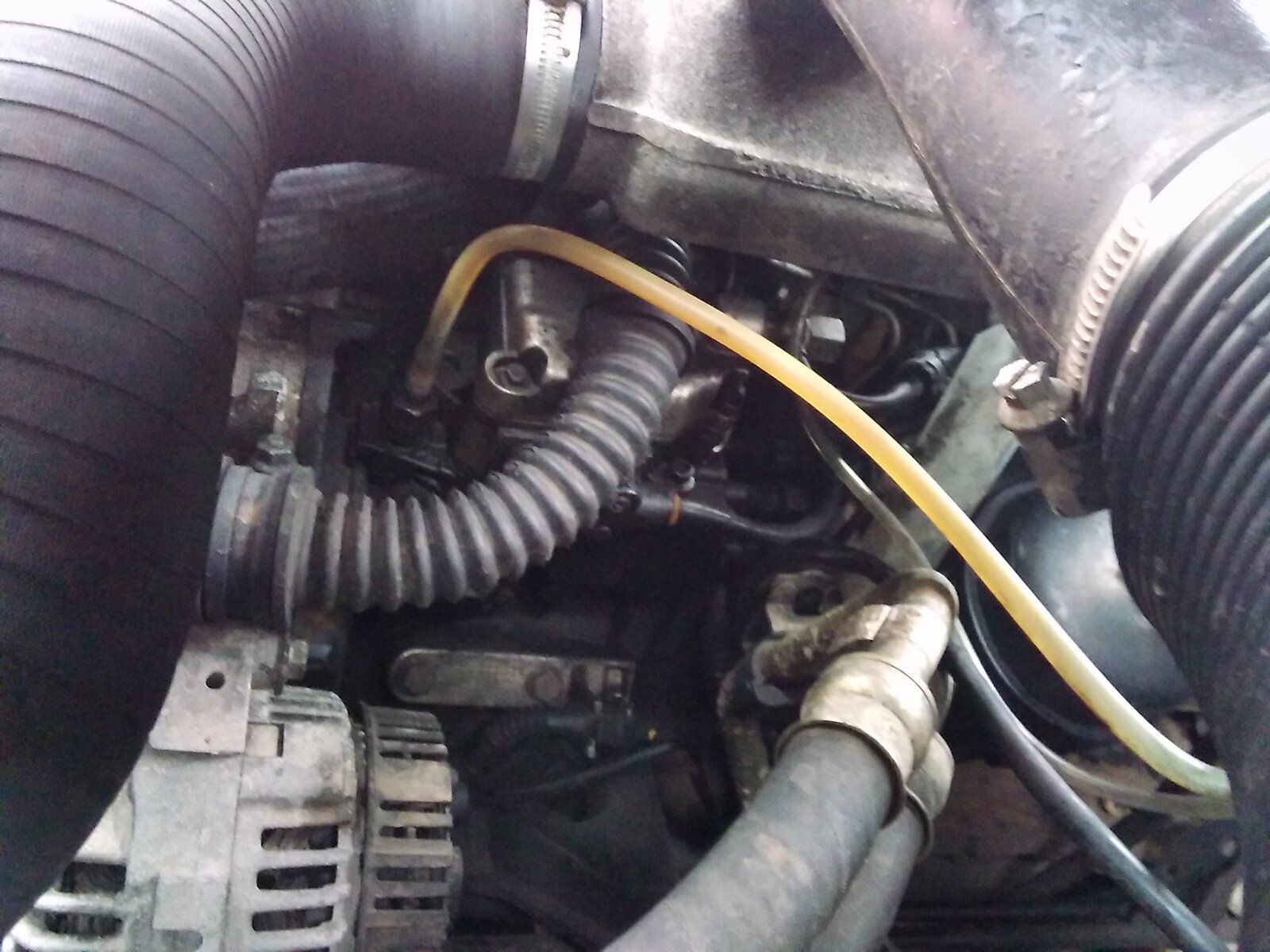

  • IMG_20210320_101633.jpg
    229.1 KB · Views: 96
How does the engine start ,Does it take a bit o cranking then a bit of white smoke ,from cold.. or is it on the button ,the first symptom could be a leaking return pipe on the rear of the pump if it starts right up pump seals:eek:...

tomcat59alan said:
The injection pump is what the clear pipe is connected to, certainly not under the alternator.
Click to expand...

What is it then

Karlos the jackal said:
can you post the video?
Click to expand...

I tried

dubbleRR said:
How does the engine start ,Does it take a bit o cranking then a bit of white smoke ,from cold.. or is it on the button ,the first symptom could be a leaking return pipe on the rear of the pump if it starts right up pump seals:eek:...
Click to expand...

Right away with no smoke

So maybe leaking return pipe at the pump, but it's coming from what ever's under the alt.

It's the bloody pump i saw it now and think it's coming from the base, I've got a leak at number 1 pipe but not enough to run down.

So yes thanks for the link I'll see about putting seals in well either that or sell it for spares or scrap it.

Stu63 said:
It's the bloody pump i saw it now and think it's coming from the base, I've got a leak at number 1 pipe but not enough to run down.

So yes thanks for the link I'll see about putting seals in well either that or sell it for spares or scrap it.
Click to expand...
I've had a leak on mine got the seal kit and replaced the top 2 O rings and the head one now no leaks at all from it
my advice is watch the video and read everything twice just to get head around it all and take your time replacing them

Stu63 said:
It's the bloody pump i saw it now and think it's coming from the base, I've got a leak at number 1 pipe but not enough to run down.

So yes thanks for the link I'll see about putting seals in well either that or sell it for spares or scrap it.
Click to expand...
Number 1 injector is the only one with a cup in the head casting that allows diesel to accumulate around the injector.Read the guide and make sure you understand it before you proceed otherwise you will be in a world of hurt.;):D

Again thanks chaps

Yes I'll give it a go it's leaking anyway so can't make it any worse surely.

Once thing though is the timing of I'm rebuilding it all, I started watching a vid last night feel was to tired, I'll watch it later on how he timed it.

I've rebuilt the compressor but that's a doddle compared to this but as you say and I know too.... patience ect. I'll just get a good work area ect and see how it goes.
And yes I really appreciate all the help from here

Stu63 said:
Again thanks chaps

Yes I'll give it a go it's leaking anyway so can't make it any worse surely.

Once thing though is the timing of I'm rebuilding it all, I started watching a vid last night feel was to tired, I'll watch it later on how he timed it.

I've rebuilt the compressor but that's a doddle compared to this but as you say and I know too.... patience ect. I'll just get a good work area ect and see how it goes.
And yes I really appreciate all the help from here
Click to expand...
Putting in your location may prove fruitful. The pump can be resealed Insitu but special tools required to remove and retime the pump.
