Is this a problem? (gearbox casing question)

samc88 · Nov 19, 2013

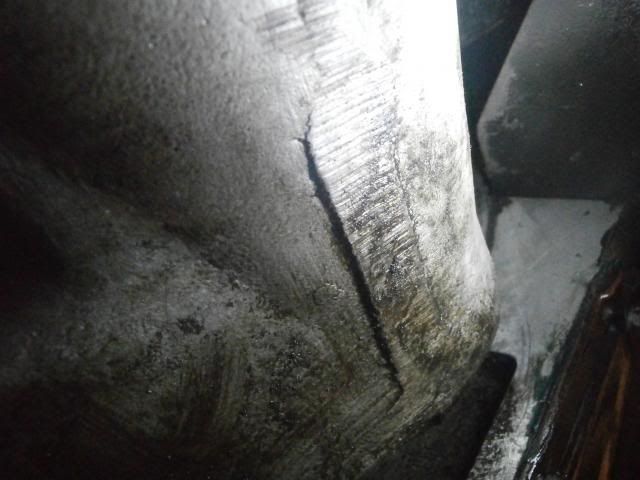

Looks like a crack in the actual casing casting where its opened up on the casting mark in the middle of the box. Oil seems to be slowly spreading from that location, may JB weld it to seal it or something. What do you guys think?

Its been there a while or must have been there a while as the land rover has only moved from the garden to the garage (about 30ft in 4 years) and we havent dropped it or anything and was running well when my granddad had it so can't forsee any internal probs that may have caused it

The oily stain on the box seems to be coming from it

The Mad Hat Man · Nov 19, 2013

could be welded - with care

jamesmartin · Nov 19, 2013

they often have casting marks like that , though if its leaking it could be sealed ,though are you sure oils not running back from front seal or gasket where it joins main case

samc88 · Nov 19, 2013

It just looks like a crack with the bit at the end and its different to the other casting marks on the box. Will double check about the oil but I'm sure its coming from here

samc88 · Nov 19, 2013

Would JB weld be okay to seal it?

I dont want to risk any damage caused by welding especially as we dont do a lot of it and hardly ever on cast stuff

jamesmartin · Nov 19, 2013

samc88 said:
Would JB weld be okay to seal it?

I dont want to risk any damage caused by welding especially as we dont do a lot of it and hardly ever on cast stuff

fine but would need careful cleaning with brake cleaner etc

samc88 · Nov 19, 2013

Ok thanks James

I think we have some of that in the shed, will drain the oil out the box first (could probably do with a change anyway) and give it a good clean beforehand

SpringDon · Nov 19, 2013

After its clean, it may be worth heating with a blowtorch to see if any more oil sweats out.

ben waine · Nov 20, 2013

Ought be worth doing the deep clean, just to be sure it's actually the cause of the oily stain?

Rattlegun · Nov 20, 2013

I think it's an illusion caused by where a rough bastard file type thing has pushed the alloy over when filing down that casting sprue.

'bastard' is a type of file

ronsealdeath · Nov 20, 2013

Rattlegun said:
I think it's an illusion caused by where a rough bastard file type thing has pushed the alloy over when filing down that casting sprue.

'bastard' is a type of file

Yeah I had trouble tracing oil leaks on my box (er it was the engine in the end!) and it would be wise to keep the box full of oil, do a pressure wash followed by a paraffin or other suitable solvent clean over that area, then leave it for a week or so. If it runs, maybe bring it up to temp so you get the oil thinner. Then see if it shows any weeping of oil.

If required you can the seal it up with moist weetabix left to dry (what JB weld actually is).

Rattlegun · Nov 20, 2013

So that's why I can't get the kids old weetabix off the dining table???? it's like bloody iron!

ronsealdeath · Nov 20, 2013

Rattlegun said:
So that's why I can't get the kids old weetabix off the dining table???? it's like bloody iron!

Haha I have to get it off my tv screen!! Sacrilege.

samc88 · Nov 23, 2013

Did a check today and as James said it was a casting mark and its the gasket thats leaking (although not a lot at all so will leave for now). And as rattlegun said it was an illusion where the oil had run up to the step in the casting looking like a crack

Very pleased about that
