I have purchased another 90 and sorted most of the wiring issue out except the interior/door courtesy light wiring.
The previous owner bodged about quite a lot with it and I am unsure of the routing and what connects where.

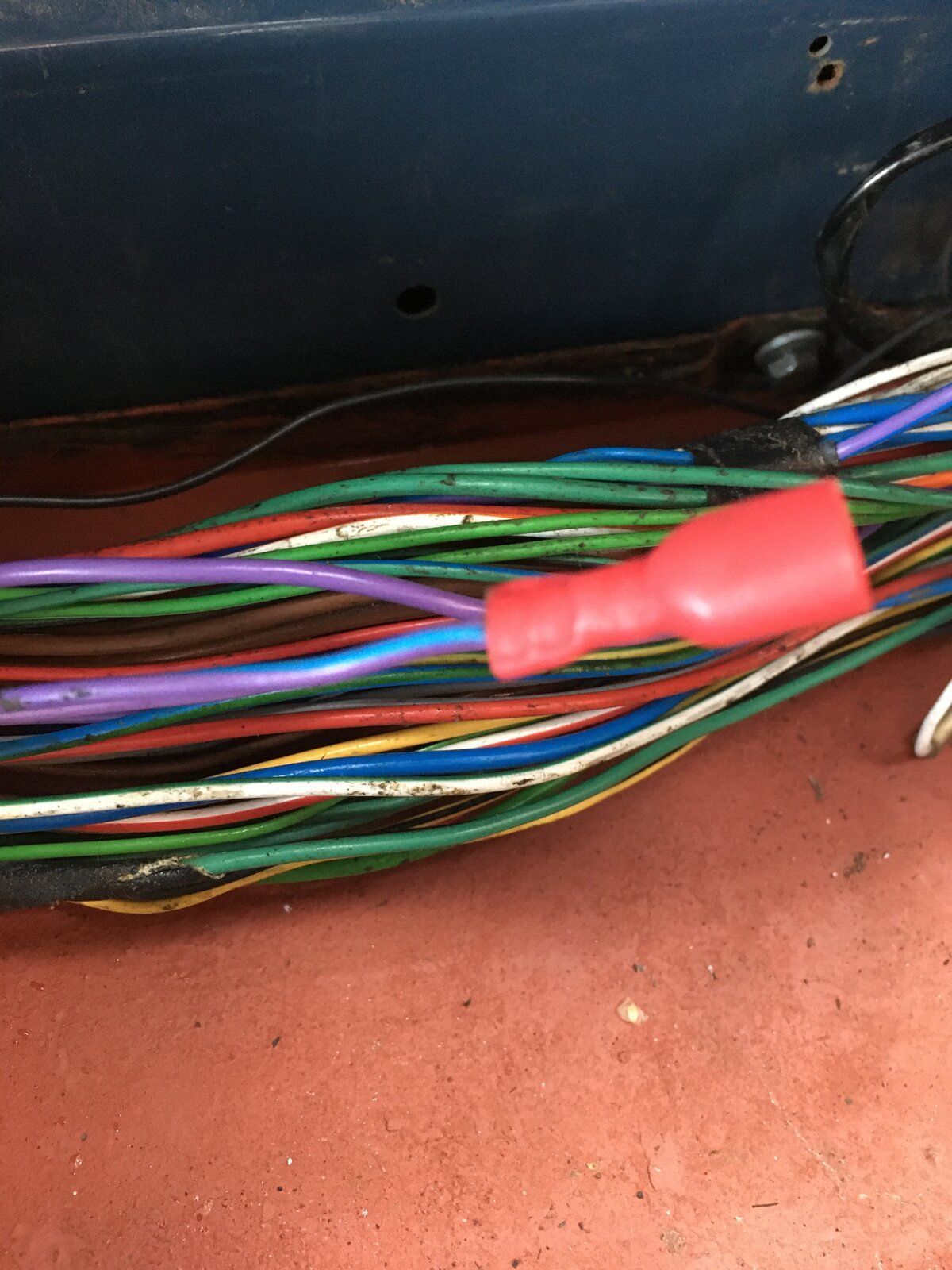

I have the purple and blue wire running across the lower dash just cut off and terminated with a spade connector?? not sure where this originally went to or where its from
Where do the pins from the door contacts go to after they enter the bulkhead?

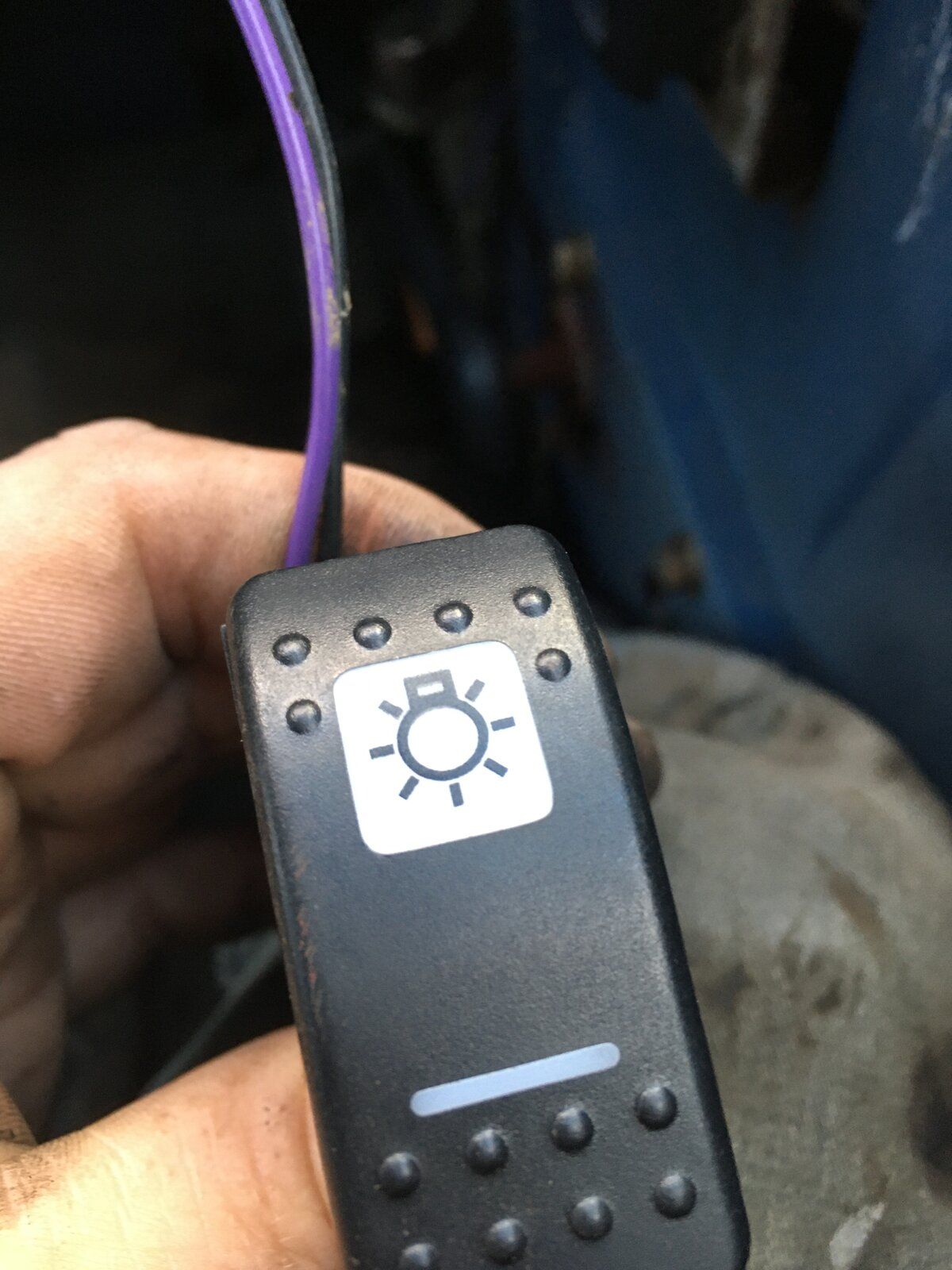

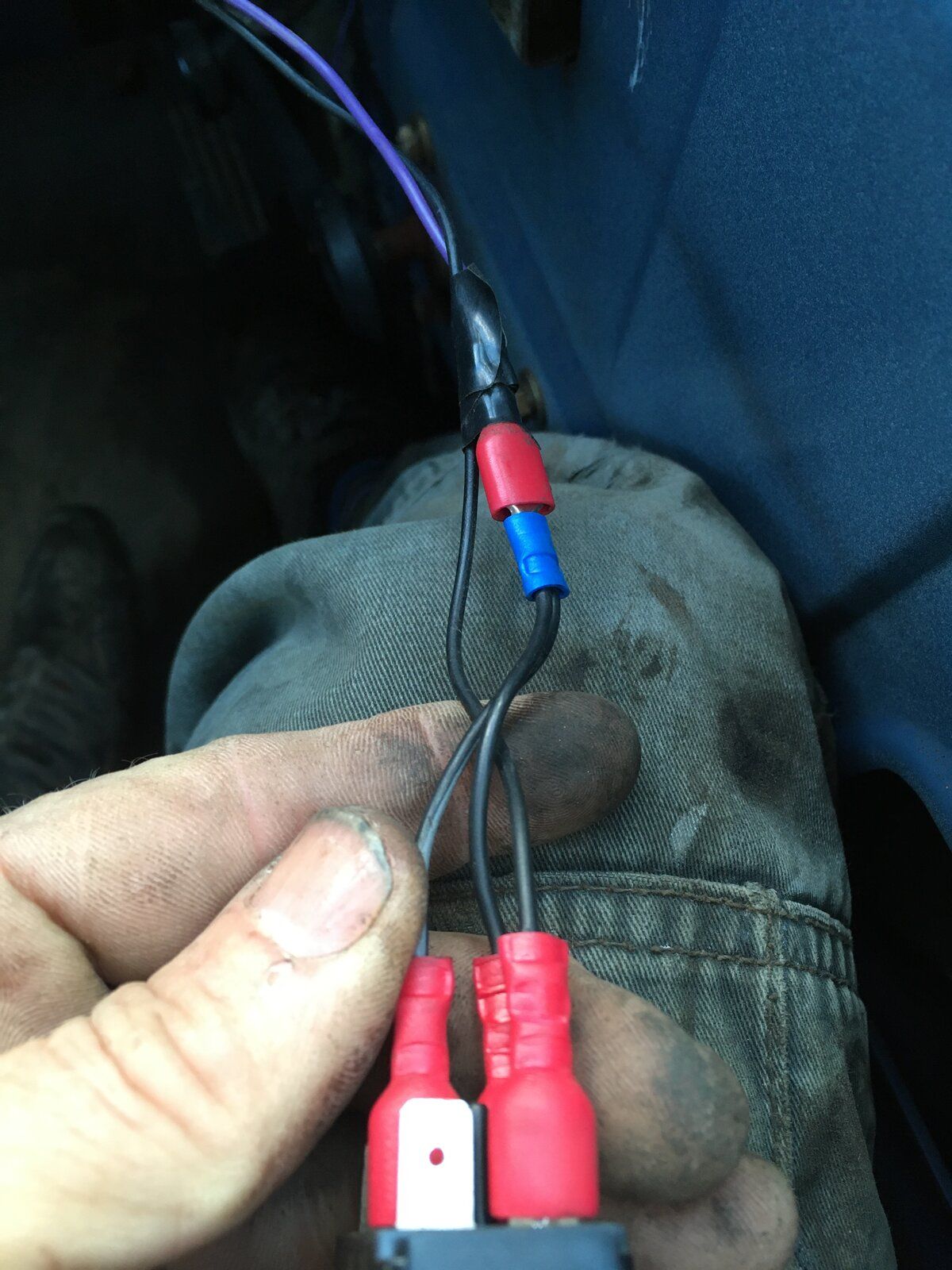

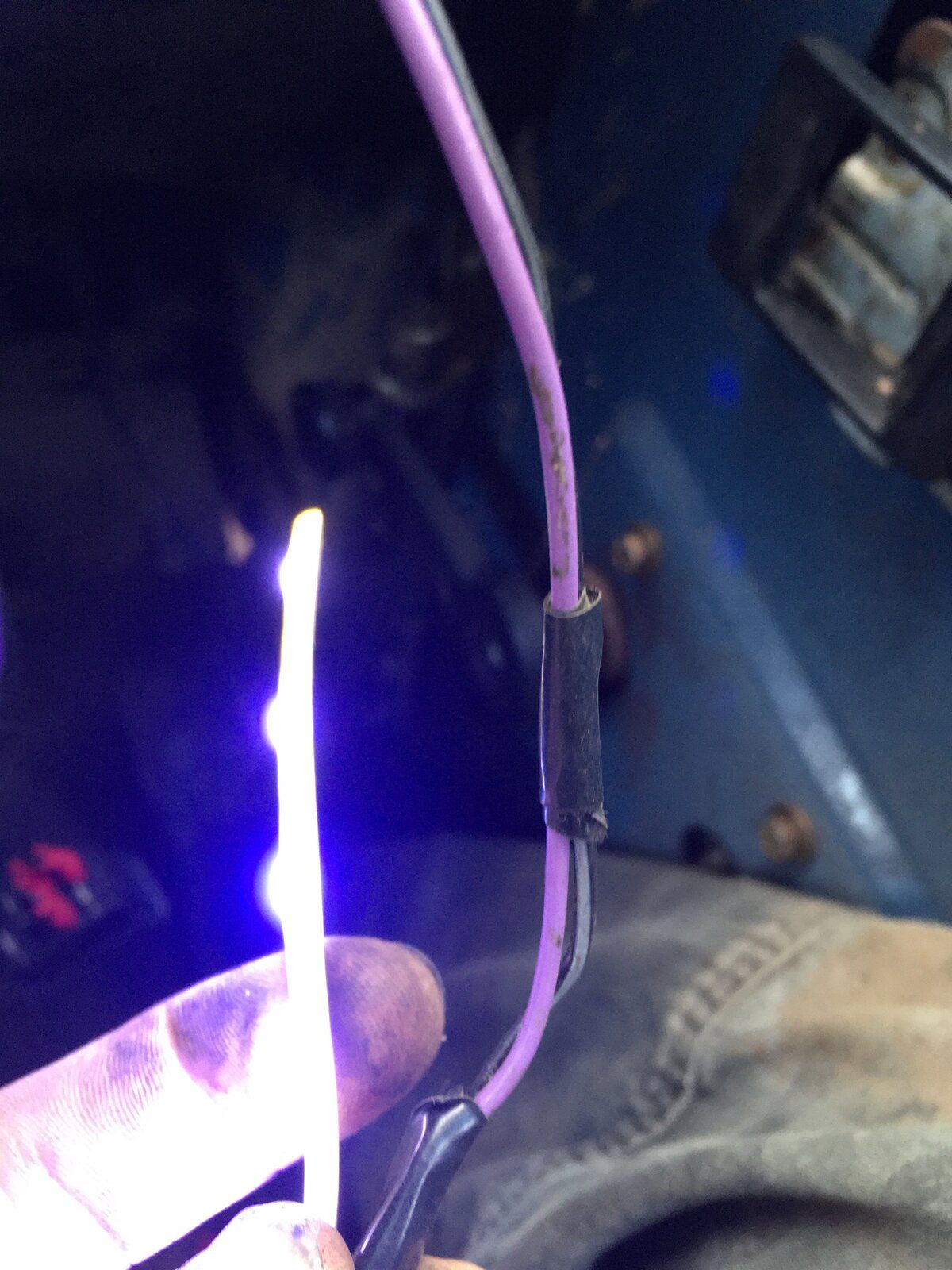

What is the wiring at the switch as he removed that and put in a separate switch and put an led strip light on the dash and not on the roof????
Any help with any aspect of the above hugely appreciated.
TIA
