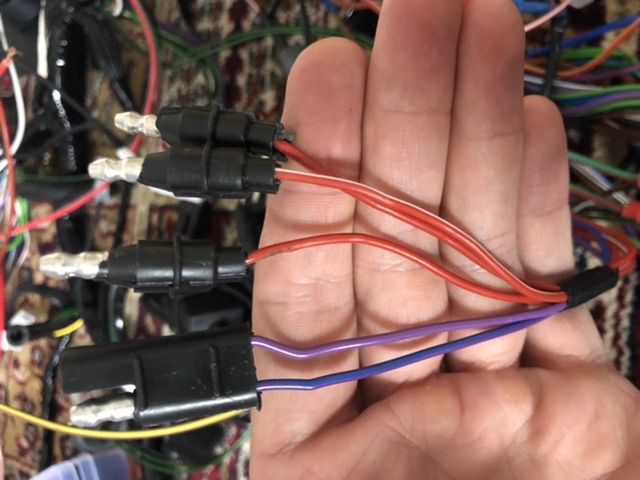

Got my autosparks loom finally for my ‘87 90. Trying to get some wiring adjusted before I install it. Can someone help me with the interior light / gauge light switch. How is this wired? I’ve got door pins to wire to the light


Attachments

  • 05AEC2D4-2A3A-49D8-B7E4-466A74C5FB94.jpeg
    47.7 KB · Views: 112
