Interior courtesy light LED upgrade. Radio not working

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

ryan_1993

Active Member
Posts
143
Location
United Kingdom
I’m such a plank but both my interior courtesy lights were broken on my 300 90 CSW and thought a cheap LED upgrade would improve brightness inside.

it worked fine for about 30 seconds, then put both of them on in front and back after the upgrade and they went out and discovered fuse 2 blew.

replaced it but the radio still isn’t working which appears like it’s on fuse 7 that fuse seems to be fine.

anyone know what potentially could be the issue? Radio not too worried about tbh as it’s getting replace shortly, just need to know if it could be a relay rather than a fuse.

does the radio itself have a fuse inside?

most radio have a fuse on the rear there are two feeds ignition and battery live

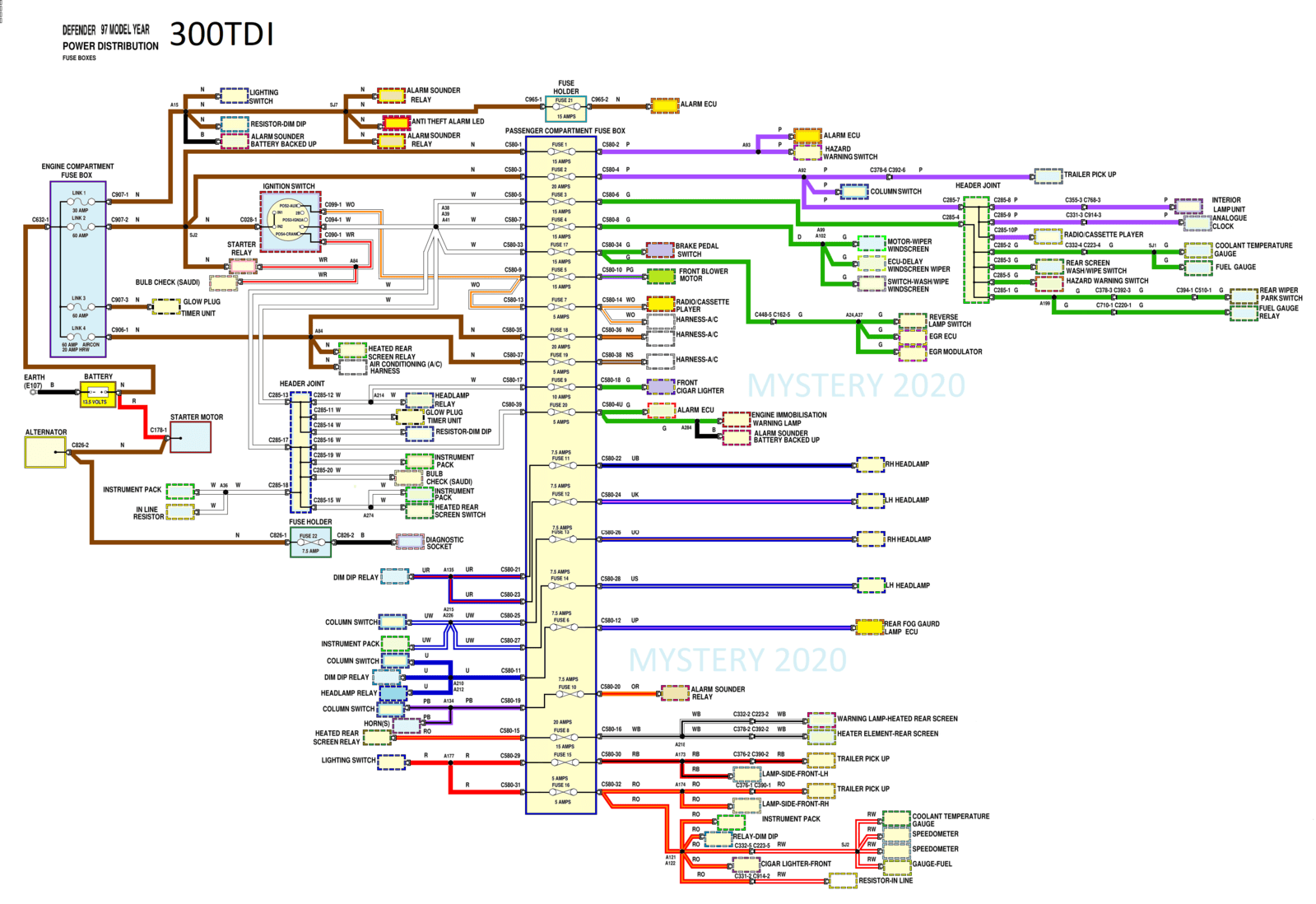

mystery power distribution 300tdi defender.png

Got it working in the end, just needed a bit of electrical tape in the top of the fitting to stop the led from shorting out on the fitting.

super bright now both bulbs and can actually see in the dark.
