Instrument build holder

domderbyshire · Jun 6, 2017

Afternoon, All.

I'm after the part number or a link to the bulb holder that slides into the back of the instruments. I've successfully replaced the original bulbs with LEDs, but one of the actual holders is on the blink. I've got a 1993 200 Tdi.

Just noticed a major typo in the title, but I can't seem to edit it. Bulb holder!!!

Many thanks,

Dom

neilly · Jun 6, 2017

Hi Dom,

Is it one of these?
http://www.allbrit.de/UNI.cfm?PAGE=761728&SPRACHE=EN

Cheers

domderbyshire · Jun 6, 2017

It could well be item 16. The holder simply pushes into the plastic tube on the back of each instrument.

neilly · Jun 6, 2017

Have a search for STC3086.

You will probably find an image online.

Cheers

domderbyshire · Jun 6, 2017

That doesn't look like the right one, I'm afraid. Mine does not have spade connectors. Thanks for your reply, mind!

neilly · Jun 6, 2017

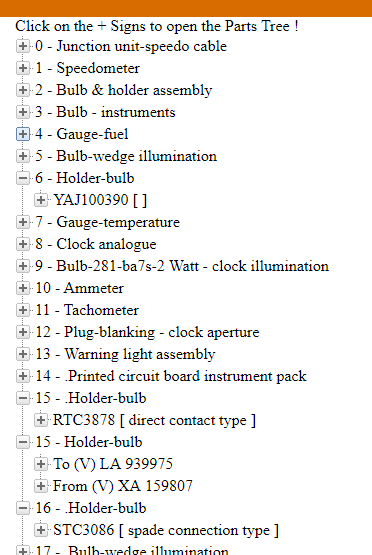

Then have a search for the partnumbers attached to items 6 and 15...............

Cheers

mojo247 · Jun 6, 2017

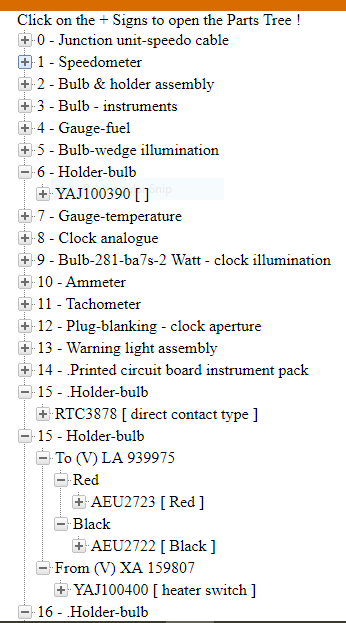

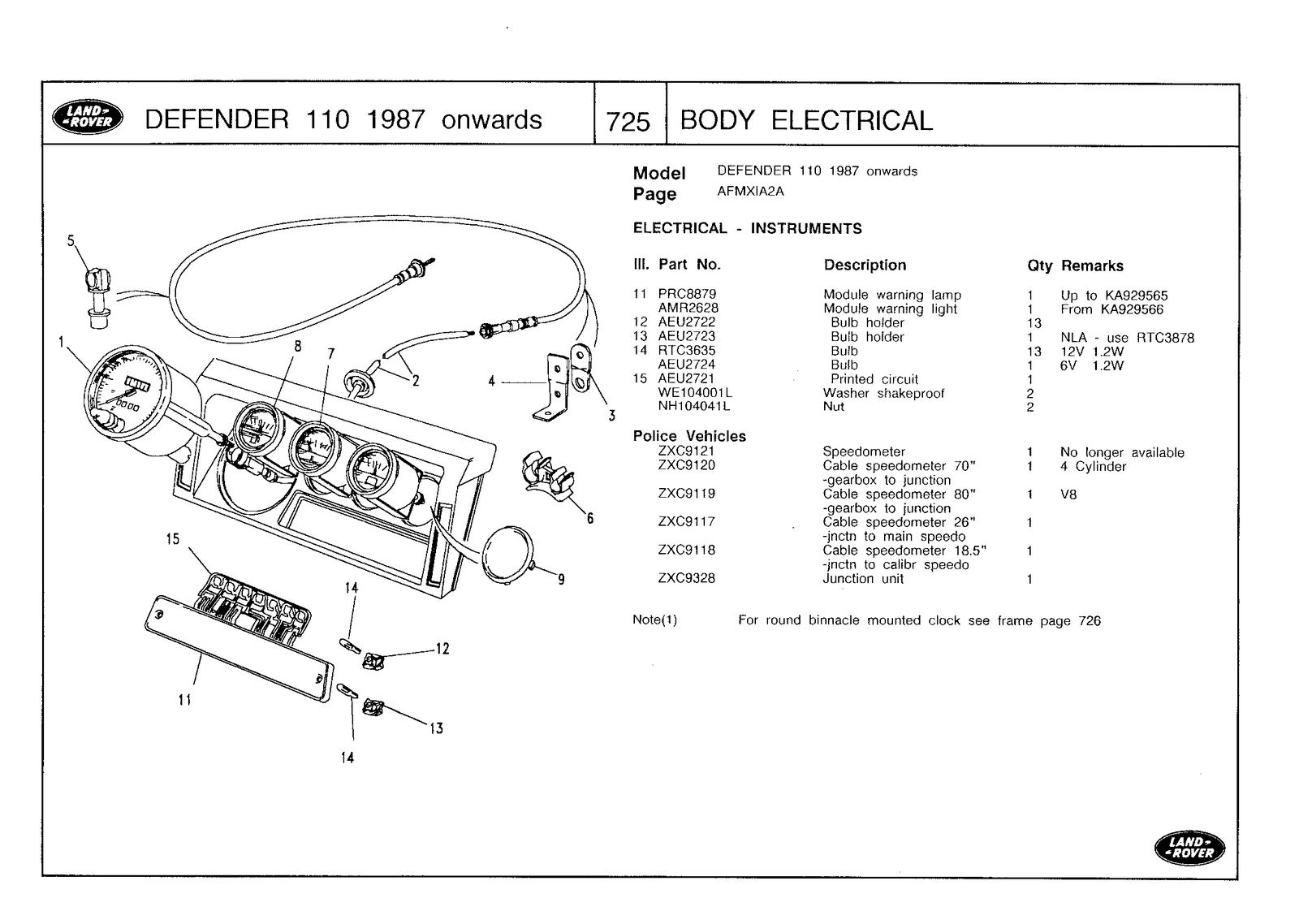

Any of these, items 12 and 13?

neilly · Jun 6, 2017

mojo247 · Jun 6, 2017

AEU2723 [ Red ] AEU2722 [ Black ]

domderbyshire · Jun 6, 2017

Thank you for your replies. It doesn't appear to be any of these.... I've just put the dash back together or else I'd post a photo. It is the bulb holder for the volt meter, not that I think that makes a difference. It's smooth sided and quite long. The bulbs push into it (or T10 LEDs) and it, in turn, simply pushes into the plastic receiver tube in the back of the instrument.

domderbyshire · Jun 6, 2017

I think I'll have a go at fettling it off the car. The dash is coming off soon, anyway, so I can fit a new temperature guage that actually gives me a realistic idea of how hot the car is running!

domderbyshire · Jun 6, 2017

When I do I'll post a picture. Thanks again for your help. Much appreciated!

neilly · Jun 6, 2017

domderbyshire said:
temperature guage that actually gives me a realistic idea of how hot the car is running!

What???? sounds like some sort of magic.............I do not believe it....

Cheers

domderbyshire · Jun 6, 2017

Yes, I thought I'd sussed the OEM gauge, but I was new to Defenders then...

mojo247 · Jun 6, 2017

oh, can't help you unless you specify make/model of volt gauge

domderbyshire · Jun 6, 2017

mojo247 said:
oh, can't help you unless you specify make/model of volt gauge

Ok. All I know is it's the standard gauge as fitted to a 200Tdi. Like this one:

https://www.google.co.uk/imgres?img...anUAhWYHsAKHQDMCaIQMwg1KAYwBg&iact=mrc&uact=8

greendefender123 · Jun 6, 2017

I dont think you can get them separately. Iv put grommets in the holes of my speedo and have just pushed the bulbs in. It's not ideal but works for me. Iv heard of people gluing the tubes back on. Tho heat may cause the bulb to fail. Obviously my speedo is now white light and the other 2 are green. Mine had the wrong bulbs fitted before I got it and melted the plastic. Mines also a 200tdi.

Steve

domderbyshire · Jun 6, 2017

Thanks, Steve. It's the actual bulb holders I'm after, rather than the plastic sleeve that mounts into the back of the instrument.

greendefender123 · Jun 6, 2017

Oh fair enough. Sorry.

greendefender123 · Jun 6, 2017

I dont know if something like this will fit? http://www.jcrsupplies.co.uk/produc...BERISED_PUSH_FIT_BULB_HOLDER__REF_070512.html just measure the internal hole and see what will fit.
