inlet valve seal rope trick

steve2286w · Mar 27, 2015

I was thinking of changing the inlet valve seals to reduce some blue smoke.

the neat trick of using string without removing head appeals

has anyone tried this on a diesel, and does it work ok by inserting the string in the glowplug holes rather than injector,

what sort of clearance is there at tdc between valves and top piston is there which leads to how long a piece of string /diameter

thanks

fanatic · Mar 27, 2015

Compressed air lock up engine

jamesmartin · Mar 27, 2015

steve2286w said:
I was thinking of changing the inlet valve seals to reduce some blue smoke.

the neat trick of using string without removing head appeals

has anyone tried this on a diesel, and does it work ok by inserting the string in the glowplug holes rather than injector,

what sort of clearance is there at tdc between valves and top piston is there which leads to how long a piece of string /diameter

thanks

if its diesel theres little clearance if at tdc so no need of string

steve2286w · Mar 27, 2015

thanks James that sounds even better, is there any tricks for compressing spring to get collets back in, i have a spring compressor but normally these used with head removed.

jamesmartin · Mar 27, 2015

steve2286w said:
thanks James that sounds even better, is there any tricks for compressing spring to get collets back in, i have a spring compressor but normally these used with head removed.

you can make something or buy like this
http://www.googleadservices.com/pag...VS168.JSOB13566.html?RefId=225&adid=JSOB13566

markSX · Mar 27, 2015

Bergen BER5575 Pro Overhead Valve Spring Compressor | eBay

steve2286w · Mar 27, 2015

thanks chaps
didnt know they existed

nickjaxe · Mar 28, 2015

Changed the valve stem seals on my 2.25d when it was fitted a few times without removing the head or using string.

As stated the piston are very close to the head/valves at TDC so no need.

I made a compressor that worked for me bit of a fiddle but doe-able.

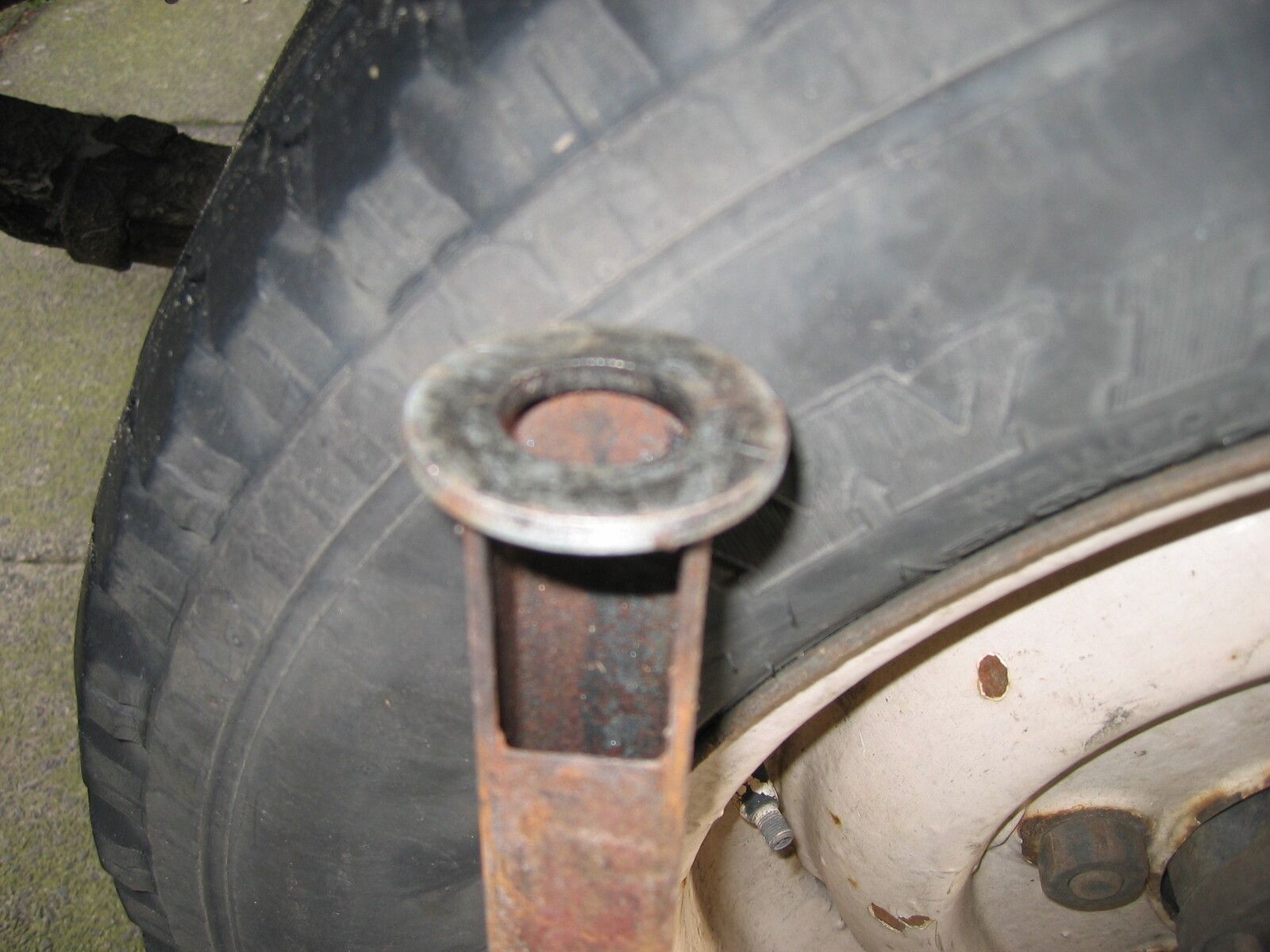

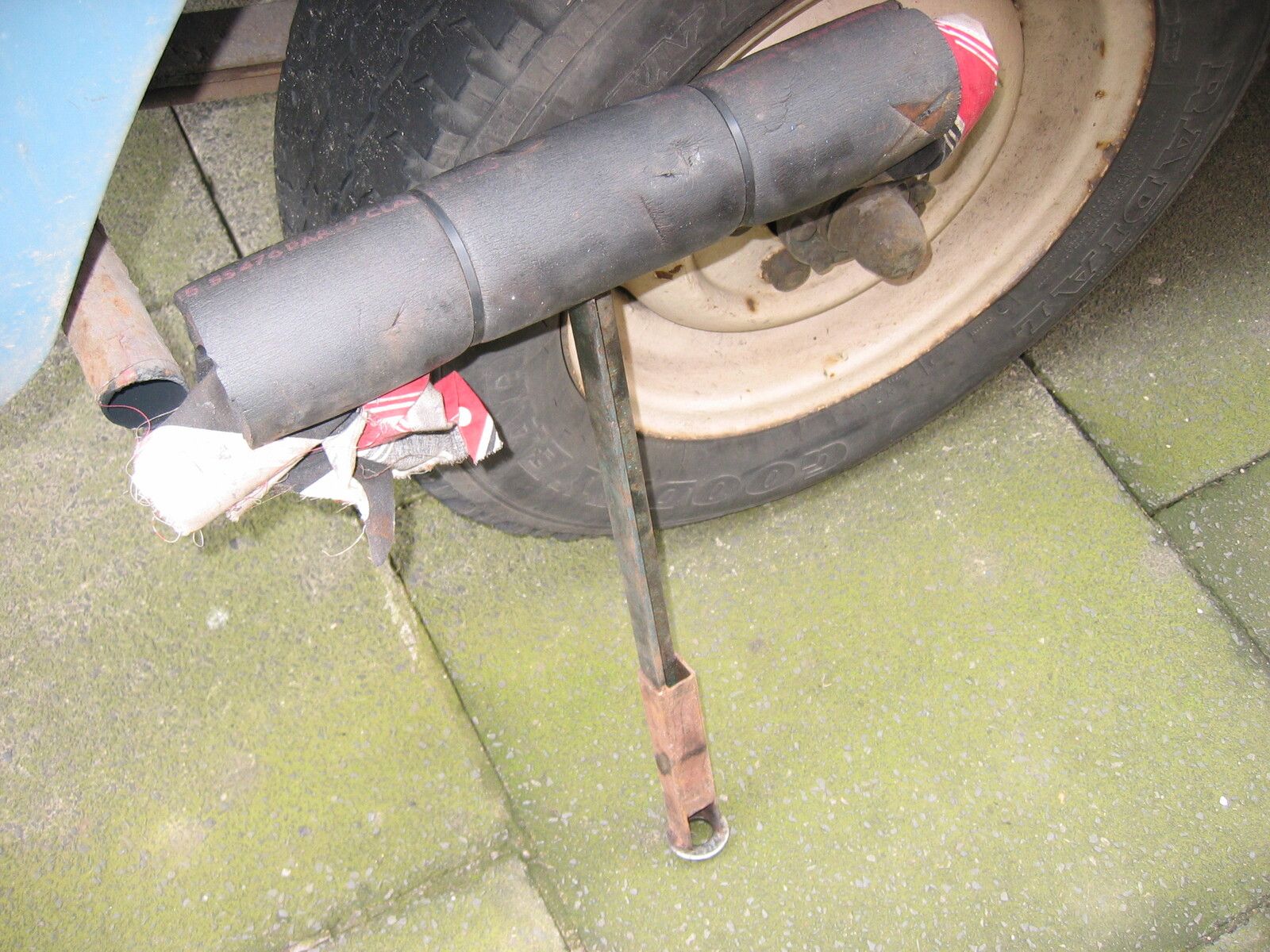

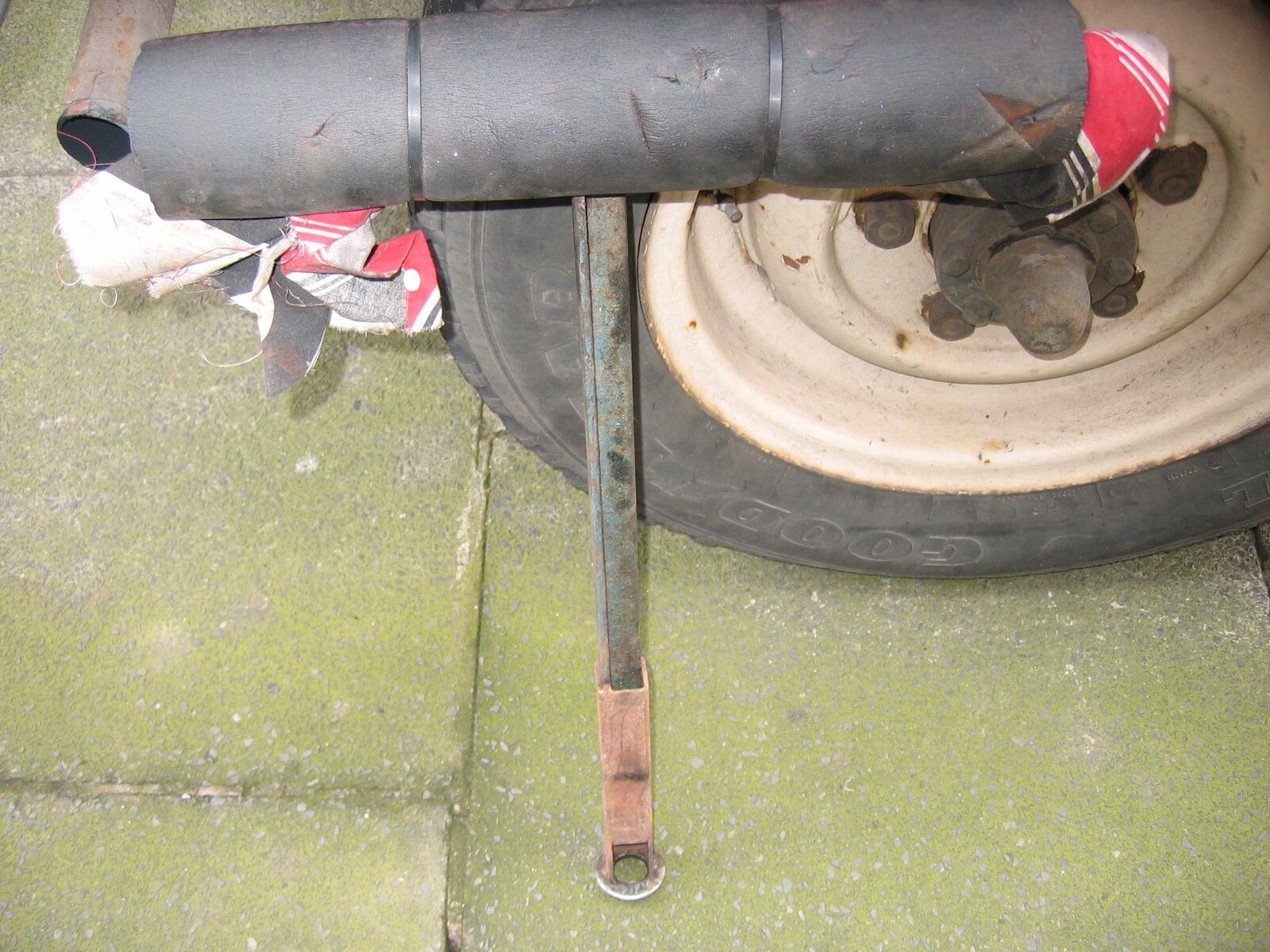

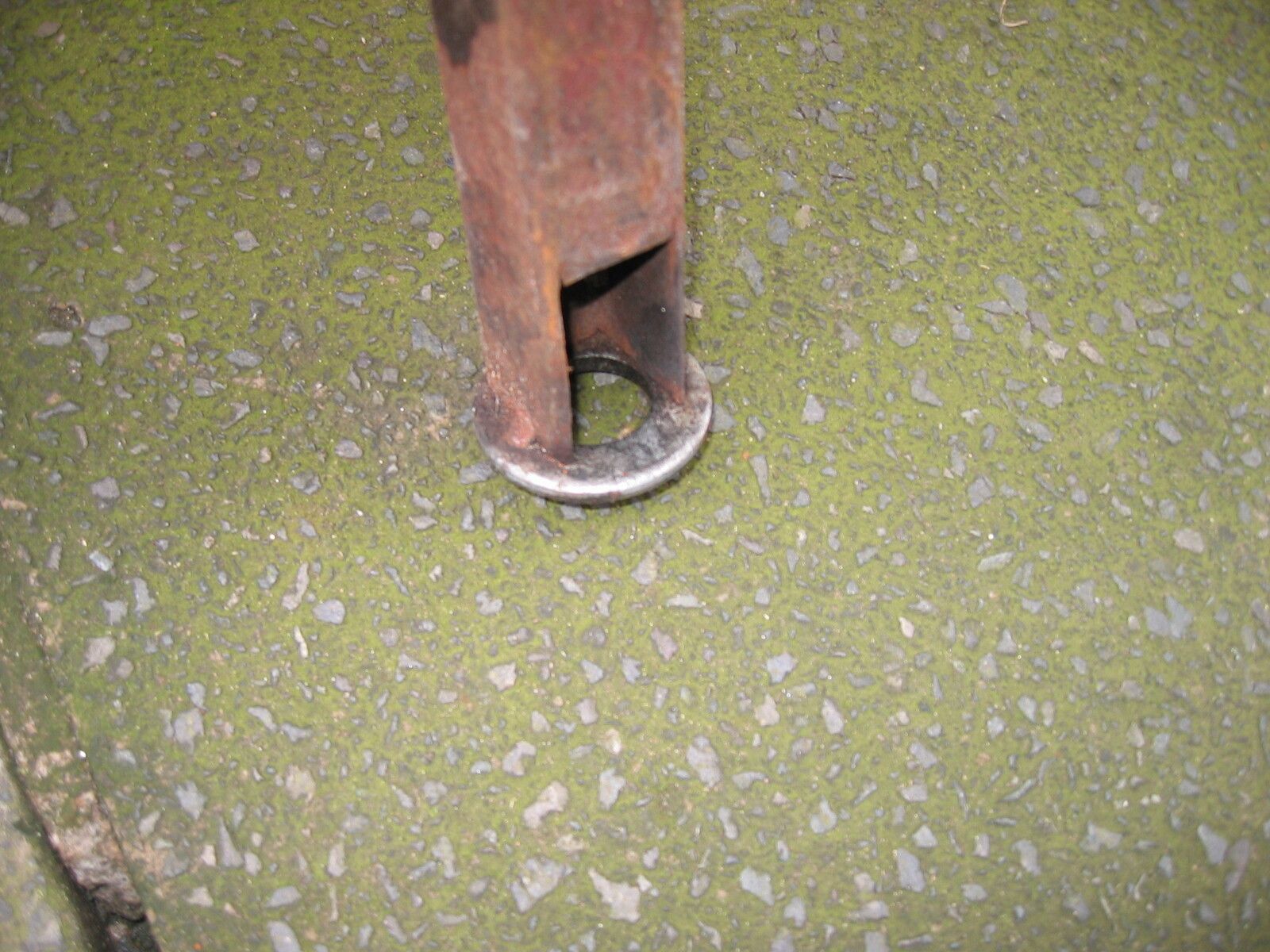

The end was made from a very big washer it sits on the valve and you use your body weight to push down on the valve...leaning on it with your chest...its padded with foam to stop it digging in...both your hands are free to pick out the collets

I didn't have one at the time...but I do now...one of thos little magnets on a telescopic stick for retrieving things...very handy...at the time I just used point plires to fish out the colets.

Although I always found that the pump timing being slightly retarded was to blame.

Nick.

Blackburn · Mar 28, 2015

Bought one of these have the new caps and seals been lying there for 8 months waiting to get motivated as now seems ok.
BGS - Werkzeug - Valve Spring Compressor "Overhead" Version - Pro Range | eBay

steve2286w · Mar 28, 2015

I bought the bergen type only £14 delivered
i had tinkered with pump timing a few years ago but it runs fairly sweet set as is, starts first time, cylinder pressure about 430psi warm.
if off road going down hill slowly on tickover then accelerate thats when lots smoke comes out, it does have other symptoms like when warm it will hiccup frequently with a puff of smoke, with filler cap off it does not seem to breathe heavily but on a long hard run it will impressively blast oil out of filler cap all over bonnet, underside, rear door and windows! i will have another go at timing

nickjaxe · Mar 28, 2015

"it does have other symptoms like when warm it will hiccup frequently with a puff of smoke"

Classic sign og very slightly retarded pump timing...it will start fine..its not enough to cause a starting prob...the pump will need turning toward advance no more than 1mm.

The breather blowing oil out...is it the type where the breather is on the rocker cover????

steve2286w · Mar 29, 2015

Yes later 5mb type breather from rocker cover to inlet manifold

nickjaxe · Mar 29, 2015

If its plumbed to the manifold...why is it leaking on the engine...

steve2286w · Mar 29, 2015

Its. Got me, pipes clear, mesh in cap free of gunk, perhaps loose push fit had tried fitting o ring to cap no difference. OK when not driven hard

nickjaxe · Mar 29, 2015

I'm not familiar with the later engine...but on my 2.25d it was a push fit into an O ring...but held with a small bolt.

Not the best setup...I used to add some black RTV as well...it was very dry then...has your got the small bolt.

steve2286w · Mar 29, 2015

just checked it does not, that stopped at engine no 36623742 mines a bit later missed out by 500odd

but it should have
ERC8049 ROCKER BREATHER SEALING RING | shop | www.lrseries.com

i thought the seal was part of cap, will have a closer look in daylight, may be just worn and new cap needed

John S · Mar 30, 2015

That stick plunger is a simple brill idea, impressive! If u pardon the pun!

nickjaxe · Mar 31, 2015

And it does work very well.

steve2286w · Apr 10, 2015

Well got the valve tool , genuine valve seals arrived from lrseries in plain bags no numbers on them , are they same for exhaust and inlet, how do you tell difference between those costing 30p and 3 quid
Steve

jamesmartin · Apr 11, 2015

steve2286w said:
Well got the valve tool , genuine valve seals arrived from lrseries in plain bags no numbers on them , are they same for exhaust and inlet, how do you tell difference between those costing 30p and 3 quid
Steve

different stem diameters ,and orginaly only inlet had a garter spring as inlet is under vacuum ,exhaust pressure
