A few years ago I brought(what I thought was) a series 3 hybrid, 1975 tax free MOT Exempt historic vehicle. My circumstances have changed and I took the vehicle to a land rover specialist, he was dubious of the vehicles origin and I was surprised as I brought the vehicle in good faith off what I thought to be a friend.
There is only one chassis number I can find on the vehicle, the one under the driver side wheel arch is missing and the one on the dash has been removed.

Does anyone know how I can identify this vehicle other than number plate or chassis number?

What do you mean by "series 3 hybrid"
Usually that would mean to me someone has stuck a series 3 body on a coil sprung rangerover chassis.....

What identity you looking for...the series? or the rangerover?
Probably youd have a rangerover pretending to be a series :)

Also better to do a bit of secret investigation.........rather then tell the whole internet you have a bent landrover :)

[GALLERY=][/GALLERY]
boguing said:
I'm curious as to where the one chassis number you have is located?
Click to expand...

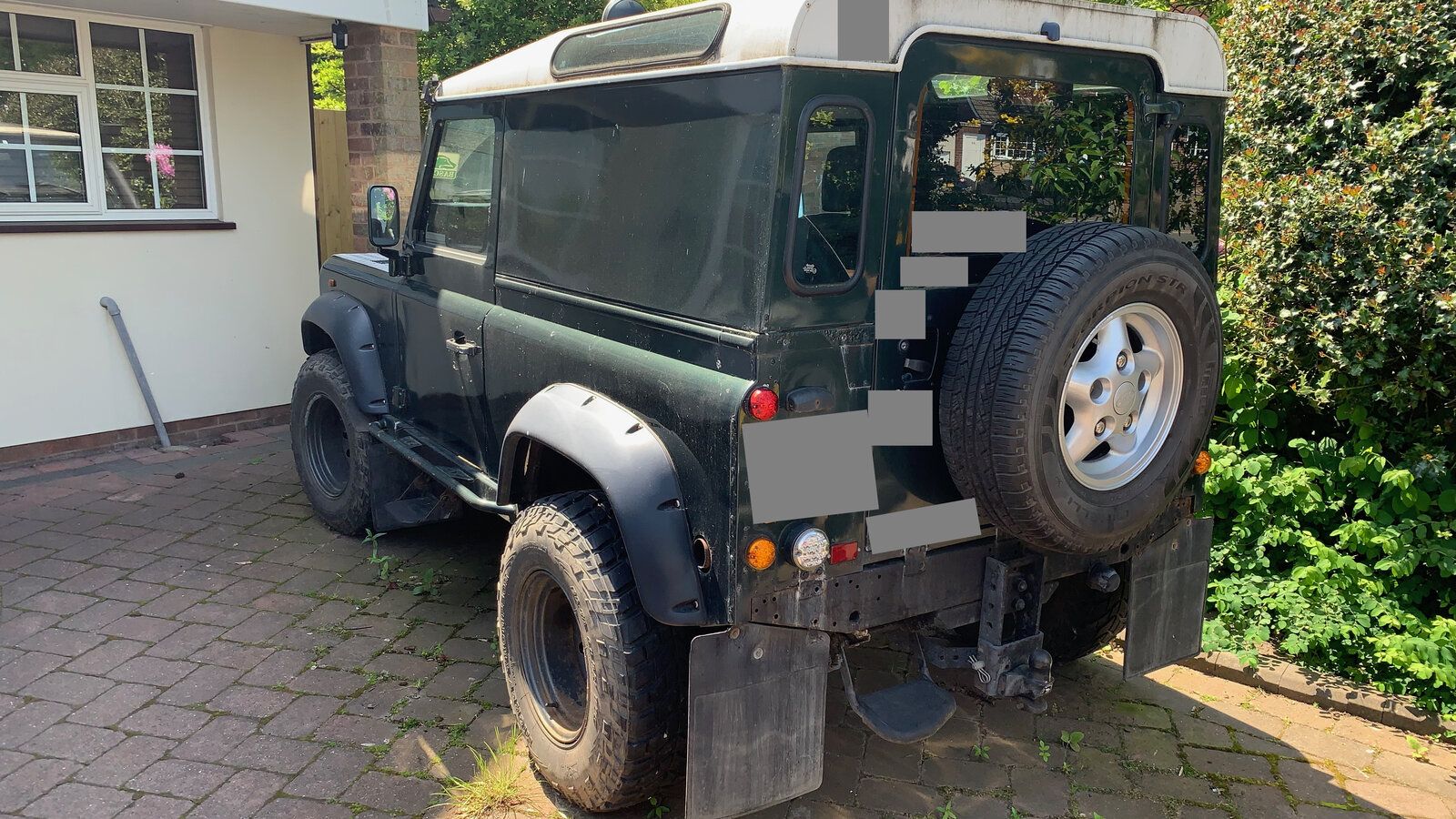

Only one I could find is inside the engine bay on the left hand side.


Attachments

  • Untitled 3.jpg
    Untitled 3.jpg
    358.5 KB · Views: 414
I think s3 will only have a chassis number stamped drivers side dumb iron, these rot out and get replaced all the time so losing the chassis number, other place is on ally plate screwed to the bulkhead, don't think there are any others.
Defender same place for chassis number on dumb iron, plus an alloy plate riveted to top of brake pedal box.

I would study some pics of the chassis itself on the internet, 90/110/defender ones are two c sections welded together top and bottom lengthwise, I think s3 went the same way later on, but early s3 chassis were made up of 4 plates welded on the corners again lengthwise.

Not sure when defender started to get dash mounted vin numbers?

Dont forget the cars identity is the chassis only, body means diddly squat, it could have a range rover body and still be classed as a series 2/3 etc.
So if it's still on leaf springs and paperwork says it's a series 3 then technically it's a series 3.

Can we have a pic of the engine bay?

Can we have a pic of looking underneath from the front, so we can see the chassis rails and suspension setup?

Same from the rear.

What is the first registration year on the log book?

Looks like a late 1990’s Defender with a series ID from the pics. I’d bet the only bit left from the series, if any, is the identification and could even be a stolen Landy under that registration number.

Have you asked your friend for any history on the vehicle and details of where he got it etc?

Registration date is June 1975.

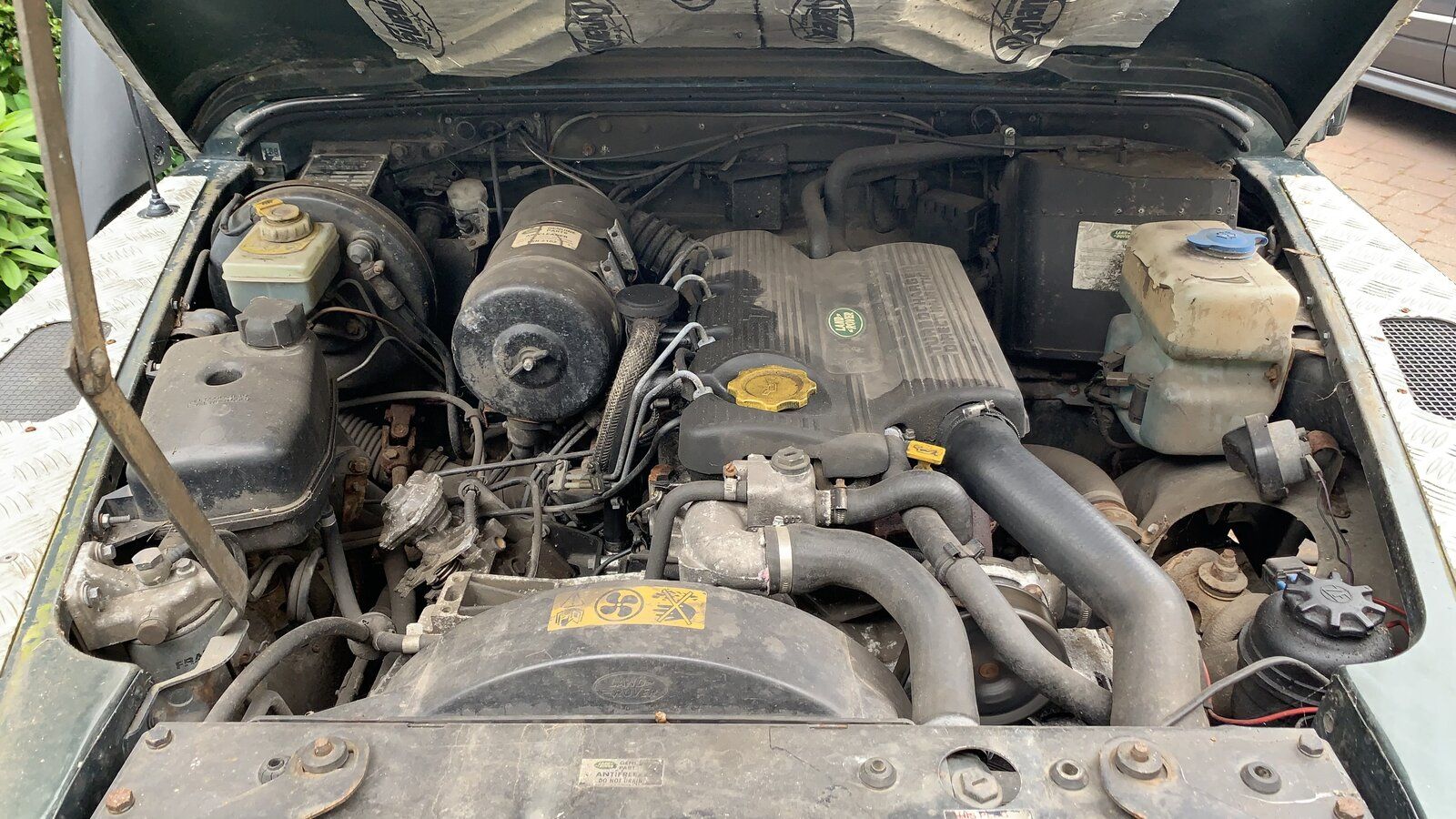

I’ve attached the pic of the engine bay.


Attachments

  • 9749EFFB-B29B-4F8A-A7D4-E25D4C6CE0B2.jpeg
    328.3 KB · Views: 443
