How to correct bent door pillars

E

elise2000

New Member

Posts

4

• Yesterday at 09:06

• #1

Hi All

I've just bought a 300tdi 90 truck cab as a project.

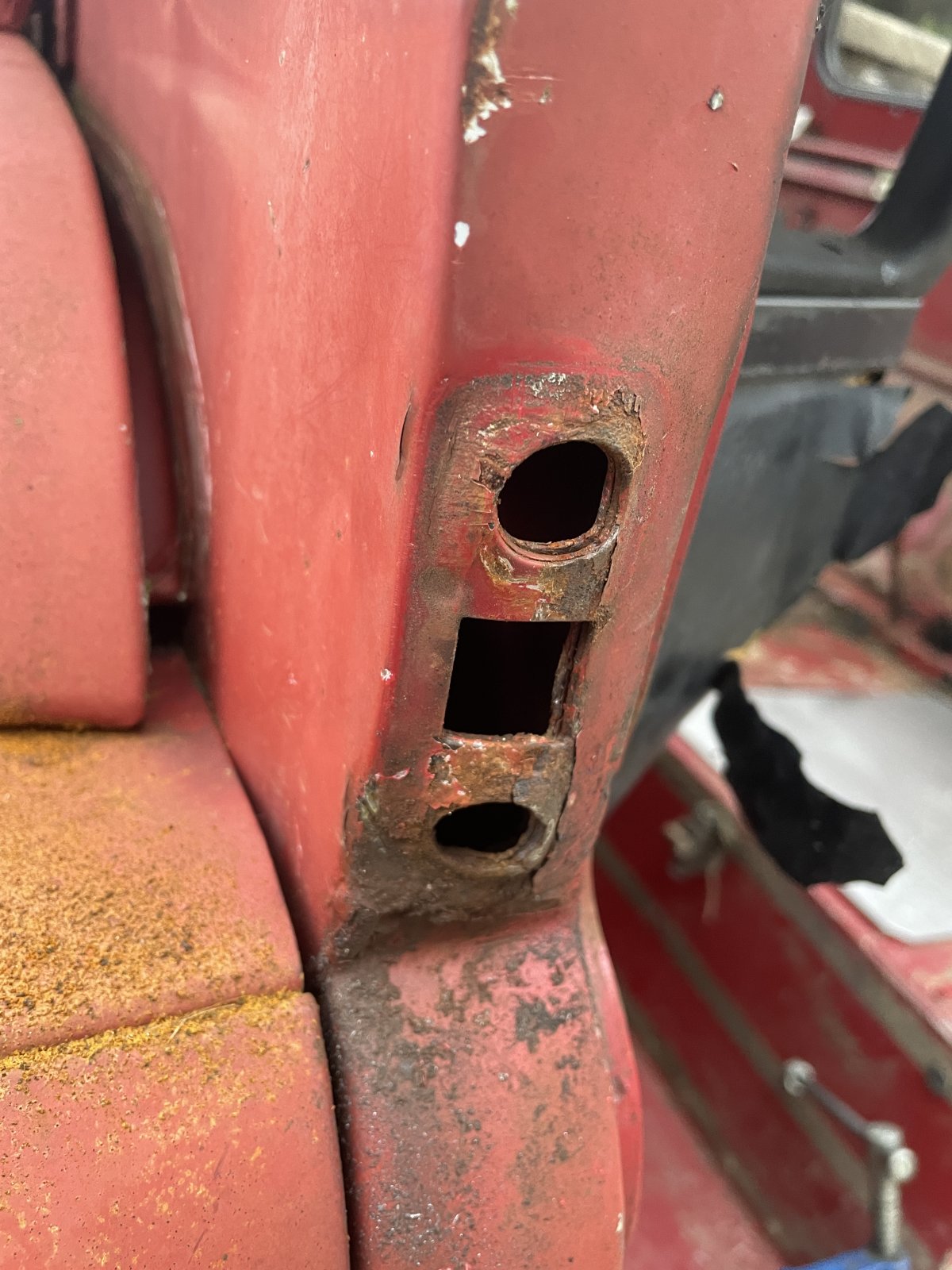

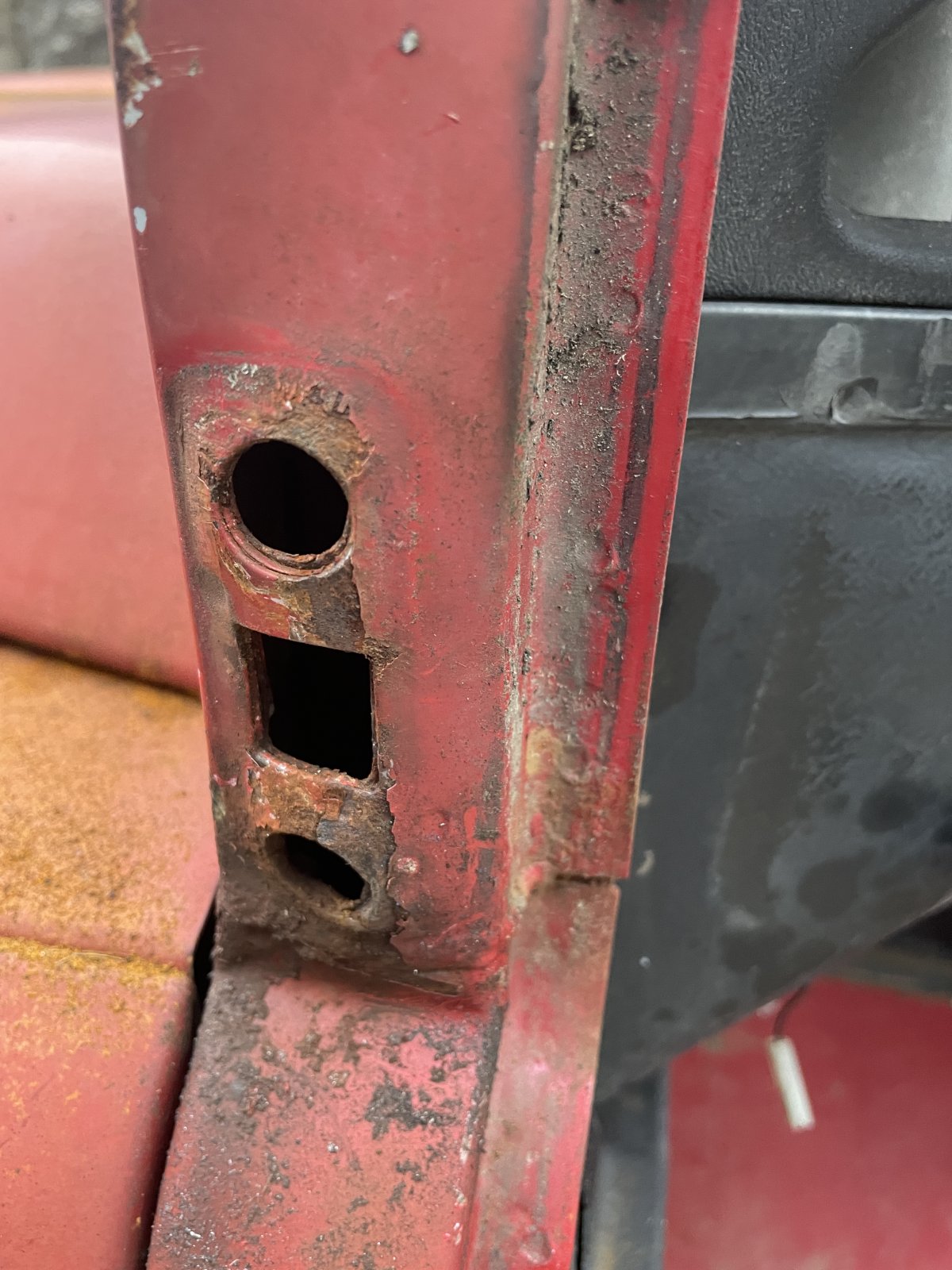

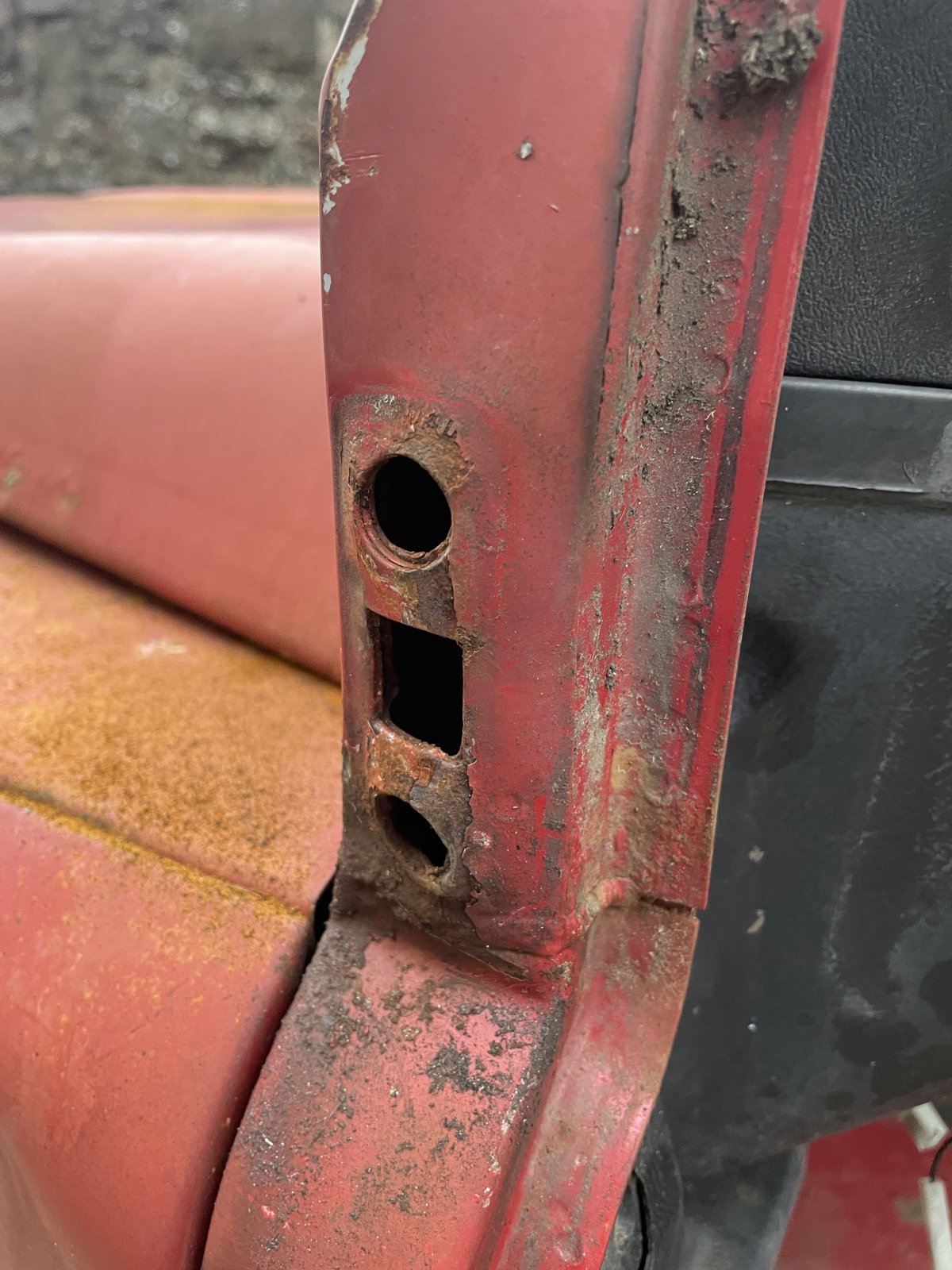

After removing the doors and hinges to replace, the door pilars are pulled out a little behind where the hinges attach (presumably due to the previous awfully fitting doors). Not ideal in any situation, but it's meaning the captive nuts will not fit through the square holes.

Photos below.

Any ideas how to solve? Ideally without replacing the pillars!

Thanks in advance



Attachments

•

  293.5 KB · Views: 23
•

  275.7 KB · Views: 21
•

  276.4 KB · Views: 22

A

Anaconda

Well-Known Member

Posts

3,541

Location

Thames Valley

• Yesterday at 10:12

• #2

Straighten them up, put the captive nuts on and space the hinges out if need be.
Maybe the doors have been forced round with no check strap on there.



E

elise2000

New Member

Posts

4

• Yesterday at 10:13

• #3

Anaconda said:

Straighten them up, put the captive nuts on and space the hinges out if need be.

Click to expand...

How would you go about straightening them?

Thanks



A

Anaconda

Well-Known Member

Posts

3,541

Location

Thames Valley

• Yesterday at 10:18

• #4

Hammer?
You might need to heat it a bit and make an implement to slot behind to give it support when you hit it..
Otherwise replacement is an option.



ER1C

Well-Known Member

Posts

5,327

Location

Cheshire

• Yesterday at 10:19

• #5

I would get a big heavy plate and bash that onto them.....That should at least get it flat..

Plan B may be Grind cut them out..... align them on a bench and weld them back in.



E

elise2000

New Member

Posts

4

• Yesterday at 10:20

• #6

Anaconda said:

Hammer?
You might need to heat it a bit and make an implement to slot behind to give it support when you hit it..
Otherwise replacement is an option

Anaconda said:

Hammer?
You might need to heat it a bit and make an implement to slot behind to give it support when you hit it..
Otherwise replacement is an option.

Click to expand...

I tried a hammer to no avail. Maybe I'll try a bigger one! What would you recommend heating with?

Click to expand...



E

elise2000

New Member

Posts

4

• Yesterday at 10:20

• #7

ER1C said:

I would get a big heavy plate and bash that onto them.....That should at least get it flat..

Click to expand...

thanks



A

Anaconda

Well-Known Member

Posts

3,541

Location

Thames Valley

• Yesterday at 13:26

• #8

Gas bottles or map gas maybe.
Don't get it too hot though, being reinforced it might prove a problem.
Large flat hammer or flat metal bar as mentioned above to help minimise damage.



Scooby22

Well-Known Member

Posts

1,246

Location

County Durham

• Yesterday at 14:28

• #9

Brute force and a heavy hammer looks to be the order of the day.
