help with this wire?

ashleywood.ash · Mar 26, 2016

hi,
after looking again at my melted wires today it appears only one wire has actually melted completely.
can anyone help with what it is and where it goes so i can run a new one.

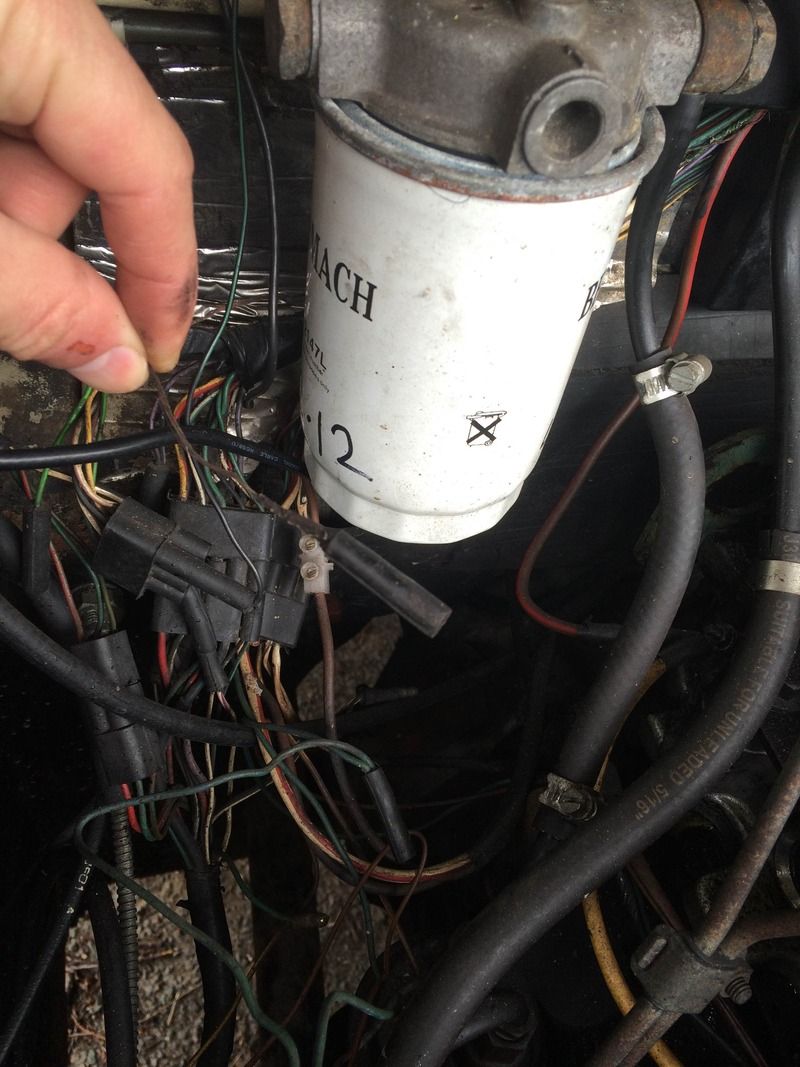

it attaches to the back of the ignition barrel and runs into the bulkhead, but for some reason it isnt attached to anything under the bonnet?
i am guessing it should be or it would not have melted? I dont know if i have disconnected it by mistake when looking in the wires?

as the landy is stuck on the road I plan to run a tempory wire out of the loom so i can at least get the car started and moved onto my drive. dont really want to take to much dash apart at the moment as its a nightmare and I am planning on changing the bulkhead later in the year anyway so i can do it neatly then.

Kwakerman · Mar 26, 2016

What colour is the wire?

ashleywood.ash · Mar 26, 2016

I'll try and look but it has melted really bad so it's just bare wire

Kwakerman · Mar 26, 2016

The back of the switch should have the following colours
Brown
White
White/Red
White/Orange
Eliminate good wires to see which one it is

ashleywood.ash · Mar 26, 2016

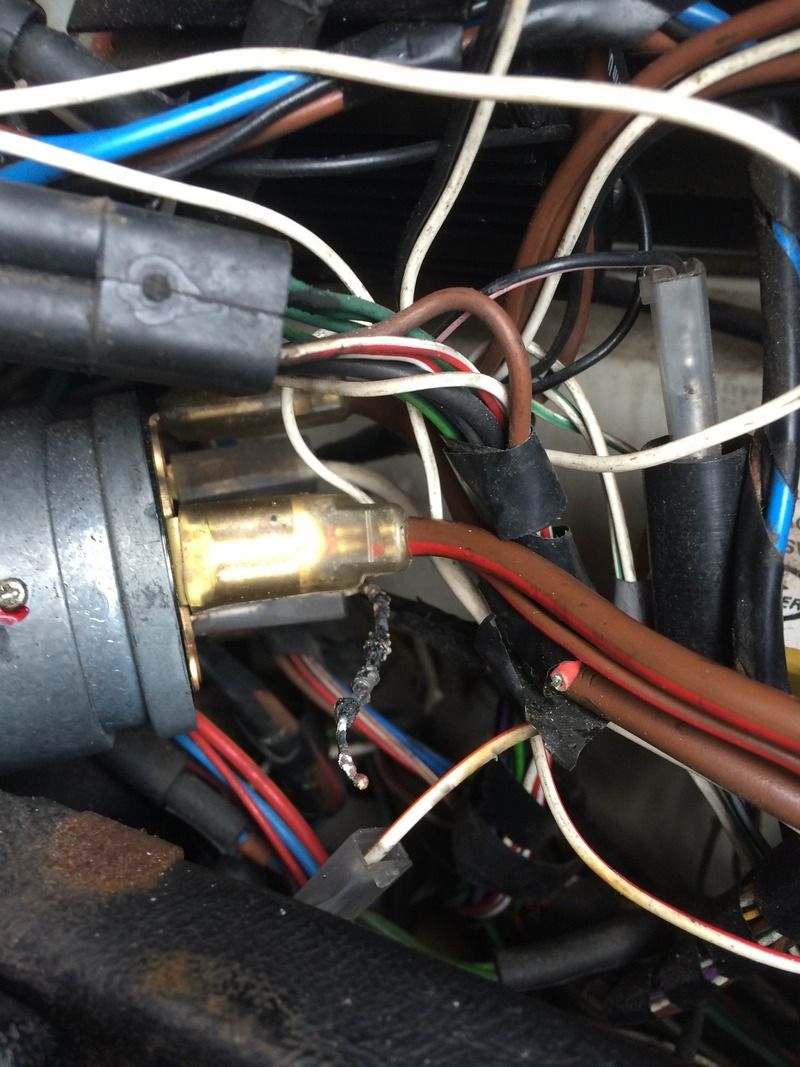

The wires onto the barrel are as follows:

Thick brown
Thick brown and red
Thick white
Thin white and red
Thin black and white (this is the melted one)

ashleywood.ash · Mar 26, 2016

Any ideas on what the black and white is or where it connects to?

Or will there be a wiring diagram in the Haynes manual? I'll buy one quicker then

jamesmartin · Mar 26, 2016

does the starter still work?

ashleywood.ash · Mar 26, 2016

I haven't tried starting it to be fair due to the smoke and glowing wire.
I'll try turning it over again, but if I remember from when it happened I don't recall it engaging

jamesmartin · Mar 26, 2016

wires non std just wondered if it was a starter bypass

ashleywood.ash · Mar 26, 2016

It's a 200tdi conversion from a td so guessing that's wire the wires are non standard.
I'll put battery back on and have another look in morn.

When the smoke started the car cut out and then would not re start so could be starter wiring I guess

Shanec · Mar 26, 2016

I am getting a loom from autosparks as had a similar situation as yours and noticed wires had burned and shorted together

frog hopper · Mar 26, 2016

Could it be the fuel cut off valve ?

ashleywood.ash · Mar 27, 2016

Yes
From research it would appear that the black and white wire goes direct from the ignition terminal 5 to the stop solenoid.
Usually melts when people try installing fuel cut off so wondering if this has been tried.
Anyway apparently it is a direct wire so I will try replacing this on Tuesday when I can get some wire.

Just got to find the stop solenoid now

I'm new to 200tdi

Kwakerman · Mar 27, 2016

ashleywood.ash said:
Just got to find the stop solenoid now
I'm new to 200tdi

Back of the fuel pump just above the four outlet pipe unions

rogerboy · Mar 27, 2016

ashleywood.ash said:
Yes
From research it would appear that the black and white wire goes direct from the ignition terminal 5 to the stop solenoid.
Usually melts when people try installing fuel cut off so wondering if this has been tried.
Anyway apparently it is a direct wire so I will try replacing this on Tuesday when I can get some wire.

Just got to find the stop solenoid now
I'm new to 200tdi

Can you not put a cut out switch on to the solenoid wire ??

ashleywood.ash · Apr 2, 2016

Ok, it's back running.

I ran a new wire from the back of the ignition barrel to the stop solenoid and it fired straight up.
Some other wires are a little charred but are still fully covered.

Looking at the wires they could probably do with being re-done at some point but that can wait until the summer.

Thanks for all the help
