Help with re-build

iannotts · Nov 11, 2007

Hi all, I have looked all over the web for a picture of the throttle linkage near the heater, I have 4 holes in the bulkhead for the heater and two for the throttle linkage, but when I put the throttle linkage to where it looks like it should go it not fit cos of heater.

So what I am asking is could someone kindly take a piccy of there throttle linkage and heater and post it or email it so I can see how it goes.

Thanks Ian

yella · Nov 11, 2007

turn the bracket the other way round

iannotts · Nov 11, 2007

yella said:
turn the bracket the other way round

only fit one way

tried that

slob · Nov 11, 2007

show us a piccy and i might be able to tell yer where yer going weong, cos i int got a pic of how it should be to send yer

iannotts · Nov 11, 2007

slob said:
show us a piccy and i might be able to tell yer where yer going weong, cos i int got a pic of how it should be to send yer

Ok will take one as soon as possable

yella · Nov 11, 2007

ive got mine with a defenderr heater box and they both fit quite snugly

iannotts · Nov 11, 2007

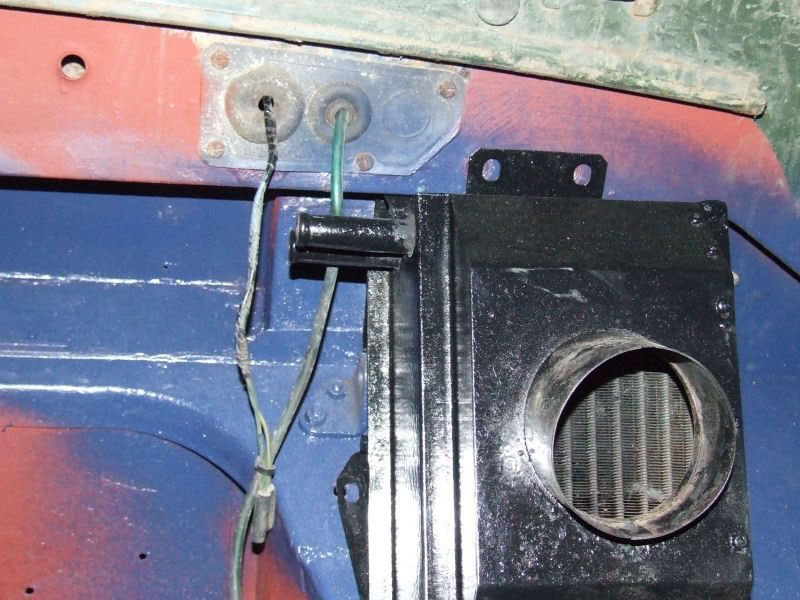

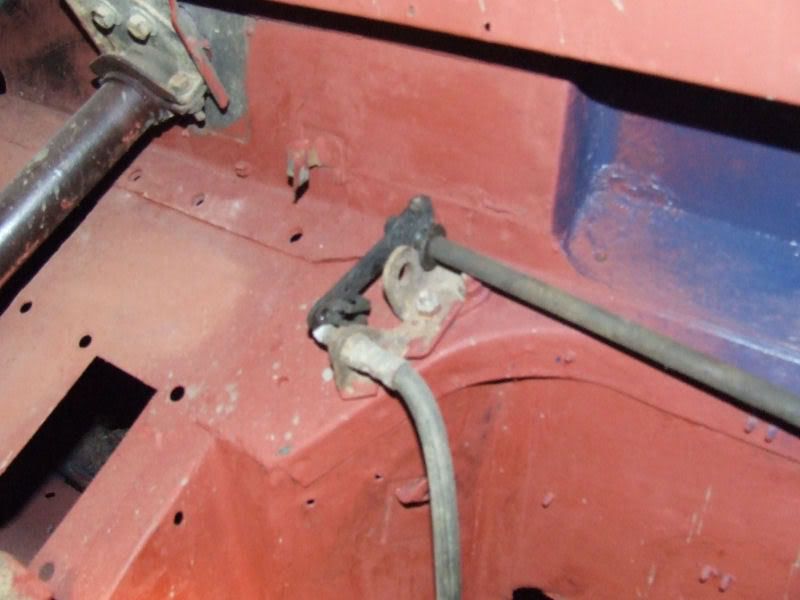

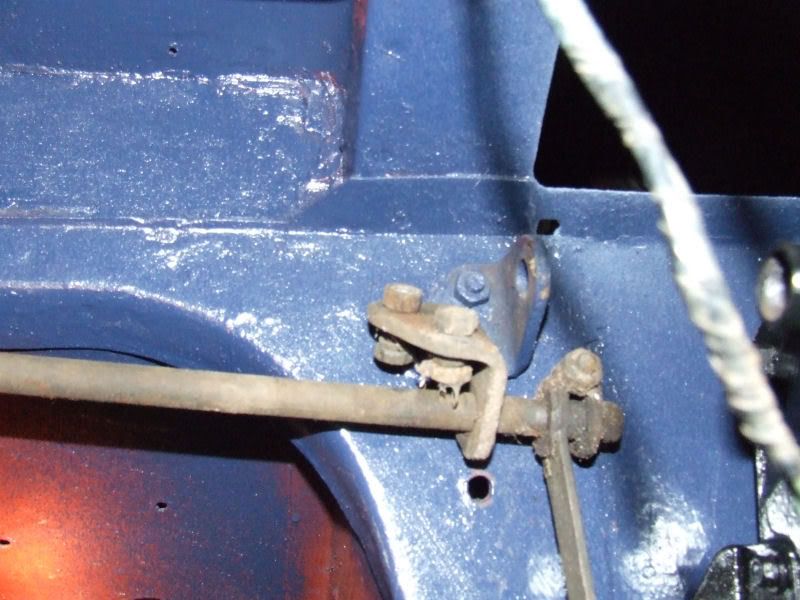

piccys as asked for, as you can see the heater is hitting the throttle linkage before it is in line with the bolt holes and slot in bulkhead.

can anyone advise me on what steps to take?

Ian

slob · Nov 11, 2007

buy more blue paint

iannotts · Nov 11, 2007

slob said:
buy more blue paint

Was only to see how it would look

dont you like the redoxide blue and green look?

got to trail assemble first

Any ideas on the problem?

slob · Nov 11, 2007

move it a bit and drill noo holes, or turn it round and drill noo holes

slob · Nov 11, 2007

put the clamp on the other side of the bracket

iannotts · Nov 11, 2007

still cannot get heater in place

yella · Nov 11, 2007

see where that bracket is already on yer bulkhead, it looks like you might have to move it over.

yella · Nov 11, 2007

i fecjin tlt him that and he said he couldnt ffs

slob · Nov 11, 2007

leave the bracket and move the heater

Sirus · Nov 11, 2007

Heat the bracket an move the series

iannotts · Nov 11, 2007

Sirus said:
Heat the bracket an move the series

oil dripper · Nov 11, 2007

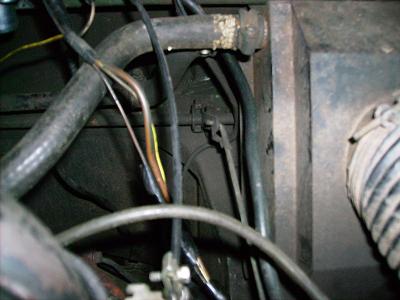

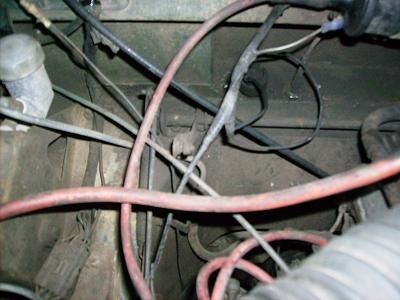

just took a couple of pics for you in the dark so it was hit or miss

iannotts · Nov 11, 2007

Cheer oil dripper

yella · Nov 11, 2007

i would go tek a pic of mine but ive got a defender heater box so it wint do you any good
