Help identifying a part

tyke100 · Apr 1, 2022

I figured out I have a leaking part below the intercooler pipe on top of the engine.
( sorry forgot to make picture)
It's going in the plastic pipe and engine on the side.
And is like no seal between which makes the oil leak on both ends.
Not much, but annoying over time.
It looks like a diagram or something inside.

I cant find it in any part catalog, so anyone has any idea what it's called or where to get it?
Or may even if it can be bypassed

and what's the result f that?
Thanks

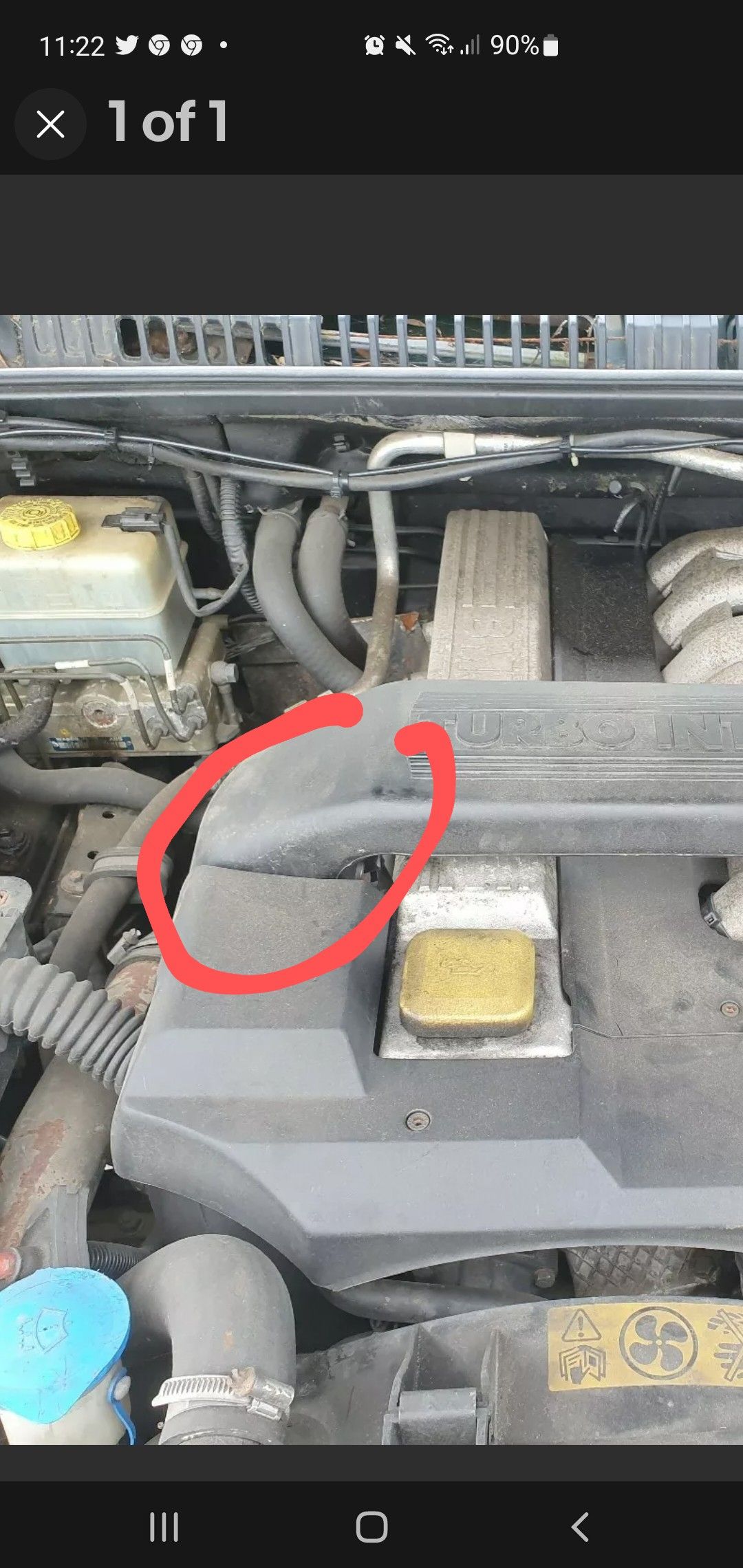

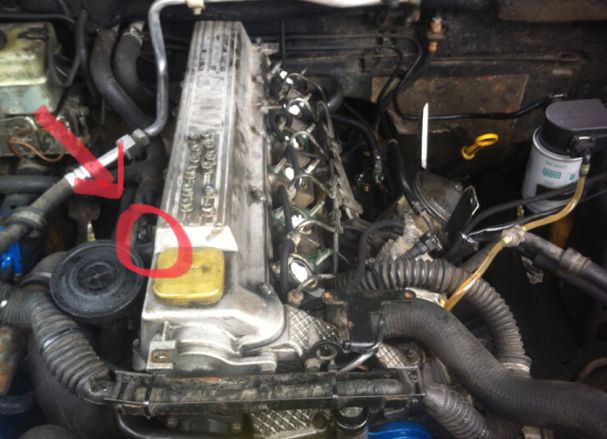

? Pic for illustration of location )

Rubberknees · Apr 1, 2022

Do you mean the plastic breather valve that comes out of side of rocker cover and into air intake body. Mines a sod for not staying put so just clean it up and apply some sealant to hold it in place

tyke100 · Apr 1, 2022

Yes thats the one.
Tried sealant, works for a day makes a mess still dosnt seal.lol.

Tried cableties to hold it in place proper, still leaking.

Thought may get a new one but not sure what its called or how much.
I seen somewhere a picture someone replaced it with a normal pipe.

But I have no idea what it dos or what it is there for and what it would cause by replacing with a normal pipe. Lol

Rubberknees · Apr 1, 2022

tyke100 said:
Yes thats the one.
Tried sealant, works for a day makes a mess still dosnt seal.lol.

Tried cableties to hold it in place proper, still leaking.

Thought may get a new one but not sure what its called or how much.
I seen somewhere a picture someone replaced it with a normal pipe.

But I have no idea what it dos or what it is there for and what it would cause by replacing with a normal pipe. Lol

It's just a filter to clean the recirculated oil vapers into turbo. Just found old wammers post part number STC2806

tomcat59alan · Apr 1, 2022

Rubberknees said:
It's just a filter to clean the recirculated oil vapers into turbo. Just found old wammers post part number STC2806

They're bloody expensive from memory,a new O ring worked for me.

Rubberknees · Apr 1, 2022

tomcat59alan said:
They're bloody expensive from memory,a new O ring worked for me.

Or wrap some tape round the pipe to make a tight fit

tomcat59alan · Apr 1, 2022

Rubberknees said:
Or wrap some tape round the pipe to make a tight fit

Tried that but the tape was effected by the oil.

Island 4x4 list the part but it's price on application

Heard from Mike so good news John, had my telephone appointment this morning and was asked to go to the surgery at 1130. Couldn't find anything new so we're both happy bunnies

Rubberknees · Apr 1, 2022

tomcat59alan said:
Tried that but the tape was effected by the oil. Island 4x4 list the part but it's price on application Heard from Mike so good news John, had my telephone appointment this morning and was asked to go to the surgery at 1130. Couldn't find anything new so we're both happy bunnies

Sure are Alan. At least now the mortality factor has gone down hell of a lot

Like I told Mike if you own and drive Land Rovers you've got to expect your body to behave the same

tomcat59alan · Apr 1, 2022

Rubberknees said:
Sure are Alan. At least now the mortality factor has gone down hell of a lot Like I told Mike if you own and drive Land Rovers you've got to expect your body to behave the same

Glad you can have the opp mate,they advised me not to 1in6 chance of not surviving

fec that.

tomcat59alan · Apr 1, 2022

Rubberknees said:
Do you mean the plastic breather valve that comes out of side of rocker cover and into air intake body. Mines a sod for not staying put so just clean it up and apply some sealant to hold it in place

Rimmer Bros £185.21 Inc vat.

Rubberknees · Apr 1, 2022

tomcat59alan said:
Glad you can have the opp mate,they advised me not to 1in6 chance of not surviving fec that.

Crikey 1 in 6, What a pair we are I was given 1 in 3

At least for me now I've had tests I'm good to go. I'll bag up some of my good luck and send you some

Rubberknees · Apr 1, 2022

tomcat59alan said:
Rimmer Bros £185.21 Inc vat.

How much. Thats taking the wee wee

tomcat59alan · Apr 1, 2022

Rubberknees said:
Crikey 1 in 6, What a pair we are I was given 1 in 3 At least for me now I've had tests I'm good to go. I'll bag up some of my good luck and send you some

I got better odds at Ladbrokes.

Rubberknees · Apr 1, 2022

tomcat59alan said:
I got better odds at Ladbrokes.

RangeRoller dt · Apr 2, 2022

It’s a little oiltrap/valve. There should be slight negative pressure in the cam cover so as air is drawn from the air filter it draws a little through this trap to create it in there.

If you replace with a pipe it will push smog through like an EGR. Take it off and swill it with petrol you will see how much gunk is in there. Tick the engine over with it off you will see puffs of smoke
The awkward bit is reassembling without breaking the new seals. You need a good rtv. There’s 2 pipes on the trap with jubilee clips. One connects to a grommet on the intercooler feed, the other on a plastic 90 (be careful not to snap) going into the cam cover.

(Ignore strip down you only need take covers off)
Both these joins need sealing up while clipping everything back on without disturbing it.
Worst part is thoroughly cleaning all the old oil to get a good seal. Dirty horrible job

New unit is silly money. And will still need sealing up same as your one

tyke100 · Apr 2, 2022

Well. Need to see what I can use to deal this thing up
not paying near 200 quit for a peace of plastic. Lol.
May just use oil resistant silicon.

tomcat59alan · Apr 2, 2022

tyke100 said:
Well. Need to see what I can use to deal this thing up
not paying near 200 quit for a peace of plastic. Lol.
May just use oil resistant silicon.

Don't forget to replace the o ring I was lucky my mate got a big set of them, from Aldi I think, and one of them was the right inside diameter and the wall thickness was slightly larger so it was a tight fit.
