my s3 has no hazard lights i have aquired a switch and cable isnt a problem and shouldnt have a problem working out what to do but where is the flasher unit and is it just a simple case of useing a double pole switch to bye pass 1 of the indicatort stalk switches and the other side to link out the left and right if its not as simple as that or all of its diffucult to get at then i wont bother but a few times i could have done with hazard lights and would like to know if theres a simpler way of doing it
hazard lights on s3
- Thread starter sweets
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
cartman690
New Member
- Posts
- 623
- Location
- south west (Bristol)
Good thread chap could do with hazzards on my s2a... I recall my old dad fitting hazzards to a mk 2 cortina in the 70's it was a off the shelf kit from smiths or something...someone will have more info. I dont think it can be too comlex though or my ol chap would have burnt the car out...
Lazy Landy
New Member
- Posts
- 1,372
- Location
- Durham
Just stick one of em Orange flashy light things on the top!
Grippa
New Member
- Posts
- 12,310
- Location
- Where the winches aren't.
Where's Daft when you need 'im, he'll know......................?
DAAAAAAAFT!
DAAAAAAAFT!
driving_mad
Active Member
- Posts
- 324
- Location
- Uk
come one guys, don't conform to modern technology.
keep it retro!
keep it retro!
Hi,
I fitted a hazzard switch to my series IIA, If you go to: Auto Electric Supplies and download the PDF catalouge there are some usefull wiring diagrams in the last few pages, You should then be able to work out how to wire it all up.....
Good luck!!
I fitted a hazzard switch to my series IIA, If you go to: Auto Electric Supplies and download the PDF catalouge there are some usefull wiring diagrams in the last few pages, You should then be able to work out how to wire it all up.....
Good luck!!
mondo
Banned
- Posts
- 7,631
- Location
- Yorkshire / Buckinghamshire
- Posts
- 83,300
- Location
- Embasinga stocæ
yu rang?
mondo
Banned
- Posts
- 7,631
- Location
- Yorkshire / Buckinghamshire
Ferkin Hell Lurch !
Wot yer done to our daft ?
Wot yer done to our daft ?
- Posts
- 83,300
- Location
- Embasinga stocæ
wot? I is ere.
- Posts
- 83,300
- Location
- Embasinga stocæ

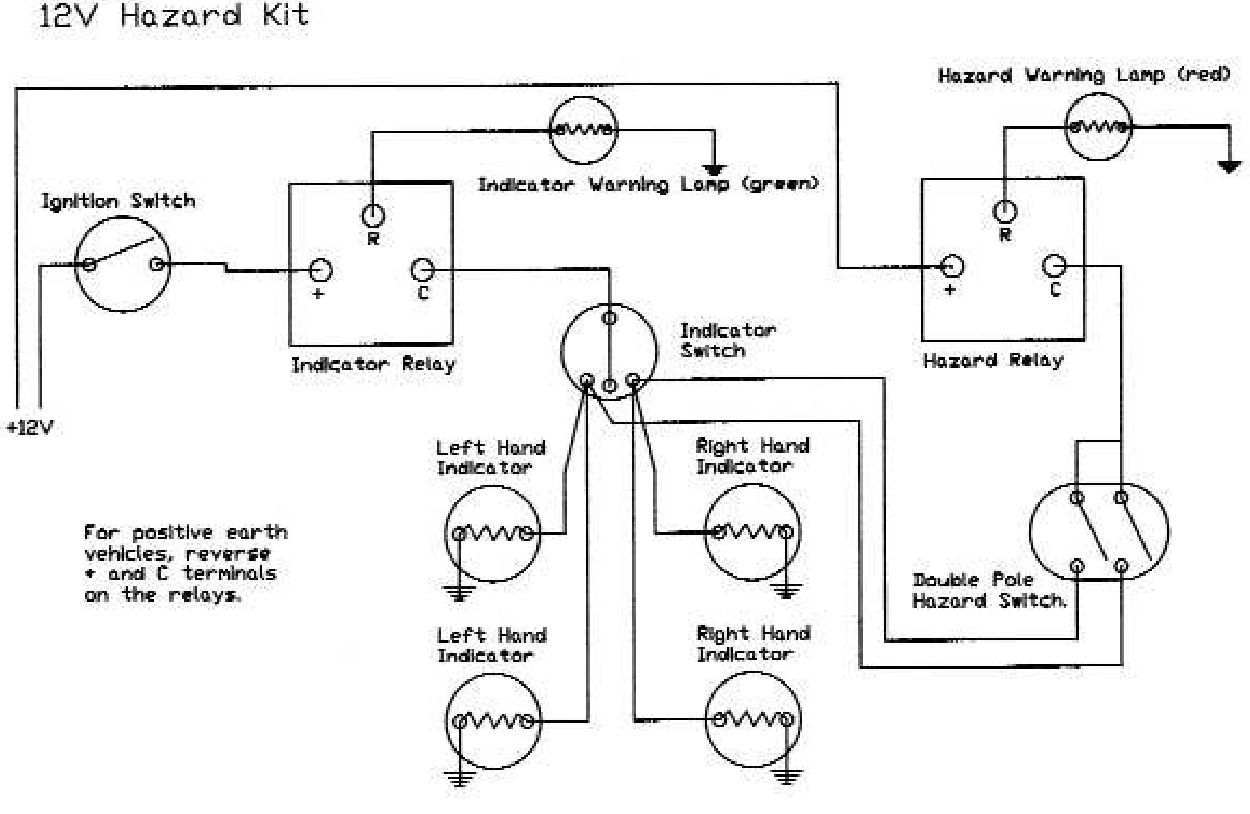

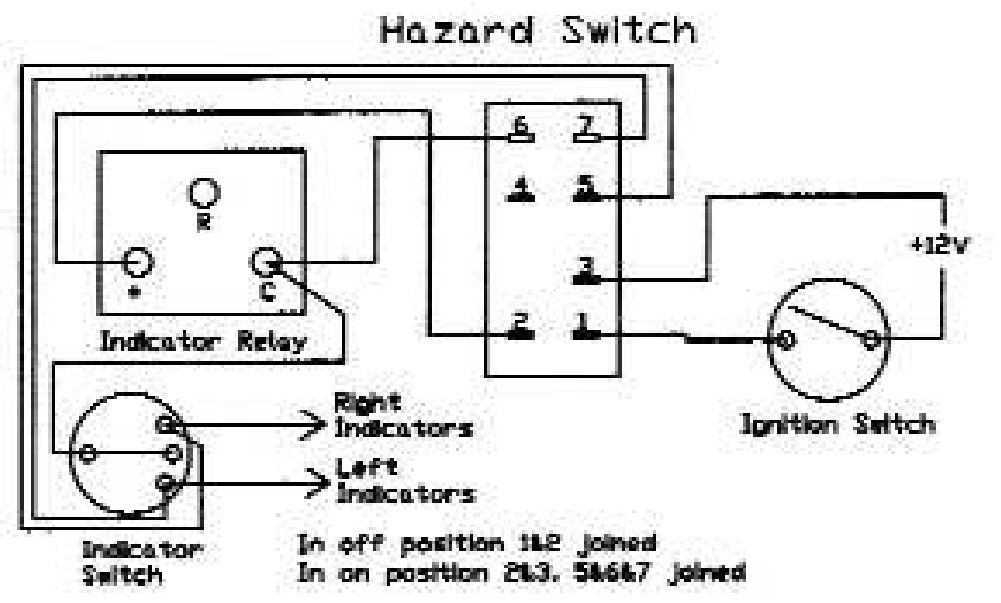

Is this wot yu wanted?
dont forget to change the flasher unit for one that will take the extra load!
12V flasher units.
Electro-mechanical flasher relays.
Ref.Indicators.Hazards.Towing.
RFL12x21w(+5w)NONO
RFL2H NO4x21wNO
RFL42x21w4x21wNO
Electronic flasher relays.
Ref.Indicators.Hazards.Towing.
RFL32x21w(+5w)4x21w+(5w)NO
RFL52x21w(+5w)4x21w+(5w)NO
RFL62x21w(+5w)4x21w+(5w)3-6x21w+(5w)
RFL72x21w(+5w)4x21w+(5w)3-6x21w+(5w)RFL92x21w(+5w)4x21w+(5w)NO
Terminal reference guide.
UK, USA.Germany.France.Japan SupplyX,B,+15,49+BEarth-,E31-EInd switchL49aC,COMML Vehicle w/lampPCR,Rep Trailer w/lamp
C2R2
dont forget to change the flasher unit for one that will take the extra load!
12V flasher units.
Electro-mechanical flasher relays.
Ref.Indicators.Hazards.Towing.
RFL12x21w(+5w)NONO
RFL2H NO4x21wNO
RFL42x21w4x21wNO
Electronic flasher relays.
Ref.Indicators.Hazards.Towing.
RFL32x21w(+5w)4x21w+(5w)NO
RFL52x21w(+5w)4x21w+(5w)NO
RFL62x21w(+5w)4x21w+(5w)3-6x21w+(5w)
RFL72x21w(+5w)4x21w+(5w)3-6x21w+(5w)RFL92x21w(+5w)4x21w+(5w)NO
Terminal reference guide.
UK, USA.Germany.France.Japan SupplyX,B,+15,49+BEarth-,E31-EInd switchL49aC,COMML Vehicle w/lampPCR,Rep Trailer w/lamp
C2R2
Attachments
Fatrover
Well-Known Member
- Posts
- 922
- Location
- Argyll, Scotland
never mind all that electoniical electrickery.. jest stick a n amber flasher on yer roof !!!!!
mondo
Banned
- Posts
- 7,631
- Location
- Yorkshire / Buckinghamshire
- Posts
- 83,300
- Location
- Embasinga stocæ
as I have just been reminded - can be supplied with all wiring - at huge expense. pm me
Grippa
New Member
- Posts
- 12,310
- Location
- Where the winches aren't.
Aye put one on each corner
Job done
Nah, it'd look like a dalek fallen over.
alistair-lee
New Member
- Posts
- 109
- Location
- scotland
you could cheat and put a seprit flashur unit on fur the hazurd swich and scotch block seprite wires te each corner
Fatrover
Well-Known Member
- Posts
- 922
- Location
- Argyll, Scotland
Aye put one on each corner
now that wud just look ****in stupid... i meant wan o' them battery powered ones, which if ye brak down, ye can retrieve from yer cubby box an whack it oot o the windae ontae the roof.... american cop style !! GRAND !!!
- Posts
- 83,300
- Location
- Embasinga stocæ
ffs - wot is this place - bodgit inc!?
Fatrover
Well-Known Member
- Posts
- 922
- Location
- Argyll, Scotland
Ooooohhh... sorry professor!!!! awa back to yer drawin board
- Posts
- 83,300
- Location
- Embasinga stocæ
where yu from - fookin Wales?
