Handbrake lever picot spacers - correct order?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Webley1991

Well-Known Member
Posts
2,579
Location
London
I reassembled the handbrake lever for my series 3 earlier.

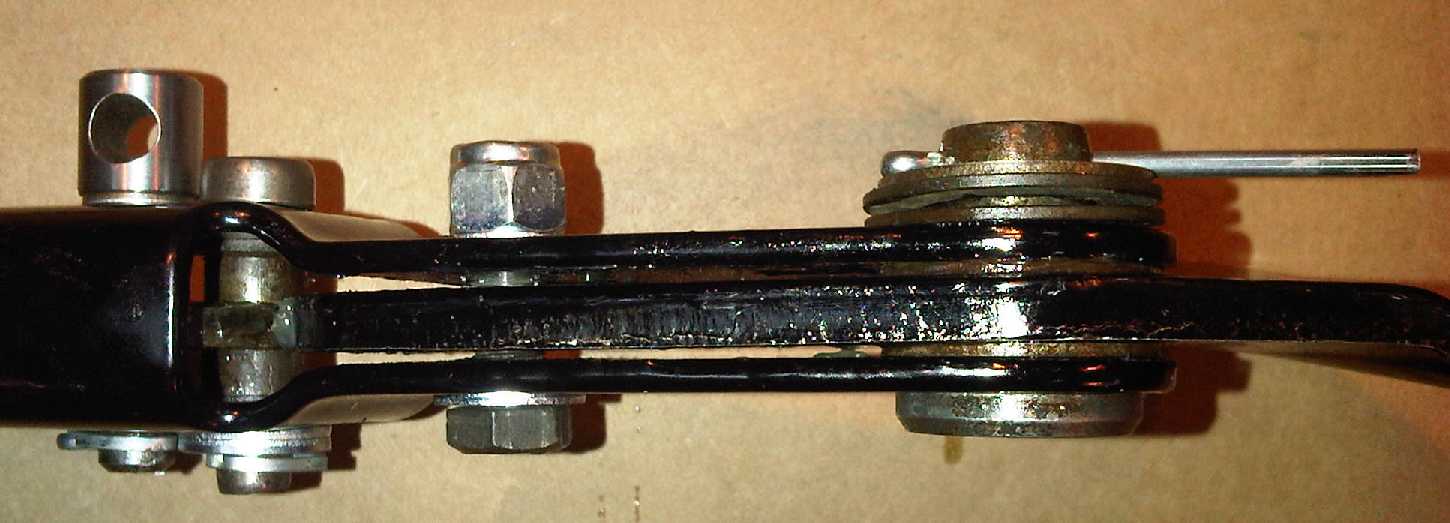

From the photo, can anyone confirm if the spacers on the pin that connects the ratchet plate to the lever are in the correct order? The manual is not clear on what should be where in relation to the lever. I haven't bent the split pin yet just in case anything is wrong.

Thanks for any info.


Attachments

  • handbrake_reassembled.jpg
    64.4 KB · Views: 177
Last edited:
Thanks for the reply.

IF ANY MODS SEE THIS THREAD, COULD THEY PLEASE REPLACE "PICOT" WITH "PIVOT" IN THE TITLE.
