Disco 3 (LR3) Gear selector illumination

Flukierspark · Mar 23, 2019

I own a 06 Automatic Discovery 3 in which the gear illumination has stopped working is this a lamp that has stopped working or another issue, would love to know your thoughts/solutions on this.

If it is a lamp what type and how do I get to it.

Thanks all in advance

sierrafery · Mar 23, 2019

The selection indications are shown by a module with LEDs no bulb or other intercheangeable things involved, if you are not very familiar with electronics you can't do much eventually check those connectors C2790 and those linked to it to not be loosensed

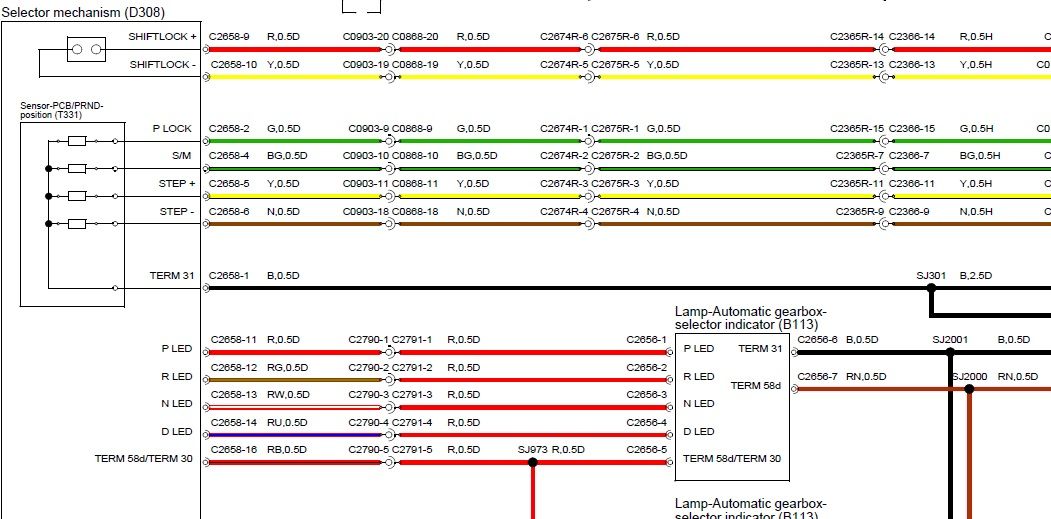

D3 autobox selection indicator diagram.jpg
