Just finished these so I thought I'd share them with you... Front Towing point pictures - designed to bolt onto the front chassis - make a pair of them up - identical - and they bolt to the >>>
1 x chassis bolt hole wher the factory fitted tie down eye is
1 x bottom bolt on the steering box (empty on the other side)
1 x Chassis hole about 12inches further back....

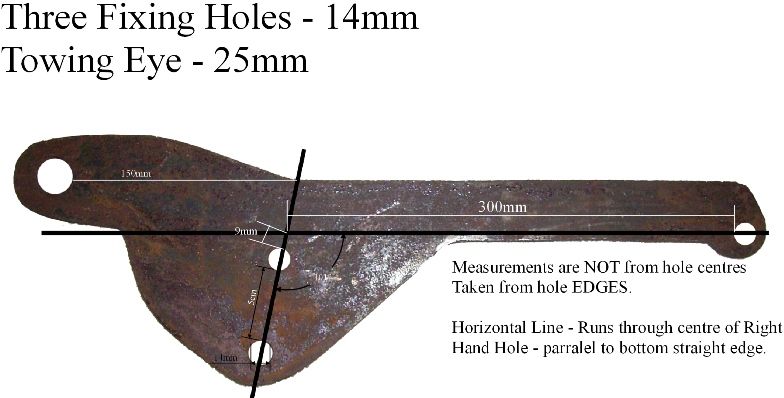

I am not a technical drawing expert by any long shot so I hope that the measurements I took make sense - thay are all based on parrallel lines running along the length of the brackets...
NB: I would always measure twice - cut once - so after making up the overall piece - check it under the car before drilling all 3 holes...
the ones I have a re made out of 10mm steel plate... torch cut to get the shape...
I have also seen people attach a tube behind the large towing eye so that you can put a 90/110 jack adapter into it and lift the front corners....
Also attached is a photo of a rear jacking point designed to fit onto the standard tow bar... has anyone got one of these and can take some measurements.... what are the centre-to-centre dimensions for the 2 tow bar bolts? Overall dimensions etc...????....
Cheers, Tony.
