Front suspension bush replacement

adyw

Member

Posts

54

Location

plymouth

• Sep 9, 2023

• #1

A little help gents.
So I've replaced the bushes top and bottom on my front shock. All went smooth untill the last nut.

How do you get the last bottom nut back on. I'm about 3mm short for the nut to pick up the thread due to the new bushes.
I've tried putting in hot water, jacking the car. Currently the Bush is clamped in a vice for a few hours in the hope it might squash a little



chrisstdt

Well-Known Member

Posts

923

Location

scottish borders

• Sep 9, 2023

• #2

adyw said:

A little help gents.
So I've replaced the bushes top and bottom on my front shock. All went smooth untill the last nut.

How do you get the last bottom nut back on. I'm about 3mm short for the nut to pick up the thread due to the new bushes.
I've tried putting in hot water, jacking the car. Currently the Bush is clamped in a vice for a few hours in the hope it might squash a little

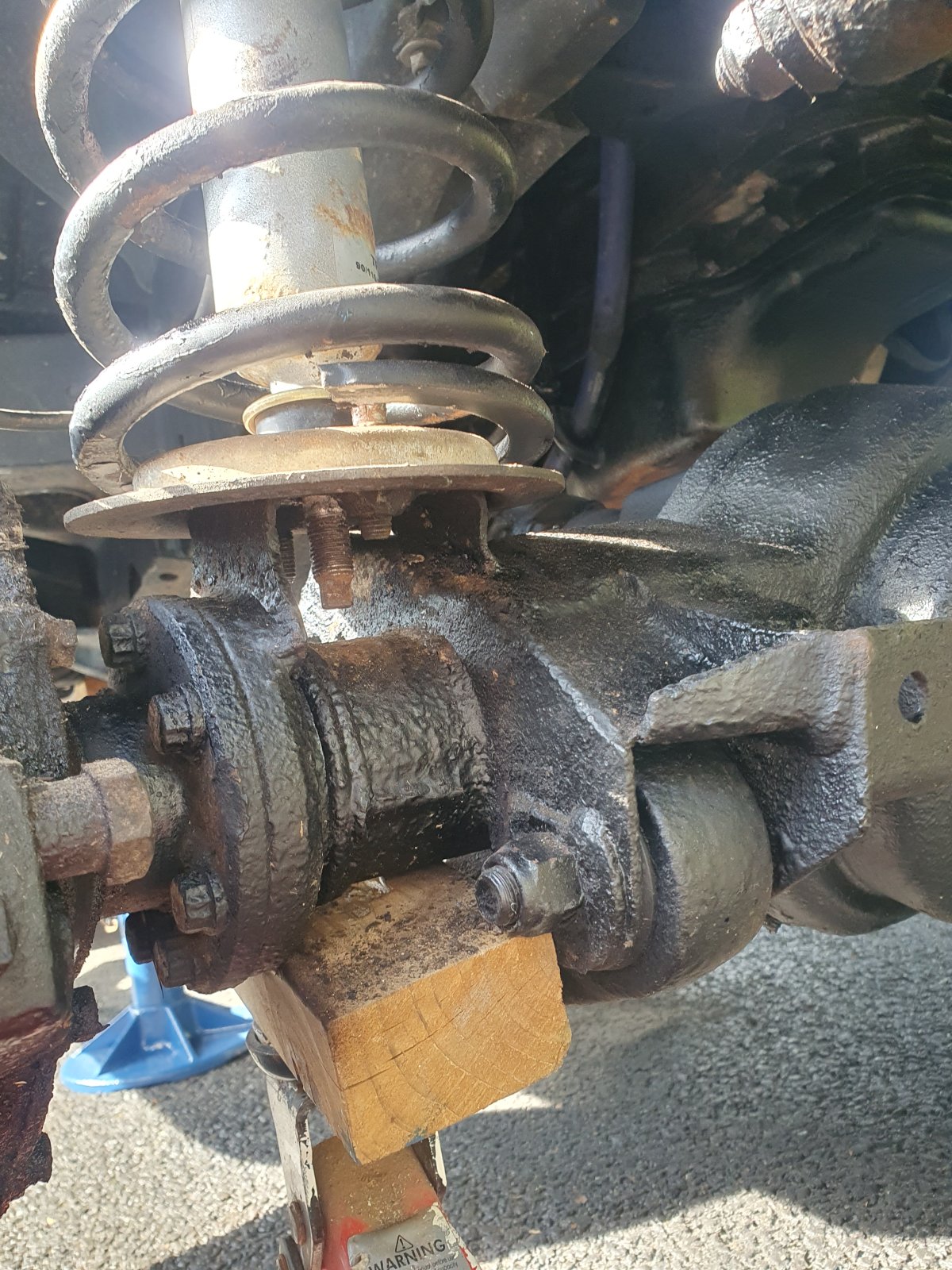

View attachment 297444

Click to expand...

Jacking it up won't help as tge shock just pushes up
In the past I've had to cut one of the rubber bushes in half to get the nut on



marjon

Well-Known Member

Full Member

Posts

16,680

Location

Bulgaria

• Sep 9, 2023

• #3

Big ratchet strap between axle and chassis?

J



tottot

Well-Known Member

Posts

8,001

Location

west wales coast

• Sep 9, 2023

• #4

Leave the washer , the thick one behind the nut off, find a thin washer that allows nut to screw on. Do it up and leave for a bit.[ hour] Undo remove thin and fit original washer. Much the same as your vice method.



adyw

Member

Posts

54

Location

plymouth

• Sep 9, 2023

• #5

Thank's gents. Between leaving it crushed in a vice for a while and then jacking under it as had as I could, manger to get the nut on.



KISSMYAURA

Well-Known Member

Posts

2,799

Location

KENT

• Sep 9, 2023

• #6

looks like a terrafirma, will rust out in a few weeks so no biggy! lol
