Freelander V6 2.5 - gearbox identification

F

Feelseekee

New Member

Posts

5

• Dec 31, 2023

• #1

Hi, can anyone help me identify what kind of automatic gearbox I've got? I thought it was jatco jf506e, but when I tried to find this level check bolt underneath it is not there. Was there different automatic gearboxes for v6? I'm bacause I want to make sure I'm getting right oil for it - ravenol atf jf506e?



Nodge68

Well-Known Member

Posts

32,794

Location

Cornwall

• Dec 31, 2023

• #2

It's a Jatco. The level bolt is sometimes an Allen head bolt.



F

Feelseekee

New Member

Posts

5

• Dec 31, 2023

• #3

Nodge68 said:

It's a Jatco. The level bolt is sometimes an Allen head bolt.

Click to expand...

It looks like a regular bolt to me, right?



Attachments

•

  272.9 KB · Views: 91

Nodge68

Well-Known Member

Posts

32,794

Location

Cornwall

• Dec 31, 2023

• #4

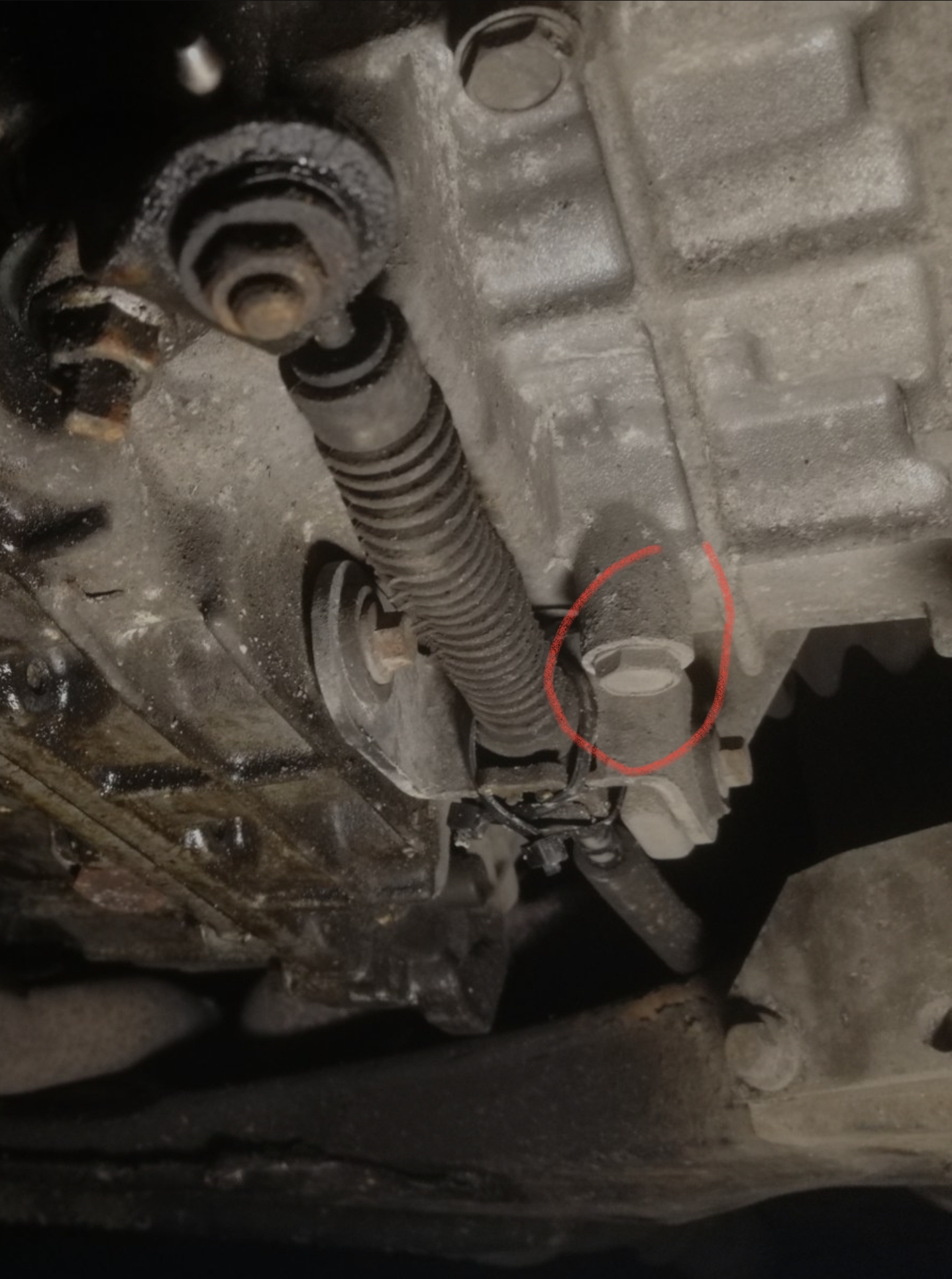

I've marked the level plug on your picture.



F

Feelseekee

New Member

Posts

5

• Jan 1, 2024

• #5

Nodge68 said:

I've marked the level plug on your picture.
View attachment 306358

Click to expand...

Ok, thanks.
