Wanted Freelander 1 TD4 Rear/Lower Engine Mount KKH000070

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Whistler

Member
Posts
98
Location
Devizes, Wiltshire UK

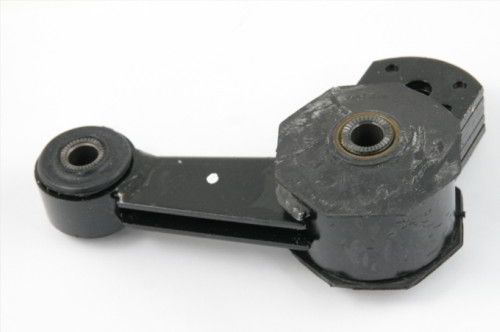

I'm looking for a "bargain" rear lower engine/gearbox mount for a TD4 Freelander, LR part number is KKH000070, its the L shaped mount with a big bush in the middle and a little one at the end. Must be new or at least the bushes must be in excellent condition.
Like this:

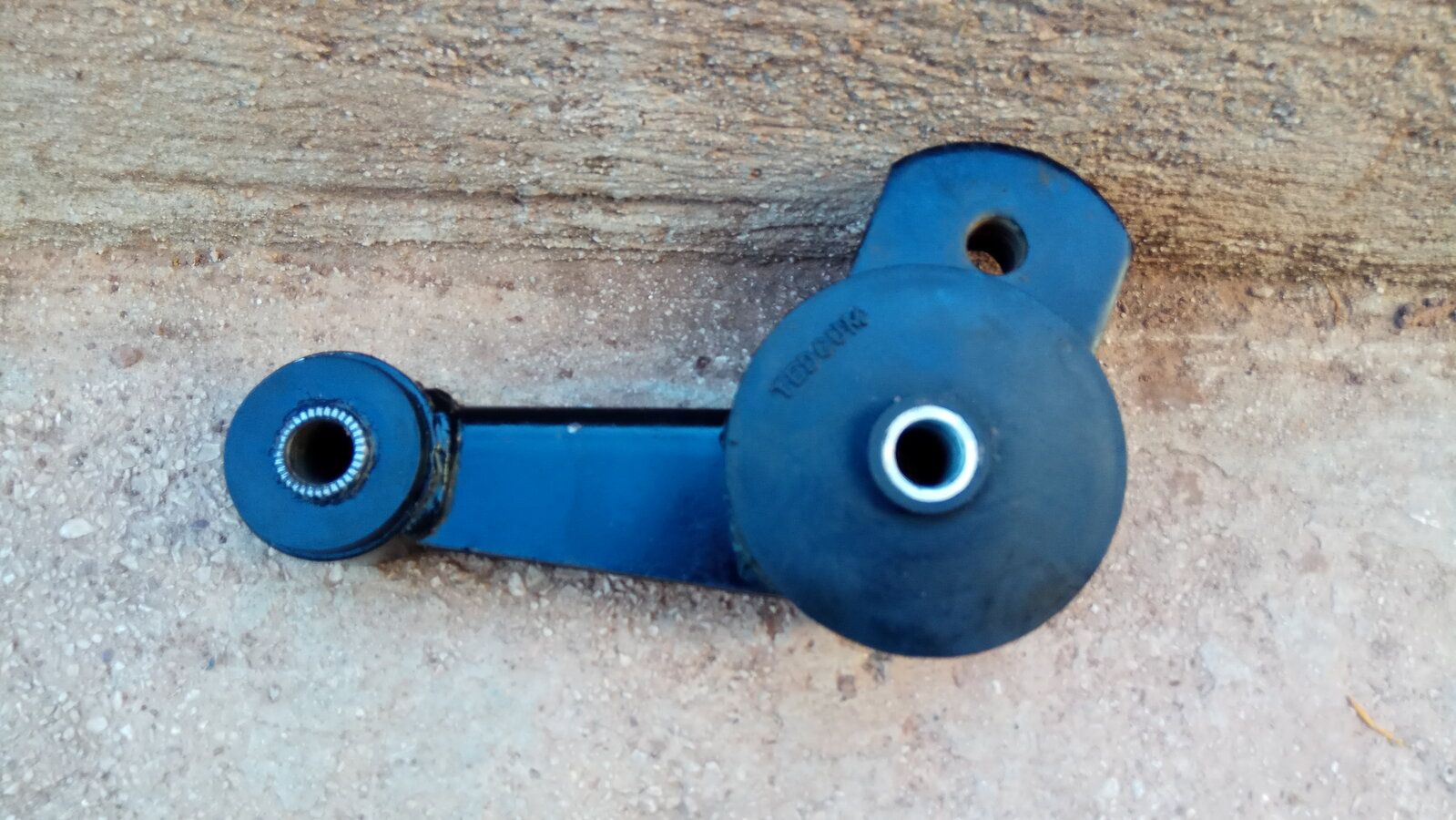

I know it’s an old topic but I haven’t found anywhere the exact answer as to whether replacement bushing fit this bracket. Yesterday I successfully solved the problem with tedgum bushings. Part numbers are 00603794 and 01160779.
For smaller bushing there is no metal part inside, so you must cut old bushing and use that part. After placing smaller tire in the bracket, to install the metal part I made pointed metal guide from an old car screw to spread the tire without damage. I used Vaseline for lubrication.


Attachments

  • IMG-07a1c118506d86bb759dcbbd171cd276-V.jpg
    217 KB · Views: 120
