Freelander 1, Td4, 2004 High Pres Fuel pump screws.

Hard Drive · Mar 17, 2020

Having replaced the Torx screws on my Freelander 1, Td4, 2004, M47 Engine High Pressure Fuel Pump and its pressure regulator, I thought the following info might be of use to others.

There are 12 main-body screws, plus 2 for the regulator.

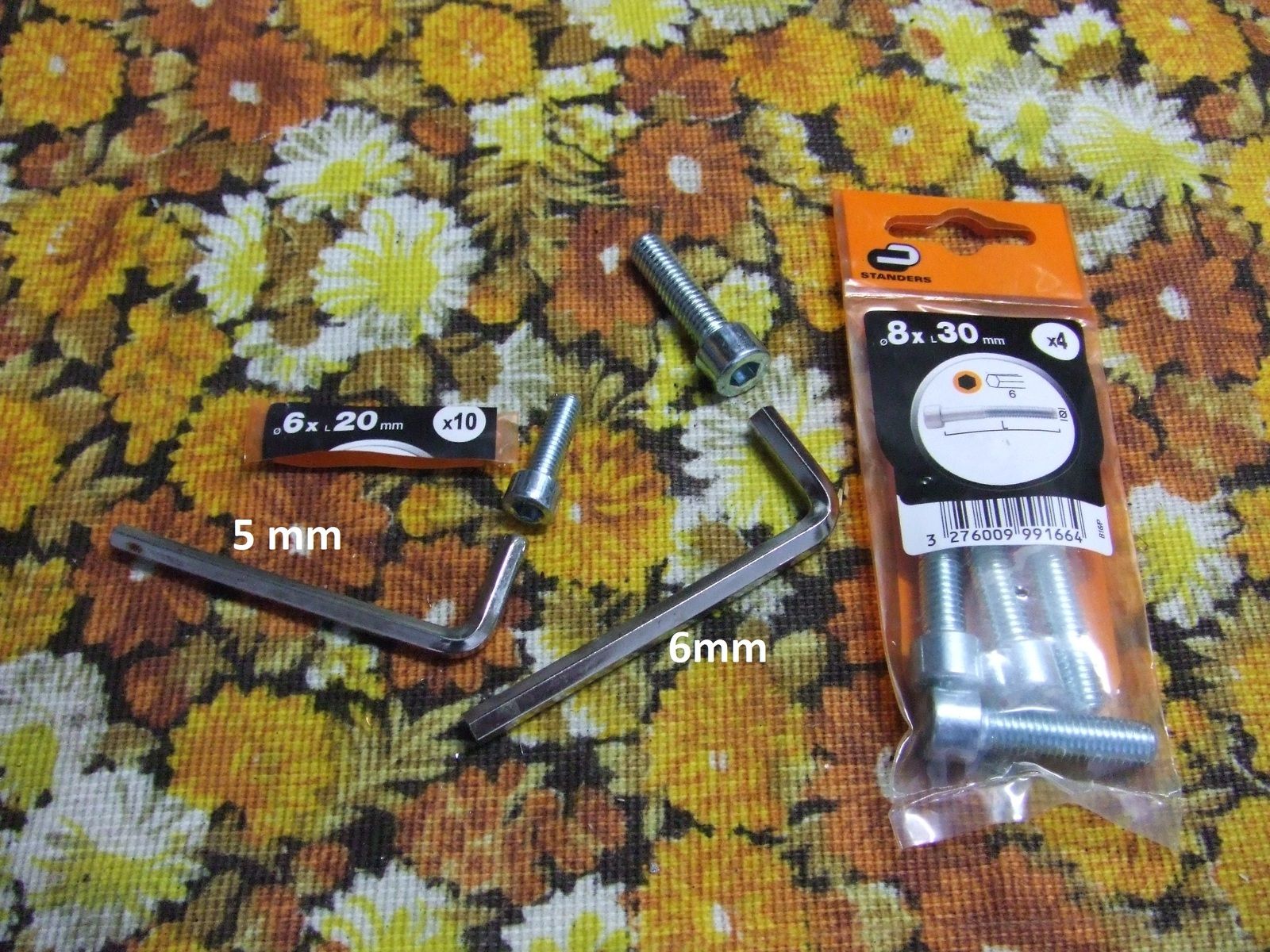

See the photo for sizes etc.

The Allen Key sizes are given too.
You will need to cut the screws to length as well.

Arctic2 · Mar 17, 2020

What was wrong the original ones?

Hard Drive · Mar 17, 2020

Arctic2 said:
What was wrong the original ones?

I discovered they, the original Torx screws, were made from mild steel that rounded-off easily. Rusty as hell too, which is probably why!!
This meant that out of the 12, 3 were difficult to remove and needed drilling-out followed by an Easyout!

Arctic2 · Mar 17, 2020

Hard Drive said:
I discovered they, the original Torx screws, were made from mild steel that rounded-off easily. Rusty as hell too, which is probably why!!
This meant that out of the 12, 3 were difficult to remove and needed drilling-out followed by an Easyout!

Thank you for your reply, seems an excellent modification so thank you for sharing
