FPR leak on startup following new cylinder head

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

versteckt

Member
Posts
18
As per my other thread, I've recently changed the cylinder head (10p) on my TD5 Defender 110.

I was unable to start it, as when I turned it over the FPR started leaking fuel. I ordered a new FPR off eBay as the old one was a few years old. I fitted it and the same thing has happened again.

See video:


...and do excuse the Mrs getting distracted by a cat.

The filter/oring were fitted to the cylinder head first and as far as I can tell the gasket only goes on one way. The bolts were torqued to 25nm.
I'm a bit at loss as to where to go from here.

Any suggestions?

Cheers!

Last edited:

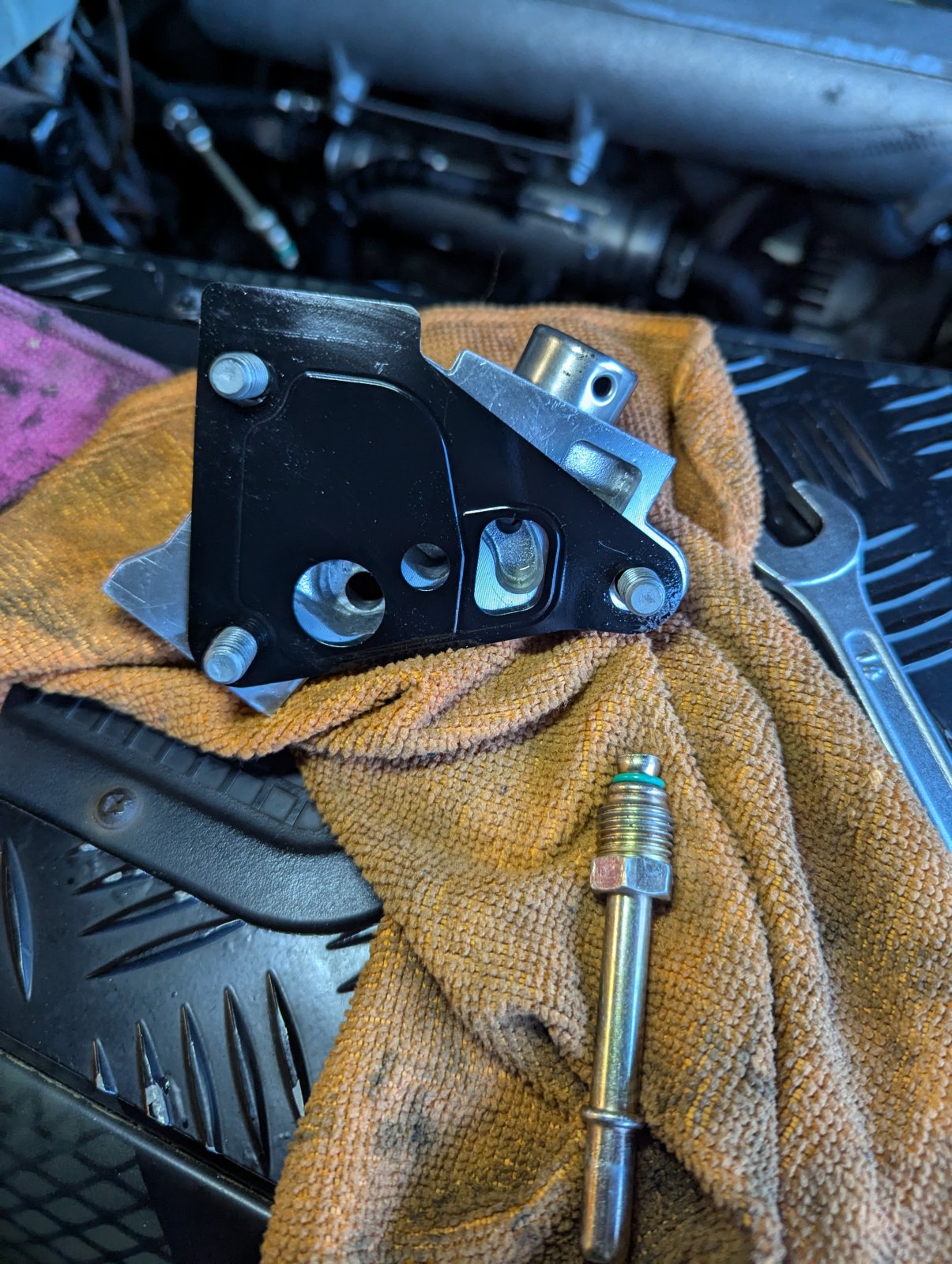

Picture of FPR and gasket orientation and cylinder head mating surface with o-ring:


Attachments

  • PXL_20250308_173959385.jpg
    401.3 KB · Views: 20
  • PXL_20250308_174108715.jpg
    402 KB · Views: 20
Solved.

The FPR came supplied with the wrong gasket. Despite this being a 10p engine, it's using the FPR gasket often marketed/named 15p.
