LINK: EXTENDED 2ND ROW FOOTWELL TO REAR FLOOR UPSTAND, FRONT OF REAR TUB – LR DEFENDER 110 & SERIES 2/3 109″ (4 OR 5 DOOR).
Linked above is the part. Has anyone fitted fitted one of these before?
I am struggling to get everything to line up, all be it was the end of the day and it was getting dark when I tried. I am trying to put it over the rear floor as it cannot go under due to the top hat sections and do not want to cut the floor off because then I would lose the top hat supports. Is this how it is intended to be fitted or is the intention that you have no floor left and it has been cut off?
Below are some pictures, please excuse the green glow, it was very wet so was working under the cover rather than removing it. I am not too worried about the distance from the mid crossmember brackets as I know this is bent and the chassis brackets it is welded to are also bent. It is more trying to get the two angle extensions to line up on the sloped wheel box sections. I can get one side lined up but there is then a gap on the other side and I cannot close the gap because it is already sitting flush against the edge of the floor. Am I doing something wrong or do I need to trim a couple of mm off the front edge of the floor to get it all to fit?

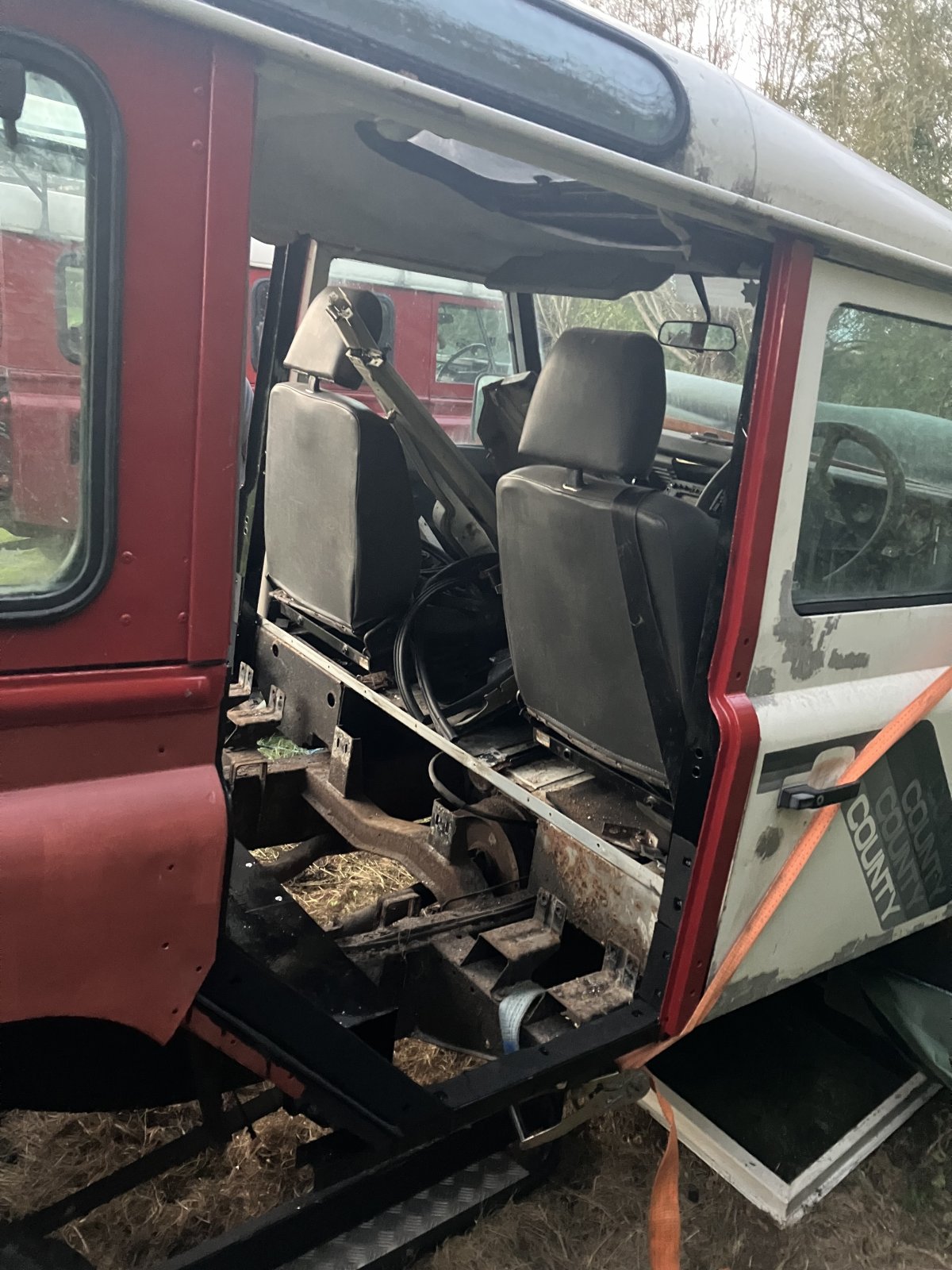

mid crossmember bracket gap, not the same on both sides, but crossmember is bent:

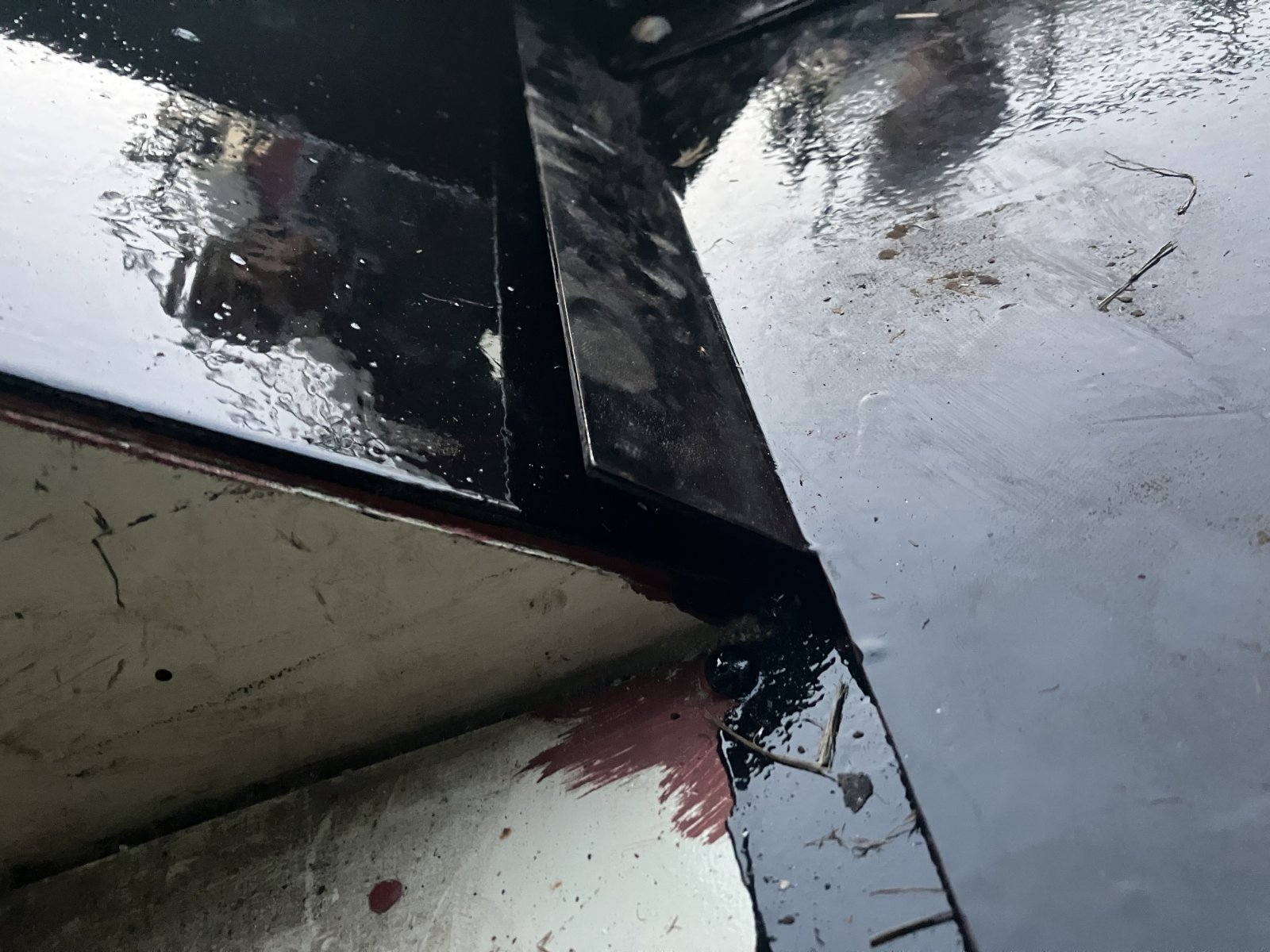

lined up flush and correct on passenger side but has a gap on the drivers side:

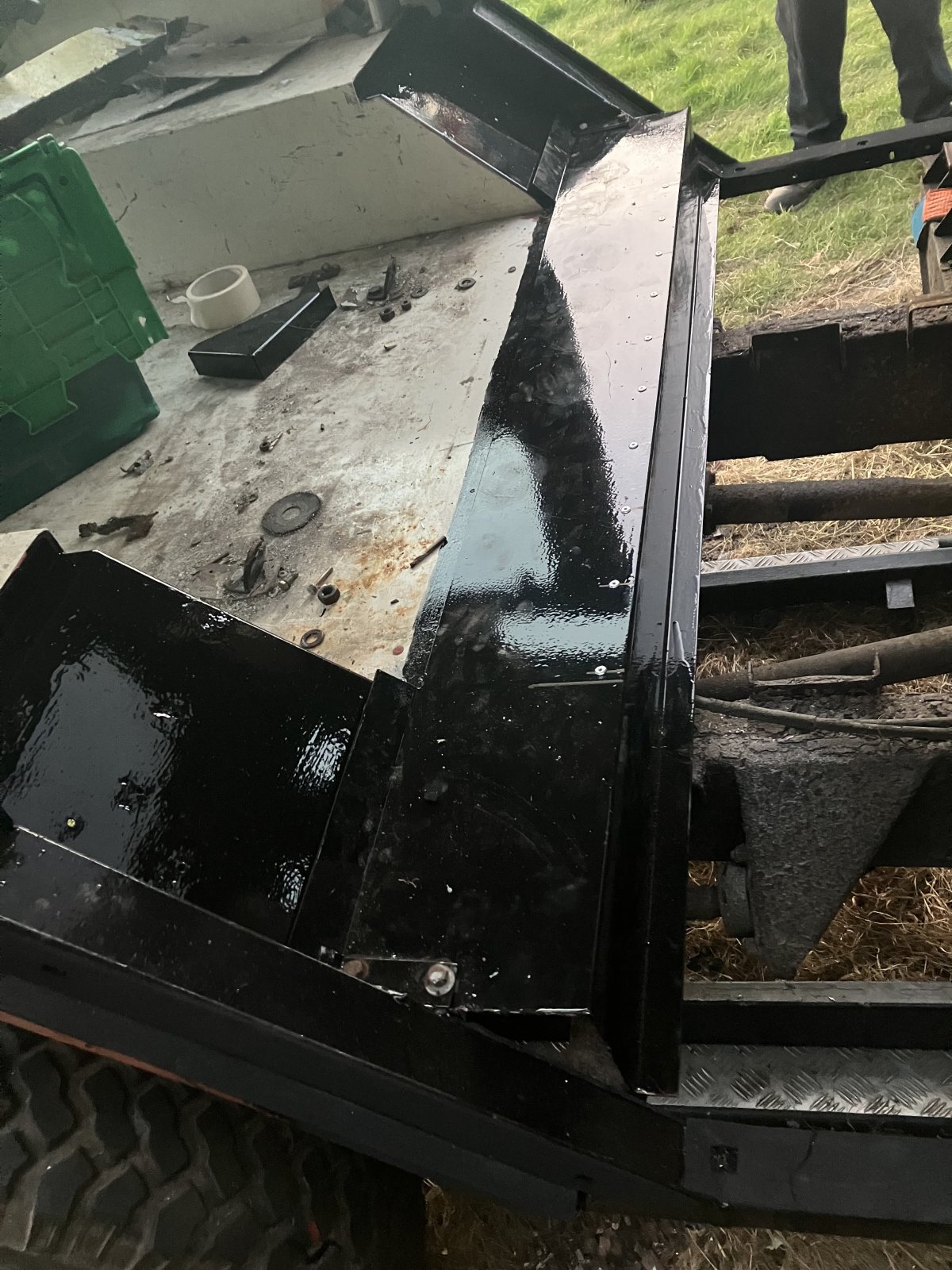

front edge of the rear floor still original and untouched currently also still has the top hat sections
