Extra relays/fuses

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Stim8ed

Stim8ed

Member
Posts
36
Location
Norway


Poking around in the motor and I noticed som extra wiring, relays and fuses… my TD4 has the housings for the long range driving lights, holes in the bumper and wiring there, but no lights. I am assuming the relays and fuses are for the long range driving lights… thoughts?

Additionally: where would one find a chip tuner in the engine compartment. When I bought it, they mentioned it might have one, but they didn’t know for sure

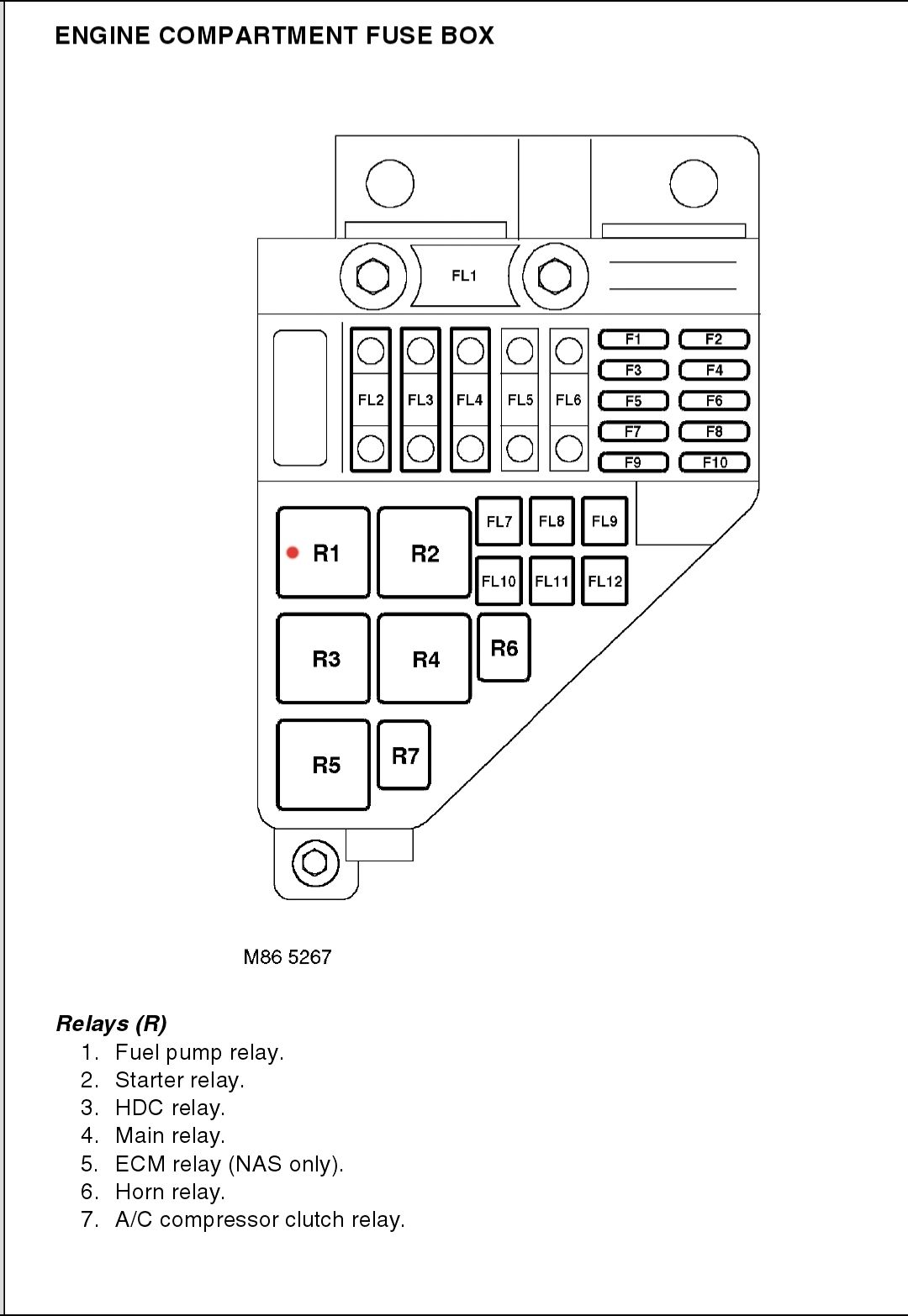

Also the engine compartment fuse box… I seem to be missing some fuses/relays/wires. Anyone know what these are?

Last edited:
Stim8ed said:
Poking around in the motor and I noticed som extra wiring, relays and fuses… my TD4 has the housings for the long range driving lights, holes in the bumper and wiring there, but no lights. I am assuming the relays and fuses are for the long range driving lights… thoughts?
Click to expand...

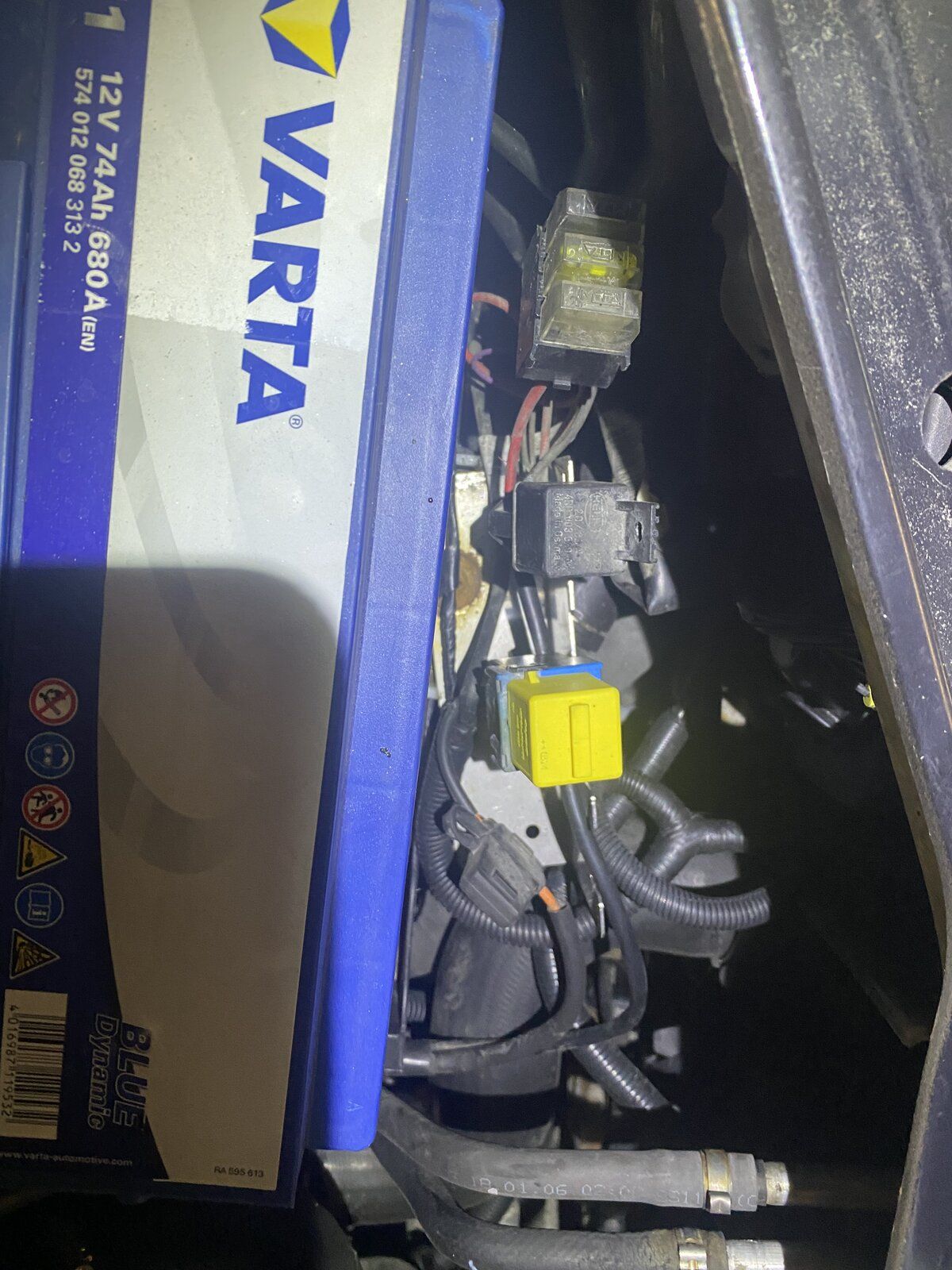

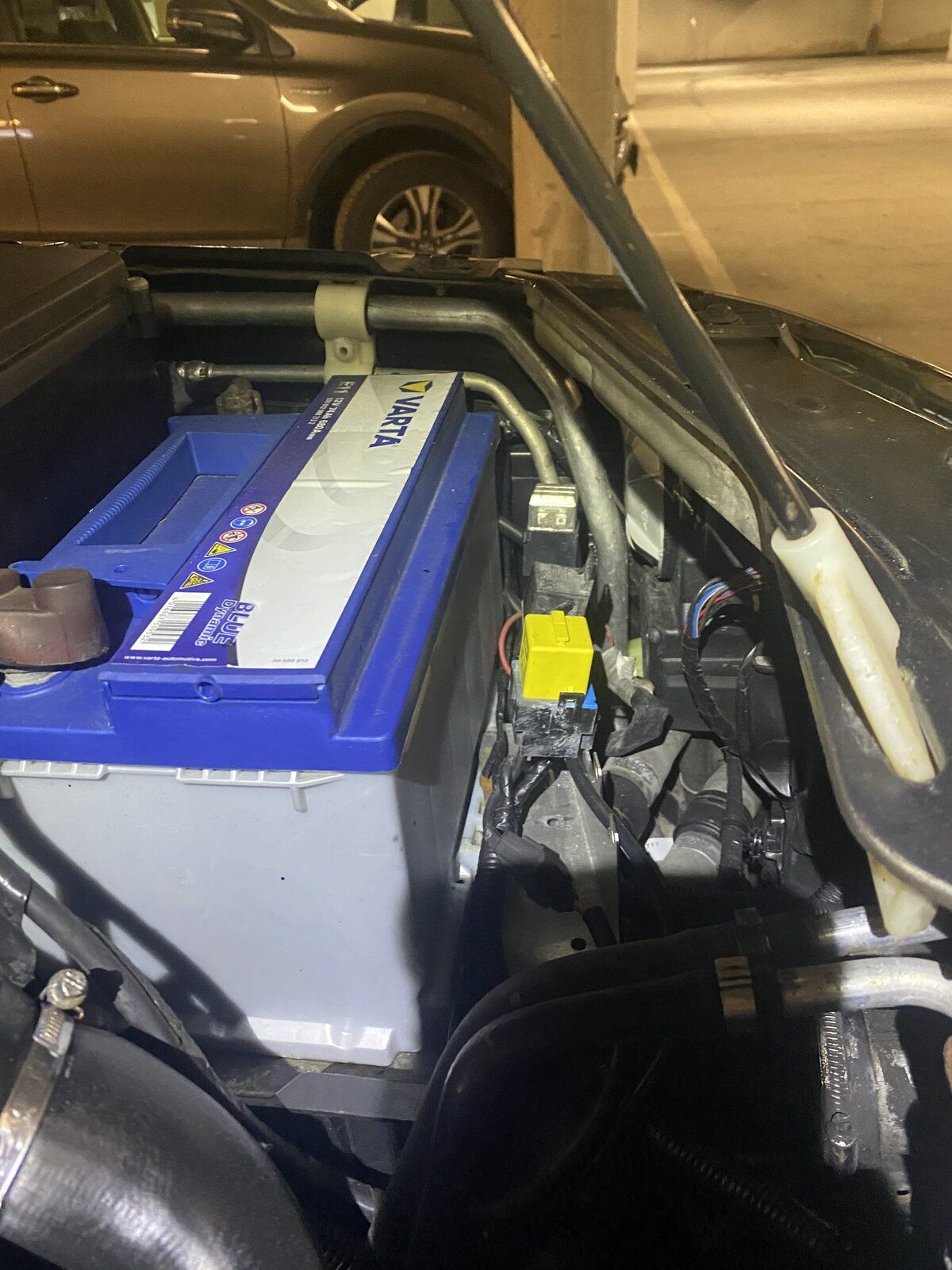

The relay for the long range lights is in front of the battery.
Stim8ed said:
Additionally: where would one find a chip tuner in the engine compartment.
Click to expand...
A tuning box needs to connect to the fuel rail sensor, and MAF sensor, so if there's only factory wiring connected to those items, then there's no tuning box fitted.
Stim8ed said:
Also the engine compartment fuse box… I seem to be missing some fuses/relays/wires. Anyone know what these are?
Click to expand...

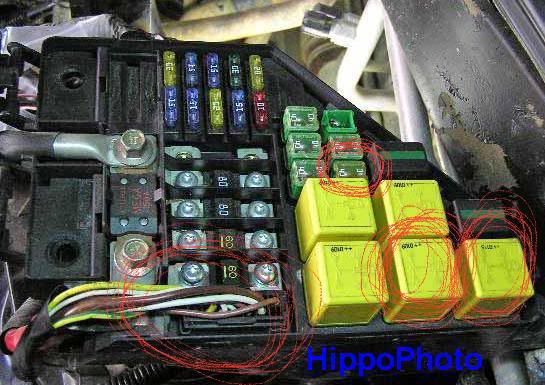

The pictures you have posted are for a V6, which needs a different set of relays and an additional harness in the fuse box compared to the TD4.

Nodge68 said:
The relay for the long range lights is in front of the battery.

A tuning box needs to connect to the fuel rail sensor, and MAF sensor, so if there's only factory wiring connected to those items, then there's no tuning box fitted.

The pictures you have posted are for a V6, which needs a different set of relays and an additional harness in the fuse box compared to the TD4.
Click to expand...
Yeah, borrowed the one photo from one of Hippo’s posts. So the TD4 has none of the wires on the side. The manual and the Haynes book don’t identify the relays I circled… curious what they are for was all
