Enyone Convercent with fitting an X brake to a series 2a gearbox

cornish rattler · Feb 23, 2019

Hi guys

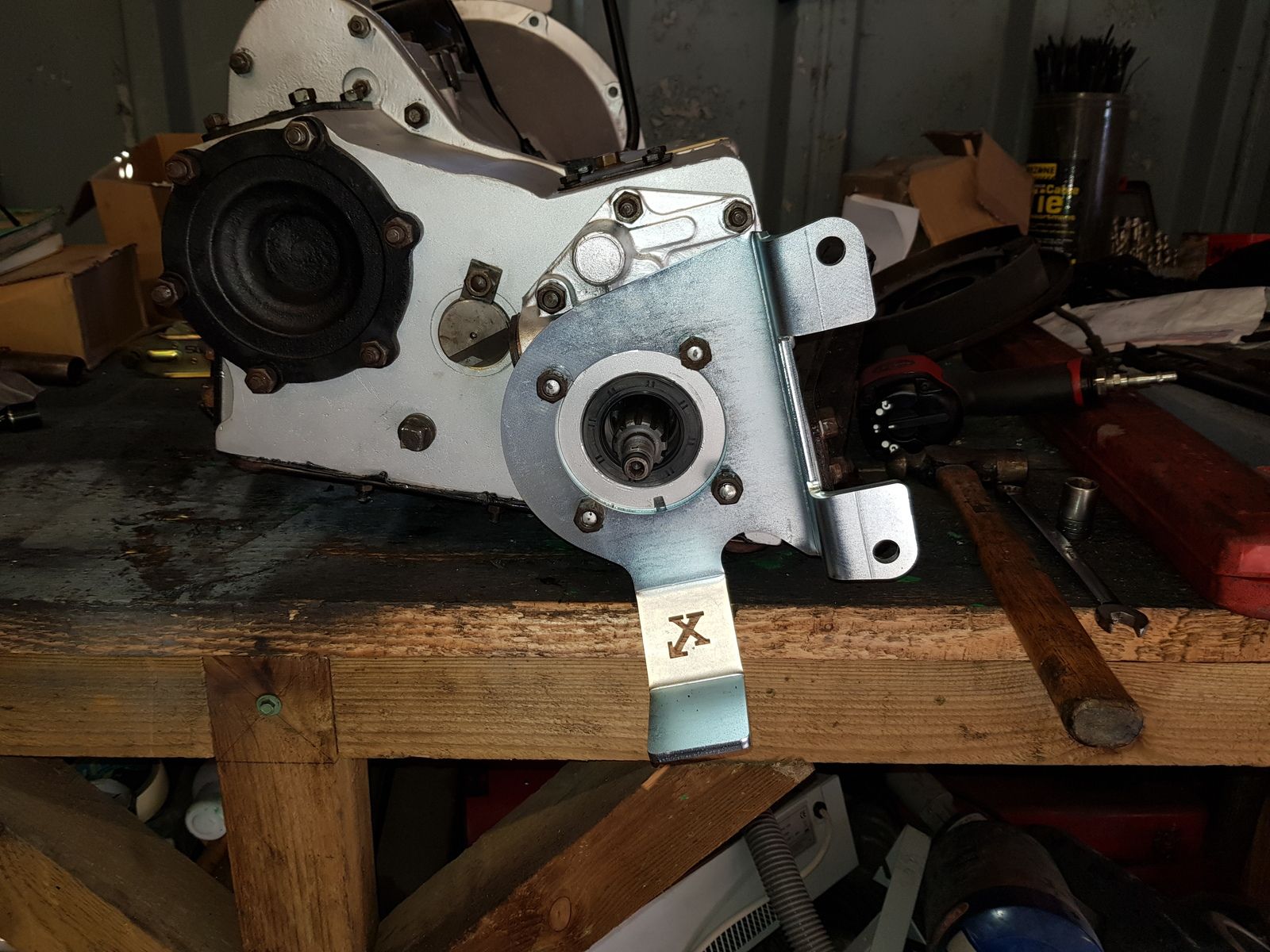

I've been fitting my new X brake kit today whilst I still had the gearbox on the bench then later fitted the gearbox back in, anyway I've fitted the new back plate, disc and caliper but still have one small L shaped bracket, one larger L shaped and 3 nuts and bolts one really long, one long and one short, any idea's where these go please

marjon · Feb 23, 2019

@DaveP_Tomcat fitted 1 recently he may know.

J

DaveP_Tomcat · Feb 23, 2019

@marjon & @cornish rattler

The L shaped plates sound like different sized stops
Could you take pics??

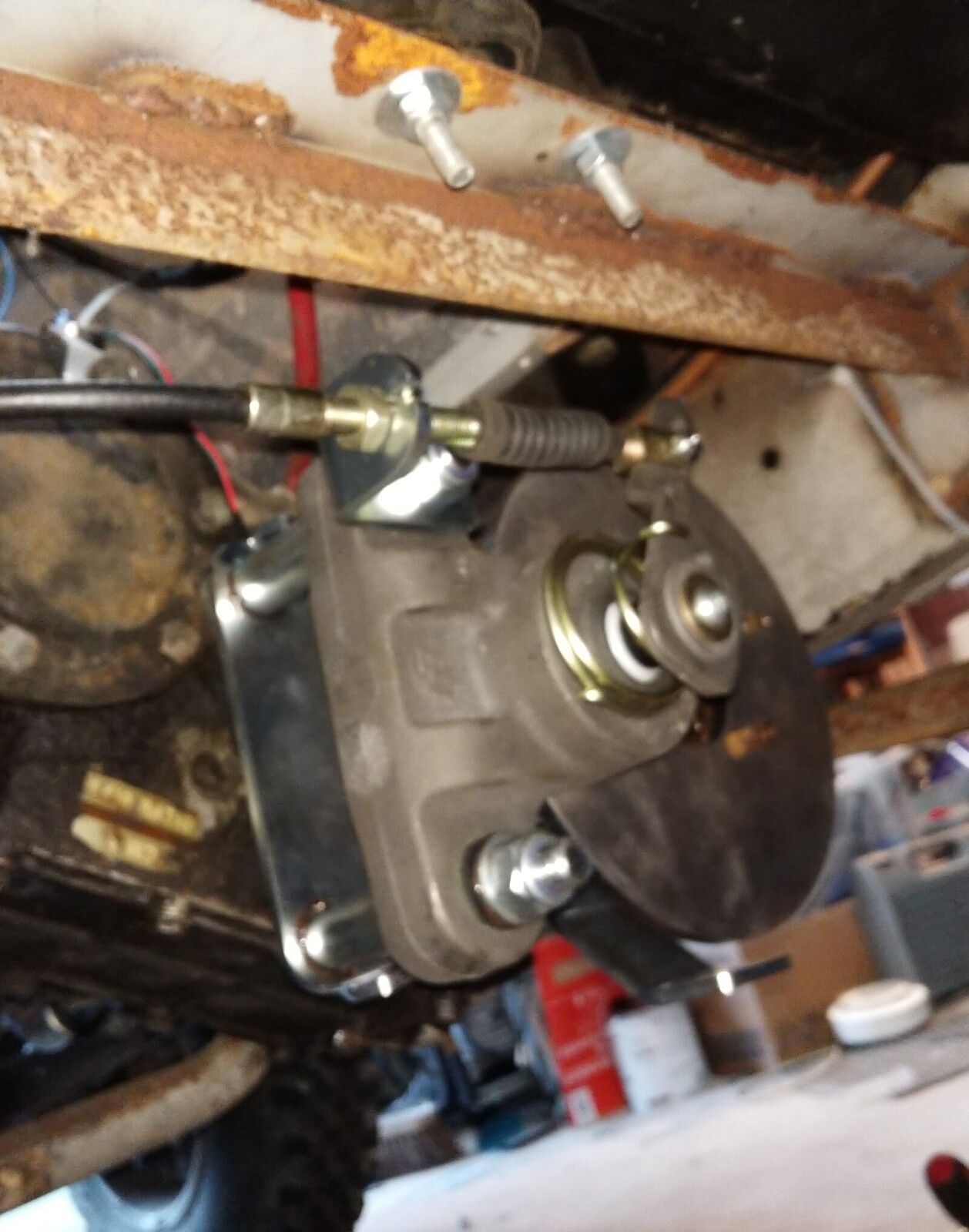

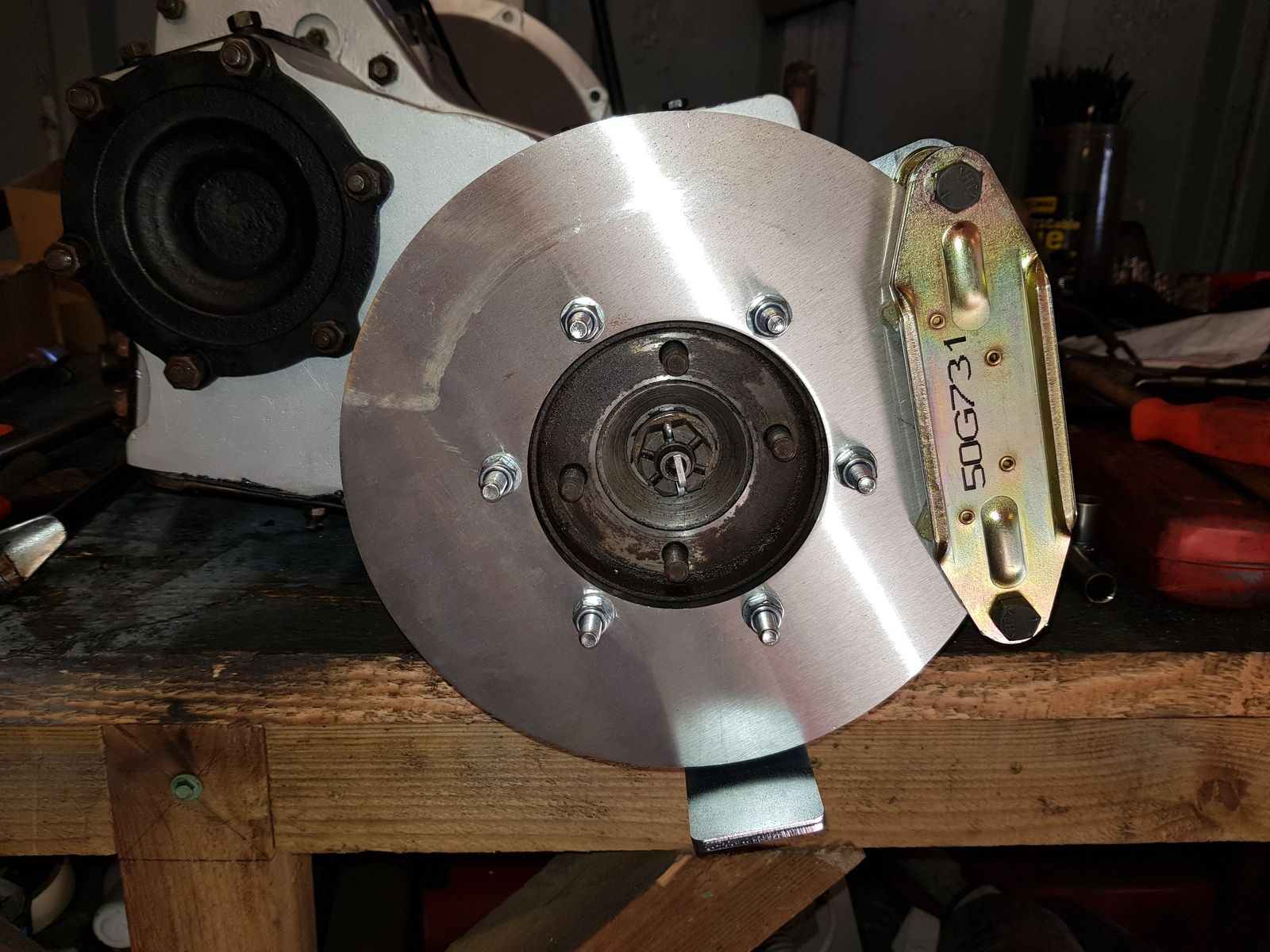

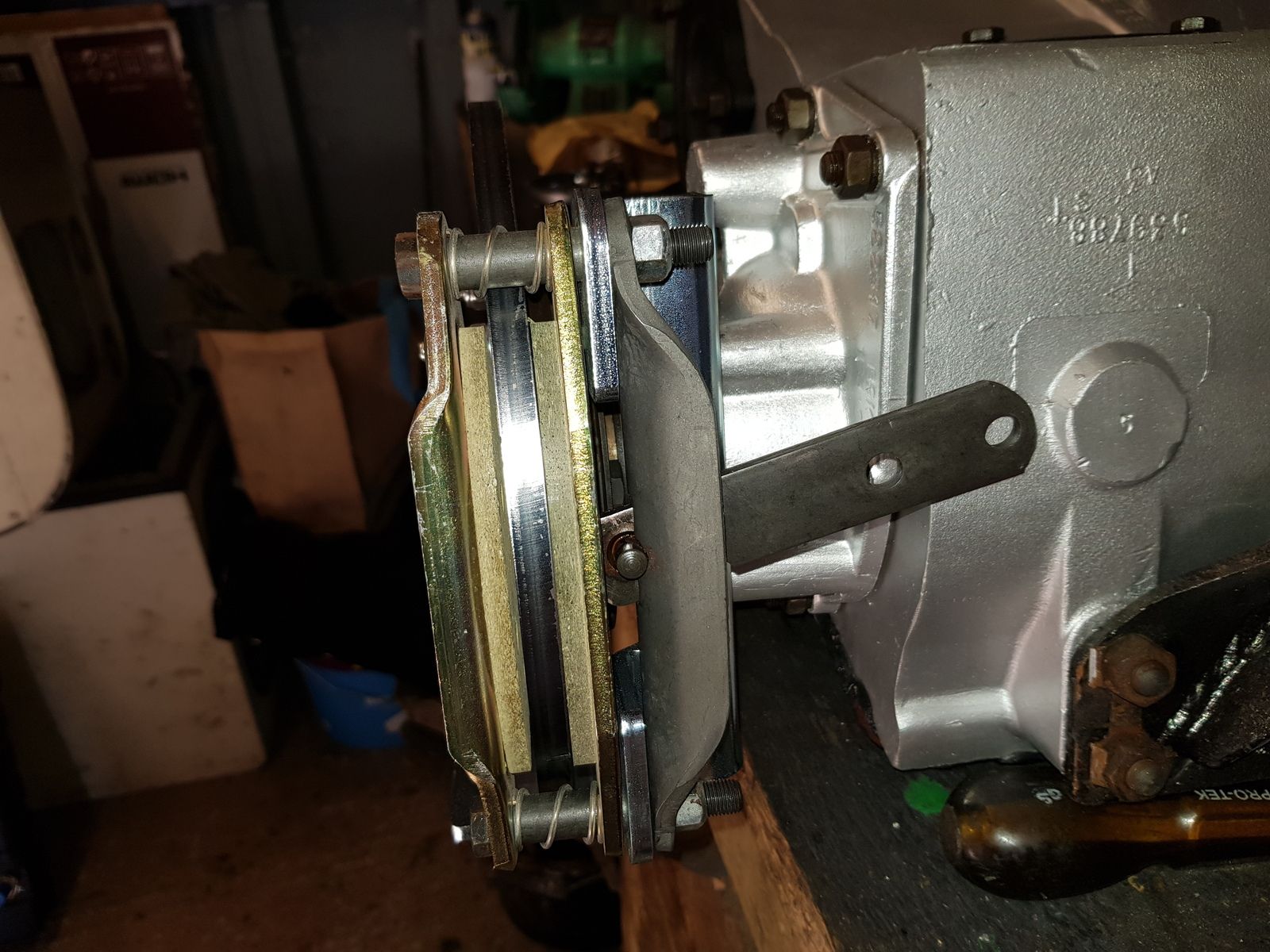

Here's mine before I put the propshaft back on

cornish rattler · Feb 24, 2019

Will take some better ones tomoz

DaveP_Tomcat · Feb 24, 2019

cornish rattler said:
Will take some better ones tomoz

Def sounds like the L's are cable stops, does the documentation say how to fit the cable??

DaveP_Tomcat · Feb 24, 2019

Sorry I was very wrong. Those L shapes and bolts are for the push-rod, not cable stops.

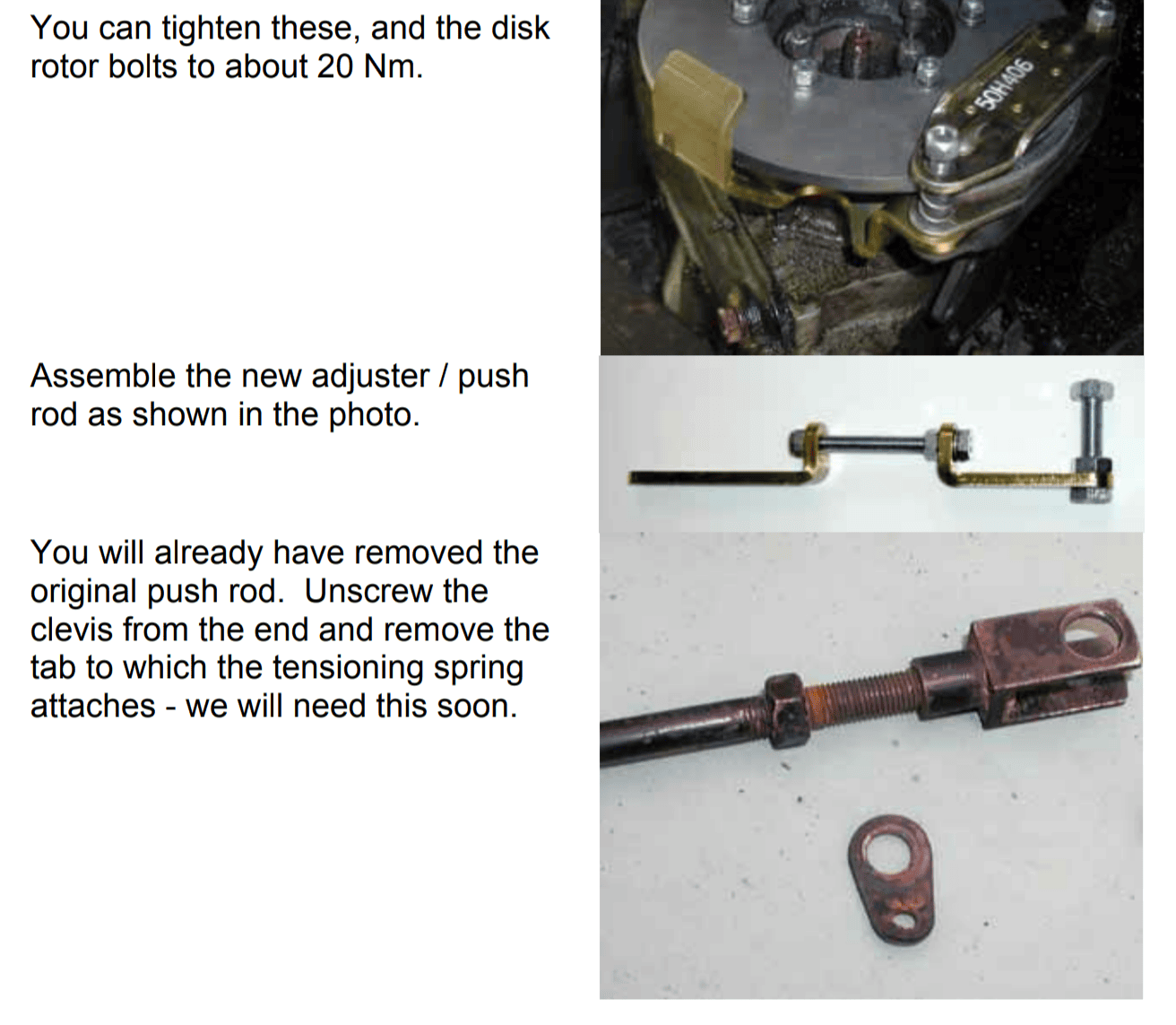

Found this

On here:

https://foundry4x4.co.uk/index.php?route=product/product&manufacturer_id=14&product_id=70

Of use??

cornish rattler · Feb 24, 2019

DaveP_Tomcat said:
Sorry I was very wrong. Those L shapes and bolts are for the push-rod, not cable stops.

Found this
View attachment 170796

On here:

https://foundry4x4.co.uk/index.php?route=product/product&manufacturer_id=14&product_id=70

Of use??

Nice one cheers

cornish rattler · Feb 24, 2019

DaveP_Tomcat said:
Sorry I was very wrong. Those L shapes and bolts are for the push-rod, not cable stops.

Found this
View attachment 170796

On here:

https://foundry4x4.co.uk/index.php?route=product/product&manufacturer_id=14&product_id=70

Of use??

Had a quick look this morning and yeah i get it now, i'd removed the swivel actuator from the chassis yesterday thinking it needed to be removed so i will refit it tomorrow

norseman · Feb 25, 2019

Forgive my ignorance (or cynicism) but what is the advantage of a Xbrake when the standard transmission brake is only designed for parking ?

cornish rattler · Feb 25, 2019

The X brake works wether dry,wet or covered in mud and is easier to maintain, even though I've no intentions of off roading this one having a good hand brake is what I fitted it for

cornish rattler · Feb 25, 2019

thank's guy's all sorted now

Bugly · Mar 8, 2019

DaveP_Tomcat said:
Sorry I was very wrong. Those L shapes and bolts are for the push-rod, not cable stops.

Found this
View attachment 170796

On here:

https://foundry4x4.co.uk/index.php?route=product/product&manufacturer_id=14&product_id=70

Of use??

Sure are, but those L brackets require additional long bolts etc to fit in correctly. I upgraded last year to an X-Brake, got rid of that transmission drum brake (best upgrade ever). A bit challenging to fit (the pads and those L brackets) as I had to grind one of the pads down a bit to get enough clearance to prevent touching the disc when the brake was not activated.

cornish rattler · Mar 11, 2019

Yeah mine just skims the disc but rotates free and when the hand brake is on it only takes two clicks to apply.
