Does anyone supply the length of steel tubing running from the cylinder head heater valve to the heater matrix as a spare part?

The inside of the one I have is completely rusted, and it is in need of replacement.

If it's not available, I have considered sourcing a length of stainless tubing to make one from.

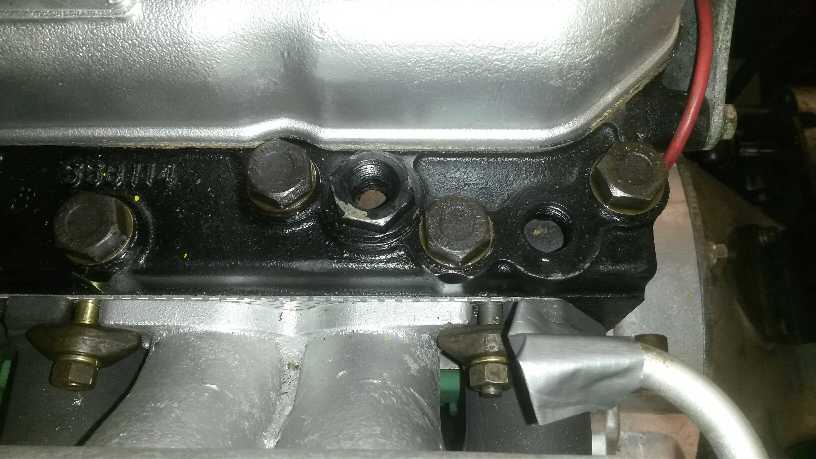

Also, is there supposed to be a return hose connector and a plug in these threaded holes on the cylinder head (see photo).

Thanks for any replies.



Attachments

•

  40.3 KB · Views: 154

oxides

Well-Known Member

Posts

5,078

Location

Worcs

• Nov 15, 2014

• #2

577269 is the part number for the steel tubing - you need the supplementary parts catalogue for these bits. The adaptor for the return is 243535, the steel tube for the return is 277295, the rubber tubes are 577292 for both connections into the heater matrix and the short straight rubber hoses from the adaptor and the thermostat to the steel pipes are both 231895. The brackets for the steel tubes are 559637 - you'll need 3. Now go google!



joe27979

Well-Known Member

Posts

1,354

Location

west Norfolk

• Nov 15, 2014

• #3

oxides said:

577269 is the part number for the steel tubing - you need the supplementary parts catalogue for these bits. The adaptor for the return is 243535, the steel tube for the return is 277295, the rubber tubes are 577292 for both connections into the heater matrix and the short straight rubber hoses from the adaptor and the thermostat to the steel pipes are both 231895. The brackets for the steel tubes are 559637 - you'll need 3. Now go google!

Click to expand...

raise:



Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Nov 16, 2014

• #4

The other hole is for the temperature sender.
optional parts cataloque can be found by searching google for smithies landrover will bring up a NZ site of intereset



W

Webley1991

Well-Known Member

Posts

2,579

Location

London

• Nov 16, 2014

• #5

Thanks for the replies. I googled all of the part numbers, and not all are available.

For example the part number length of steel tubing brings up this thread in google search. I googled "land rover 577269".

559637 and 277295 also don't seem to be listed anywhere.

Is the parts catalogue available in physical paper form anywhere? I have tried the pdf before but my internet connection is frustratingly slow.
