Empty bolt hole!!

Turbocarl · May 25, 2012

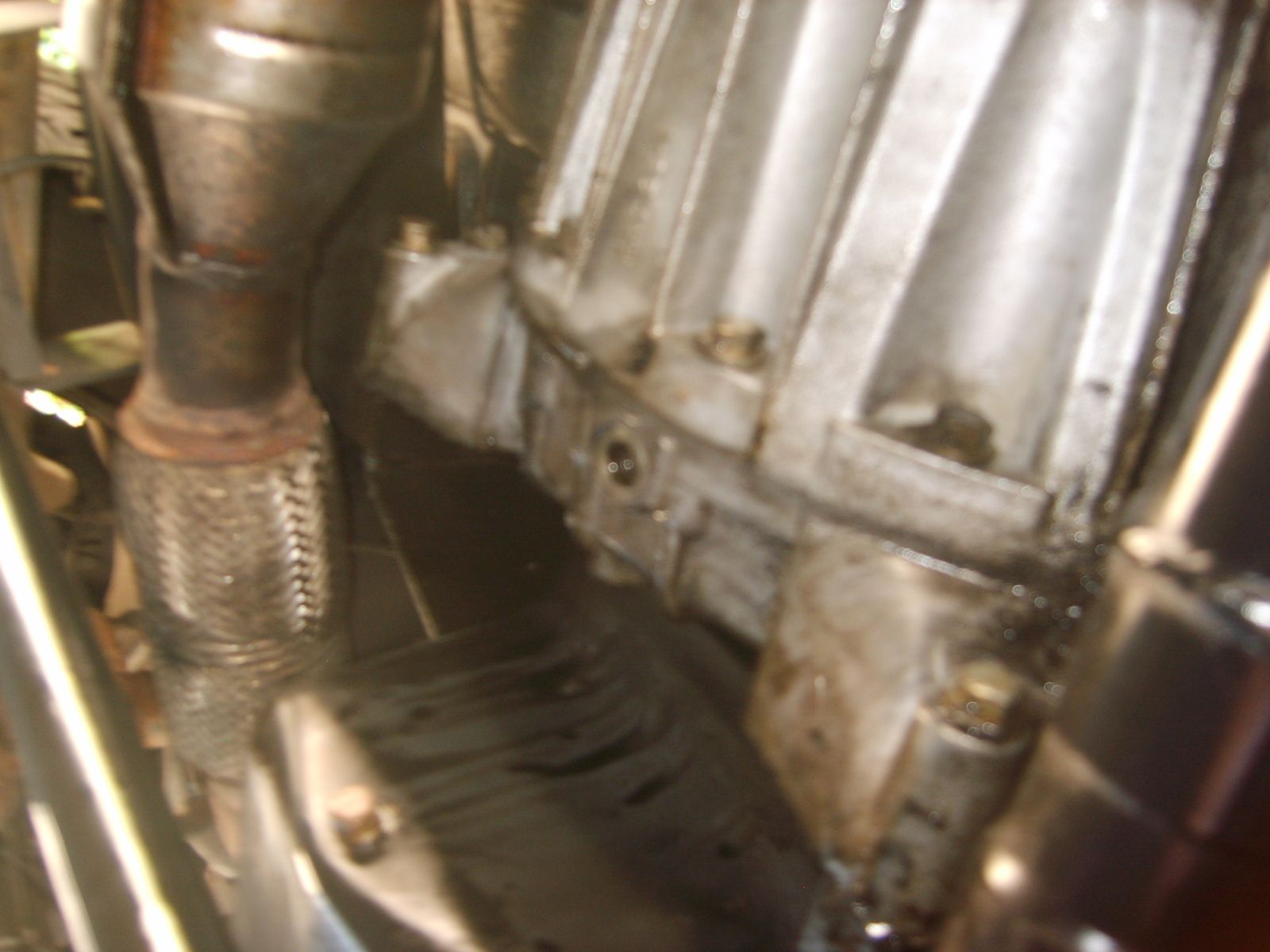

Had my Disco a week now and finally got round to changing engine oil and filters. Whilst waiting for oil to drain was crawling round underneath to see if I could find source of slight oil leak ( few spots on drive) when I noticed threaded hole with bolt missing!! could someone please tell me what it is and what should be there - the vehicle has drove fine the week I,ve had her.

robint · May 25, 2012

wading plug maybe !!

jamesmartin · May 25, 2012

wading plug plus also is used for crank timing pin erc7295 is number for a new plug

Turbocarl · May 25, 2012

Many thanks fella,s. Was worried sick! First thought was there should be x number litres of oil behind it! I,ll get on for a replacement now. Once again many thanks!!

dyte · May 25, 2012

Turbocarl said:
Many thanks fella,s. Was worried sick! First thought was there should be x number litres of oil behind it! I,ll get on for a replacement now. Once again many thanks!!

don't plug it unless you plan on wading in deep water or mud they don't have a plug as standard if your rear crank seal is the source of your leak then you will just build up oil in the bellhousing

Turbocarl · May 25, 2012

Thanks Dyte! Still not sure where oil leak is - definitely rear of engine or at least not the front, just doing my best now to remove as much as I can to hopefully get a better picture - is crank seal a big job on these?

dyte · May 25, 2012

Turbocarl said:
Thanks Dyte! Still not sure where oil leak is - definitely rear of engine or at least not the front, just doing my best now to remove as much as I can to hopefully get a better picture - is crank seal a big job on these?

put a sheet of cardboard under it at night see where it drips my money would be vacuum pump pump seal it will run back and cover the axle too rear crank need gaerbox out

drewster · May 25, 2012

that is definatly for the wading plug

Turbocarl · May 25, 2012

Thanks Dyte!! Wiped off as much as possible - absoloutely everywhere then waited for the first spot. Looking directly up from it the vp is definetely in view so looks like you cracked it for me. There,s no ticking noise from it and brakes have been fine, is it likely to be just the gasket between it and the block or is it something internal in the pump? Much appreciation of your input kind sir!!

dyte · May 25, 2012

Turbocarl said:
Thanks Dyte!! Wiped off as much as possible - absoloutely everywhere then waited for the first spot. Looking directly up from it the vp is definetely in view so looks like you cracked it for me. There,s no ticking noise from it and brakes have been fine, is it likely to be just the gasket between it and the block or is it something internal in the pump? Much appreciation of your input kind sir!!

try giving the bolts a tighten its a plastics gasket or it is on mine anyway. mine where slack but gaskets are pennys, i don't think they can leak anywhere but the gasket

jamesmartin · May 25, 2012

they can leak out of end cap on vac pump

Freediscoranger · May 26, 2012

Usually the cap of the vacuum pump. Mine leaked a bit when I got it , I ignored it and it got a lot worse after a year. Simple fix was drill the rivets out and replace them with little bolts. Saves you buying a new pump and if you've got a small hand drill you can leave it in situ
