Door bottom repair

W

Webley1991

Well-Known Member

Posts

2,579

Location

London

• Jan 18, 2015

• #1

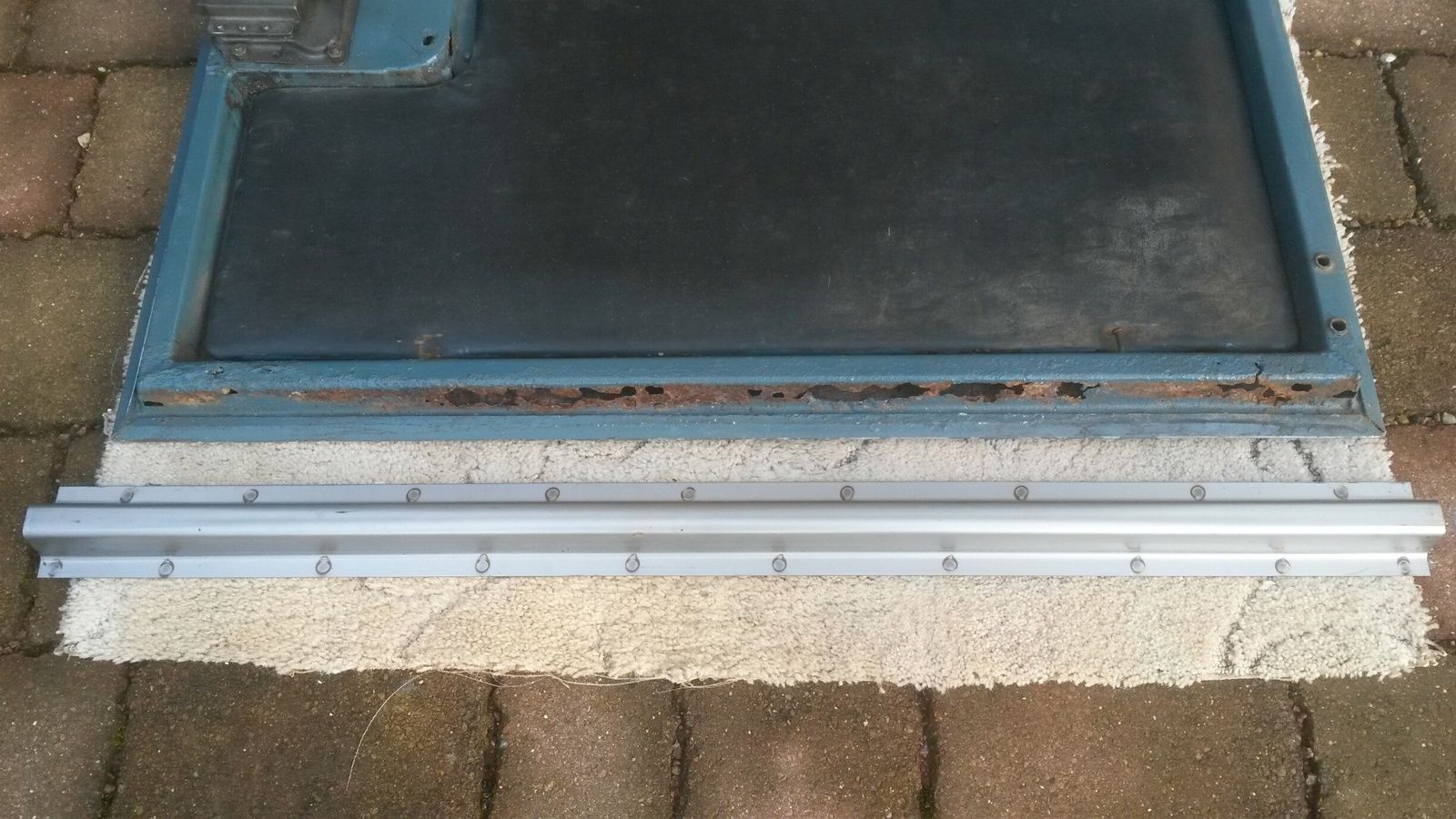

The doors that were fitted to my series have the usual rot along the bottom. They are generally not in great condition at all.

I bought a couple of repair sections a while ago, but still haven't got round to doing anything with them.

Can anyone here post any advice or photos on how you have done these.

Something I did consider was separating the two pieces of the repair section. I would then cut away as much rust as I could, then weld just the u-section piece over the top of the bad part. Although this is not a proper fix, I thought it would probably look nicer than it does at the moment. The problem is lack of solid metal to actually weld anything to. The vertical sections are also flaky up to about two inches from the bottom.

Does anyone have suggestions?



Attachments

•

  228.7 KB · Views: 255

Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Jan 18, 2015

• #2

Carefully bend the alloy back little at a time to remove the door skin , warm it a little if necesary.
The door sections that you buy are longer than the width so should be able to use some for the verticals.
When you get the skin off you will likely find the back is rusted out also on the frame.



W

Webley1991

Well-Known Member

Posts

2,579

Location

London

• Jan 24, 2015

• #3

I cut the bad parts out today. The strip of aluminium that folds over the steel at the bottom were also rotten and falling apart.

I will probably weld the steel sections in and put a row of pop rivets through from the outside into the back of the steel repair section. I know i's not how it was done originally, but there isn't much else to hold the aluminium skin to the frame anymore.



mistericeman

Active Member

Posts

977

Location

peoples republic of ashton-under-lyne ,lancashire

• Jan 24, 2015

• #4

I wouldn't have bothered to be honest ....

New decent ones are only about £50 a piece ....all brand new and no flakey bits to try to weld to .



W

Webley1991

Well-Known Member

Posts

2,579

Location

London

• Jan 25, 2015

• #5

I did think of that, but I changed my mind as the ones I have are the right colour for the vehicle. I don't have the facilities for spray painting, not to mention getting the colour right.



joe27979

Well-Known Member

Posts

1,354

Location

west Norfolk

• Jan 25, 2015

• #6



Last edited: Jan 25, 2015

Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Jan 25, 2015

• #7

If the Alloy looks ok from the outside buy a tube of Tiger seal and mastic it back to the steel will look much better than rivets.
This is the stuff the boy racers stick there spoilers on with will be stronger than original and will seal it to stop the water getting between the steel and alloy.
Mind once done there is no removing it.



W

Webley1991

Well-Known Member

Posts

2,579

Location

London

• Feb 8, 2015

• #8

Thanks for the replies.

If I went for a new set of doors, does this mean that I would have to re-align everything again? Surely new ones would vary slightly in dimensions.
