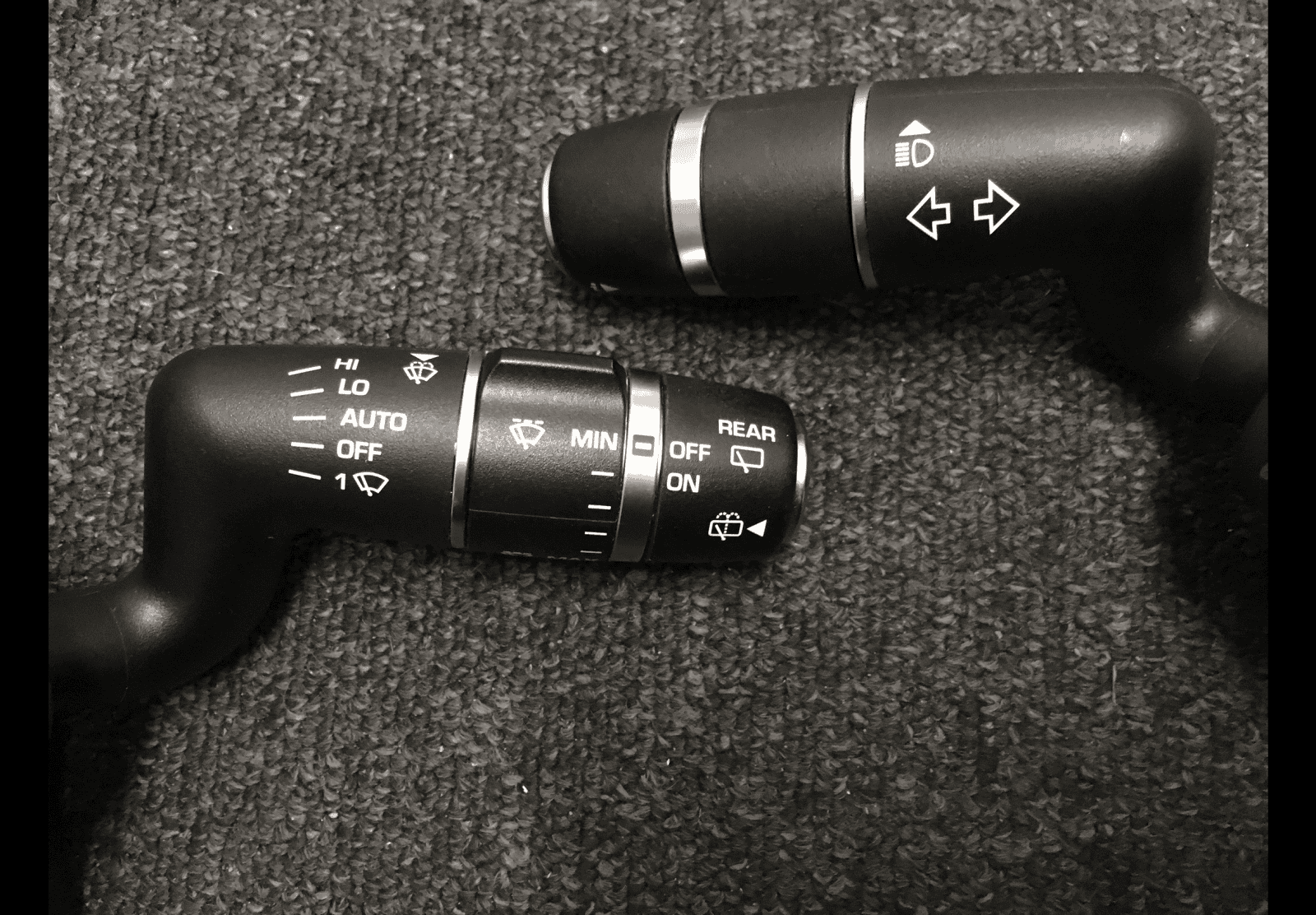

My seats came out of a 2013 d4 with memory the passenger seat sort of works but doesn’t recline and the drivers seat does nothing. My d3 doesn’t have the grey plug under the seats like in powerful uk video. I have a stalk, clock spring and heated steering wheel just waiting for a reply from Fritjof Dittner but it’s not looking very promising….
many thks , what year and model is ur D3 plse

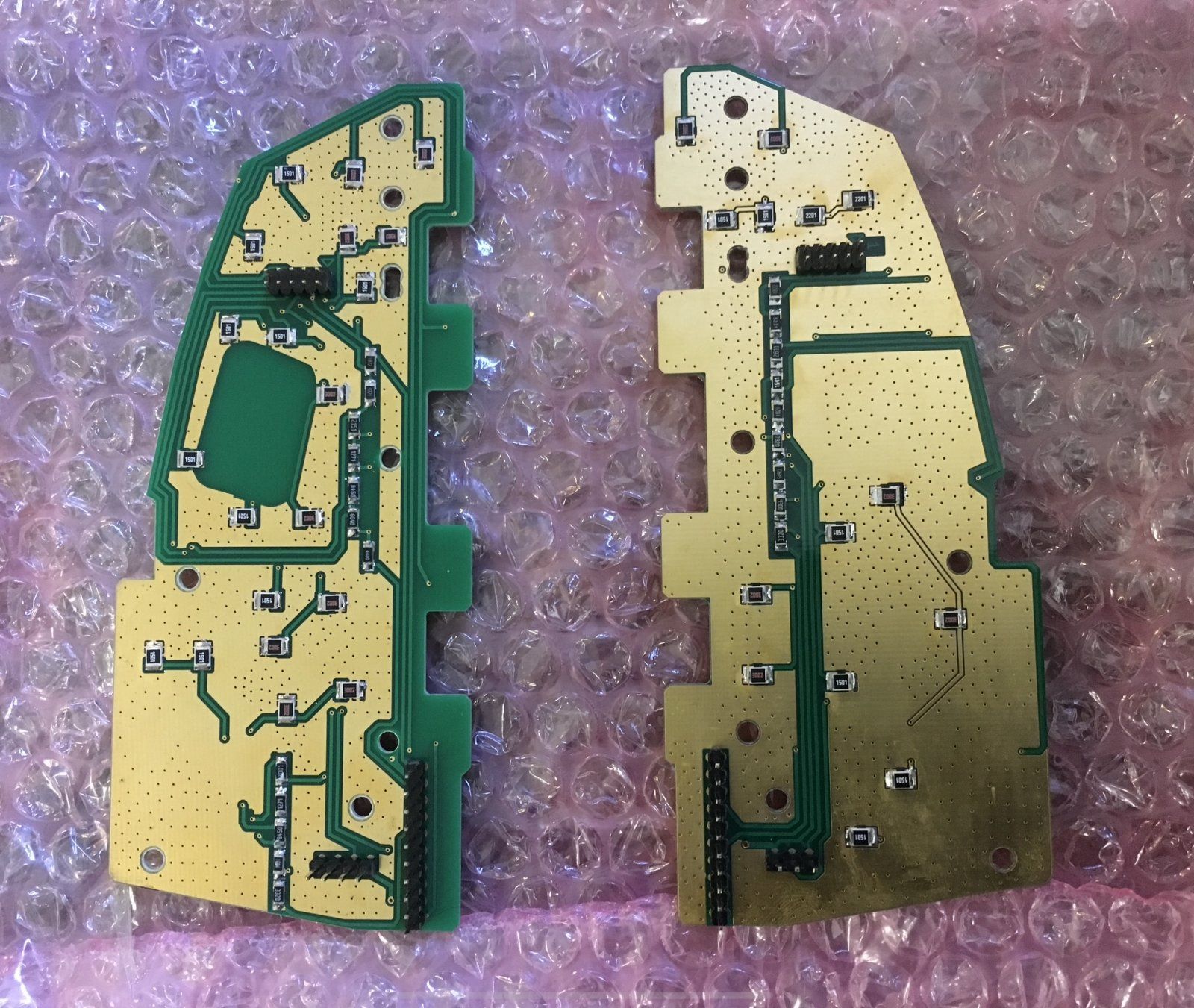

funny enough done the same with regards to the boards in the D4 steering wheel , must confess haven’t heard of Fritjof Dittner
what year is ur heated steering wheel plse as some years won’t work with the earlier D3’s , date should be stamped on the wheel , great you’ve got the heated wheel clock spring and wheel module

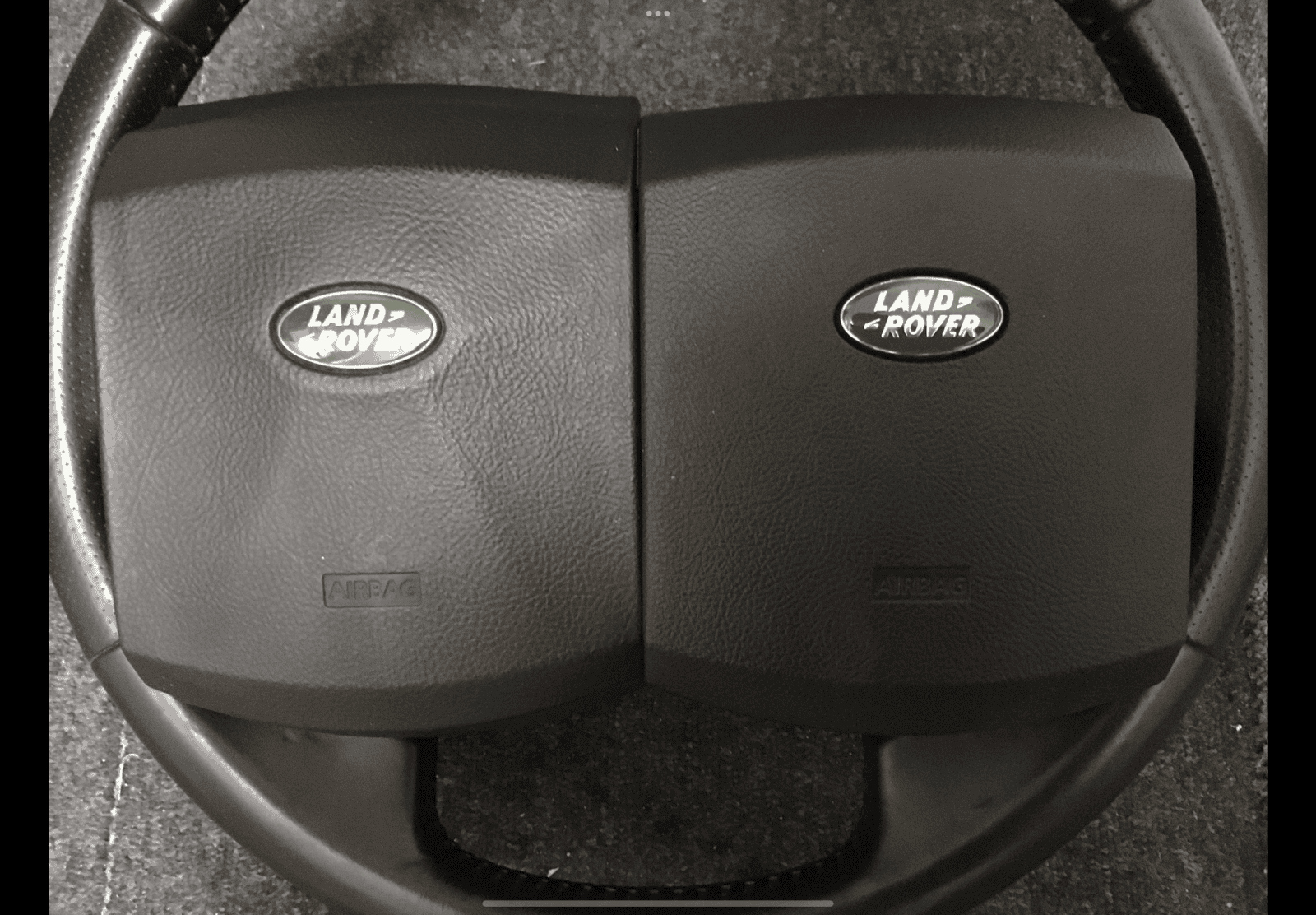

ref The steering wheel airbags the D3 and D4 airbags are slightly different , I got the D4 airbag as it’s flat whilst the D3 has angles on it, the both fit just a slight difference

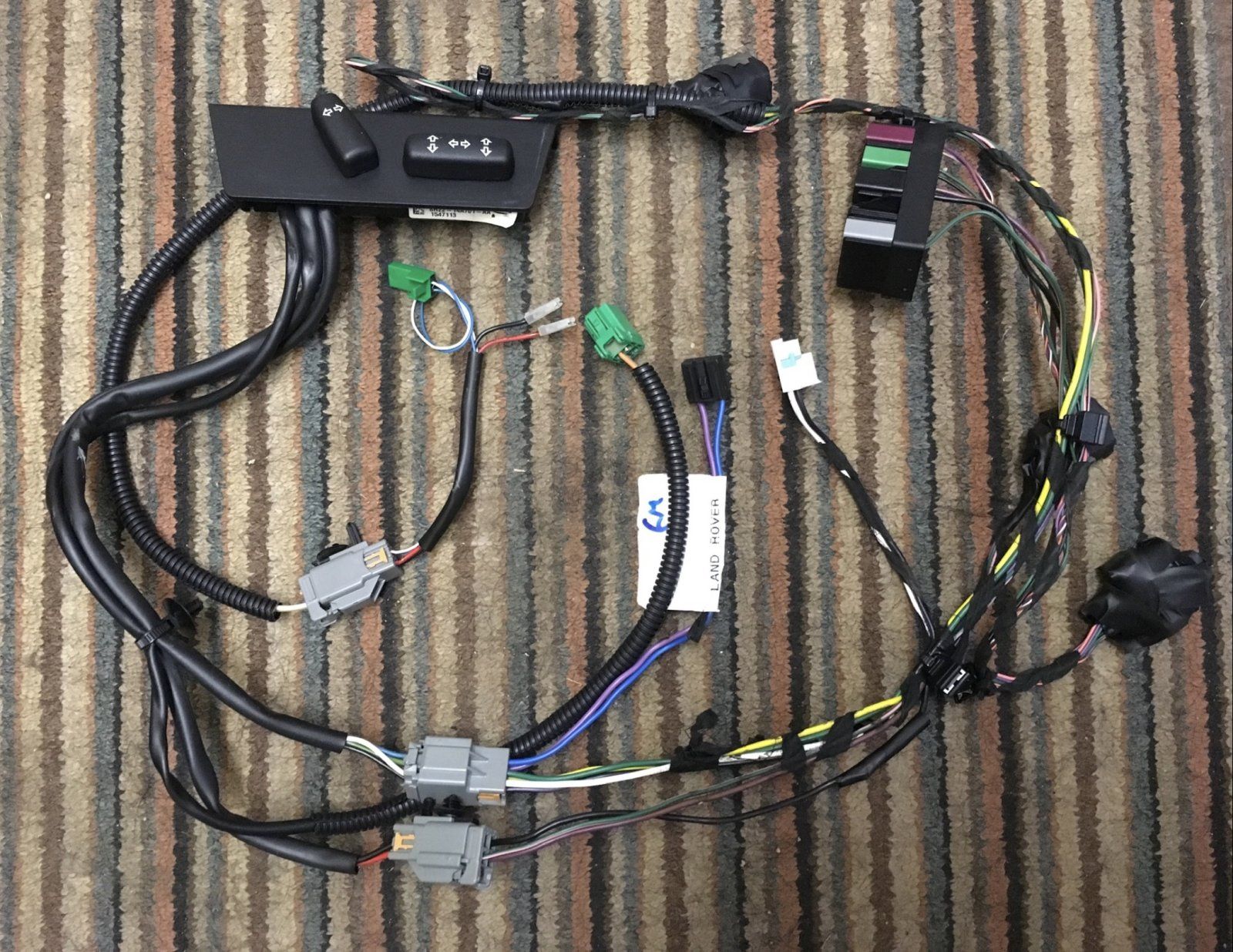

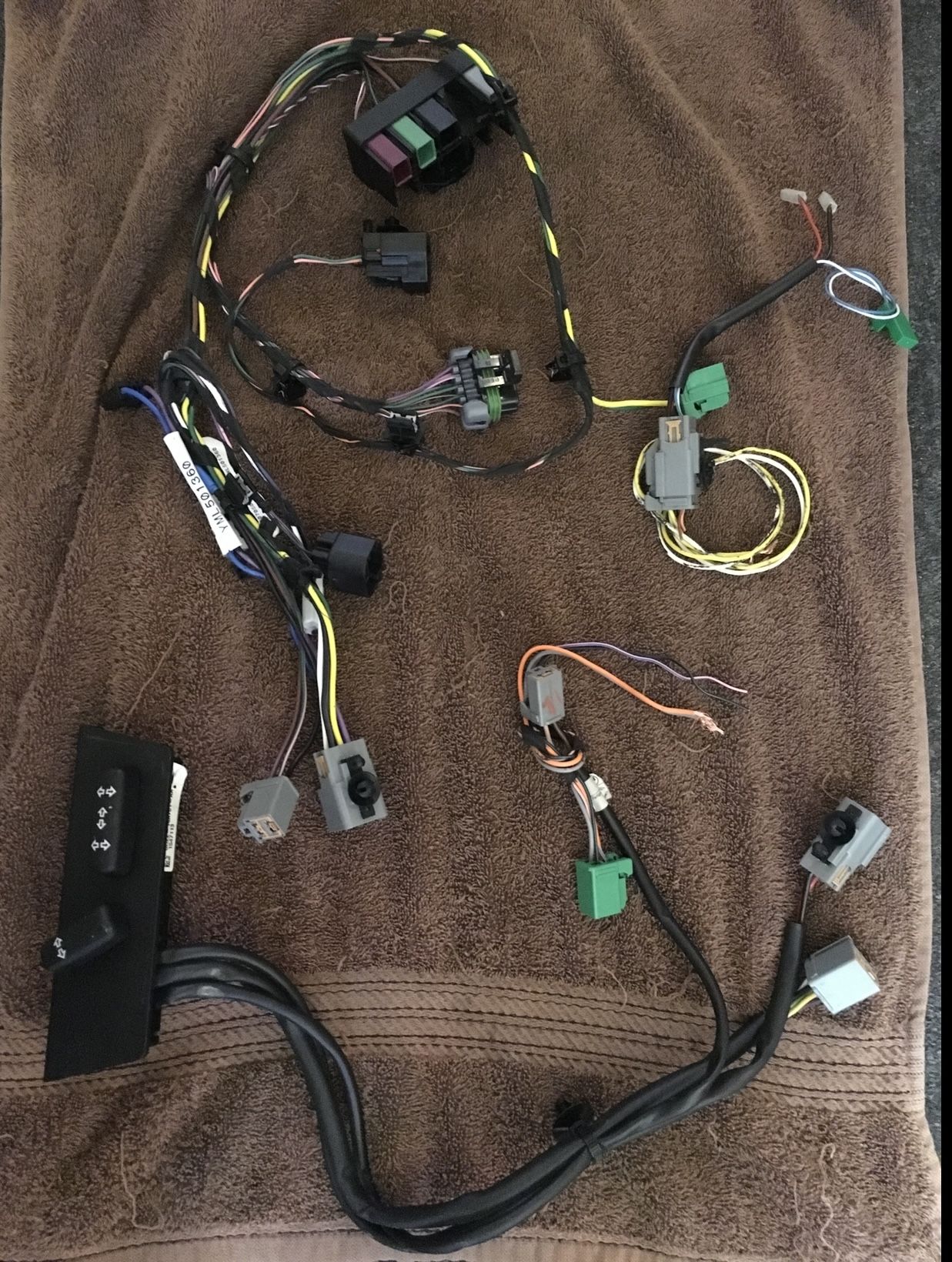

regarding the memory seats , if u wish to keep the memory u will have to get D4 door cards along with other D4 modules , plus lot of extra wiring , my electric seats were D3 memory and ripped out the module and seat looms , making all new looms for each seat and now have constant power and not the 3 x second bursts which is really nice
assume ur seats have electric lumber support as well , think the drivers are 8 x way, passenger 6 x way

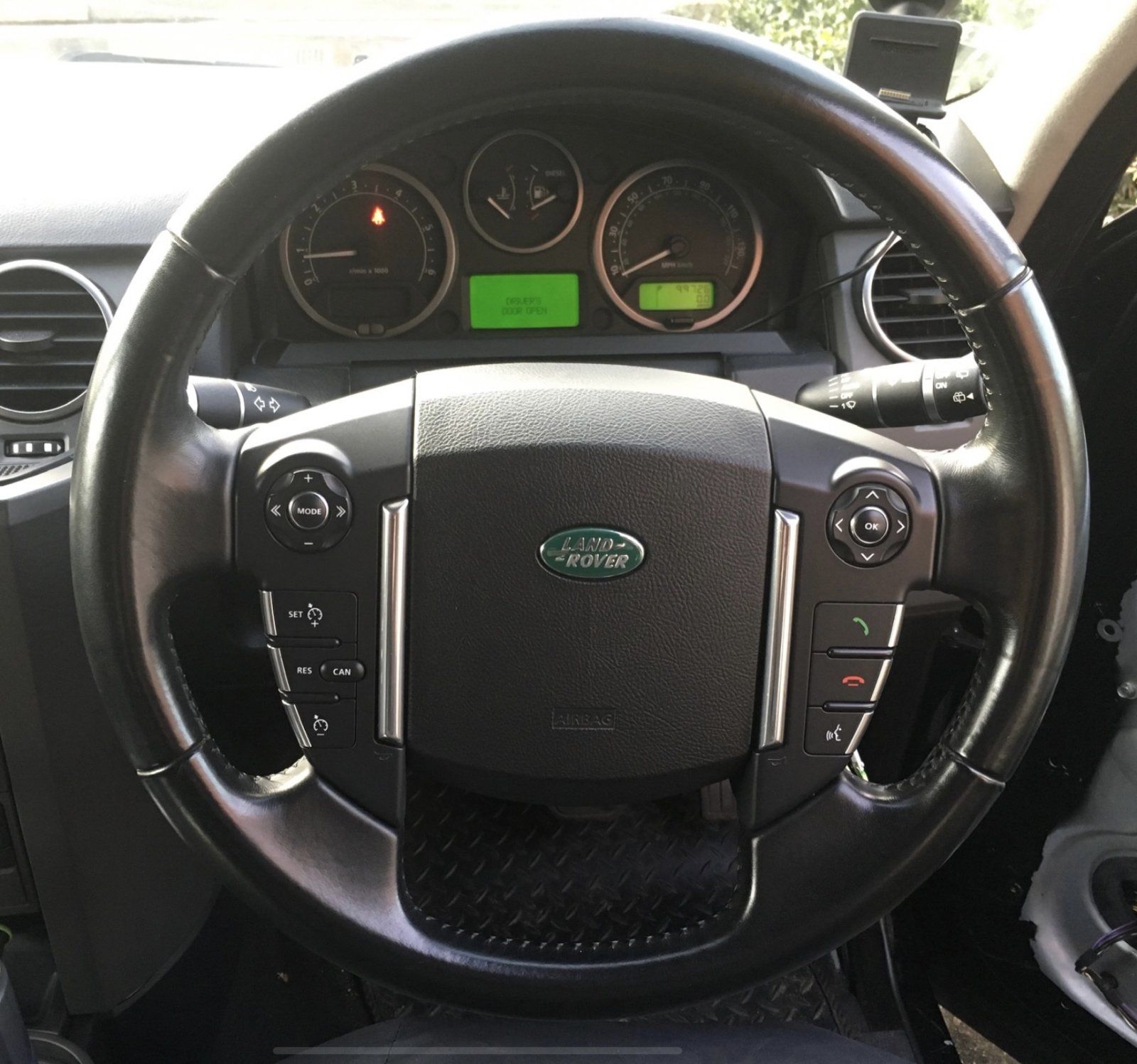

remember it was a bit of a mindfield in having to match everything up , plus all depends if u want to keep the memory function or just remove all of it and just get the electric side working , assume ur new steering wheel switch packs include cruise control
Did take me a while tracing all the wires/ colours etc to make the new looms , along with matching the looms inside the steering wheel and switch packs , as to add there different steering wheel looms
hope this is useful to u
