Disco 3 HP Fuel pipe connections- photo- a plea

I have been fortunate enough to replace my HP fuel pump without taking any of the surrounding infrastructure apart, just the coolant pipe off and of course the Crank Case breather.



Having achieved this , out side and in chilly winds, I now face a dilemma as the photographs I took of the fuel pipe connects are all blurred . I need my Disco for volunteer charity work so I wonder if someone could find the time to phonograph the pipes attached to the pump and surrounding areas so i can see what fits where. They are of course all tegh same dia/pipe fitting which isn't helping with this dilemma. Thanks in anticipation.



Dave

Any good?

Graculus said:

Any good?

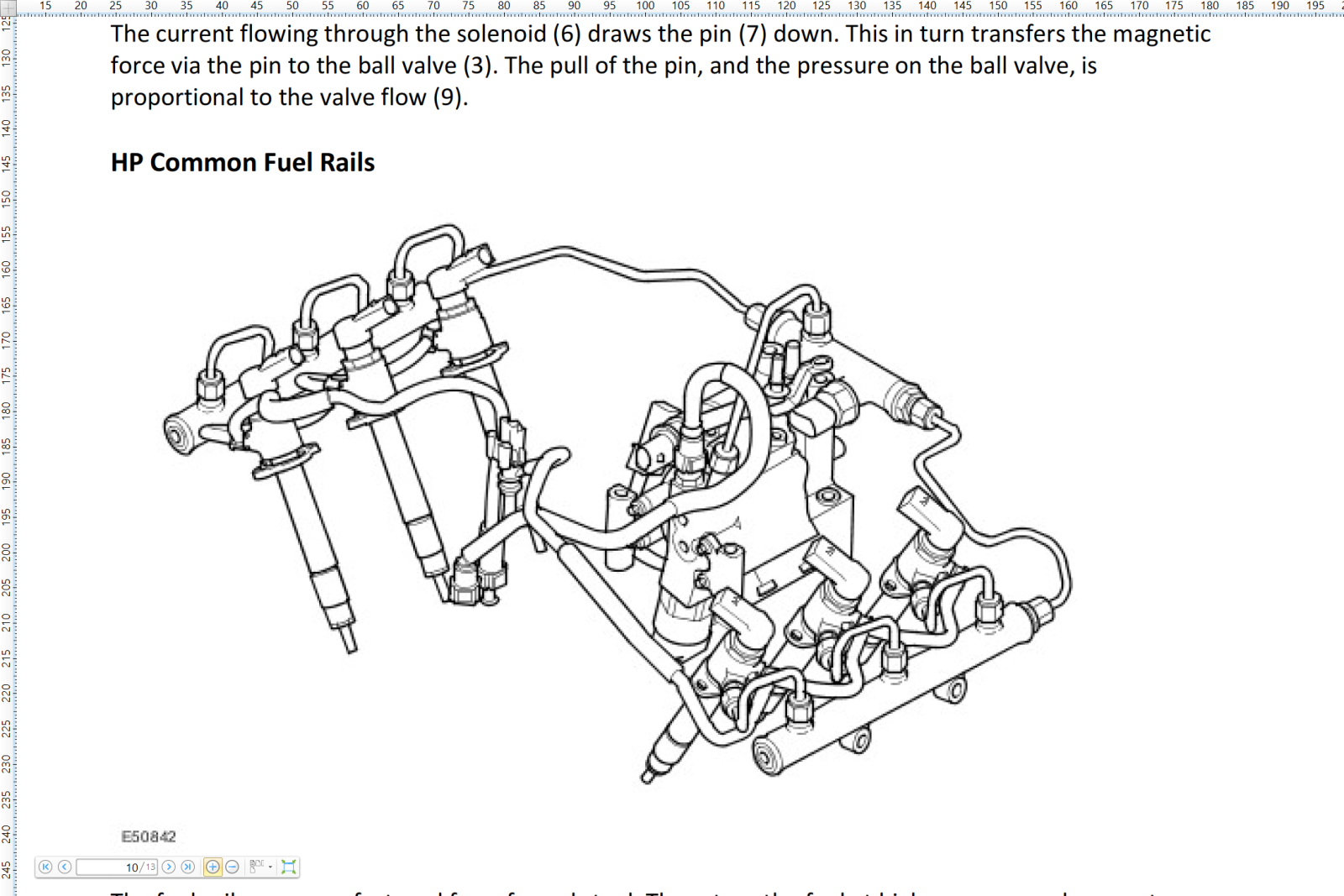

View attachment 332944

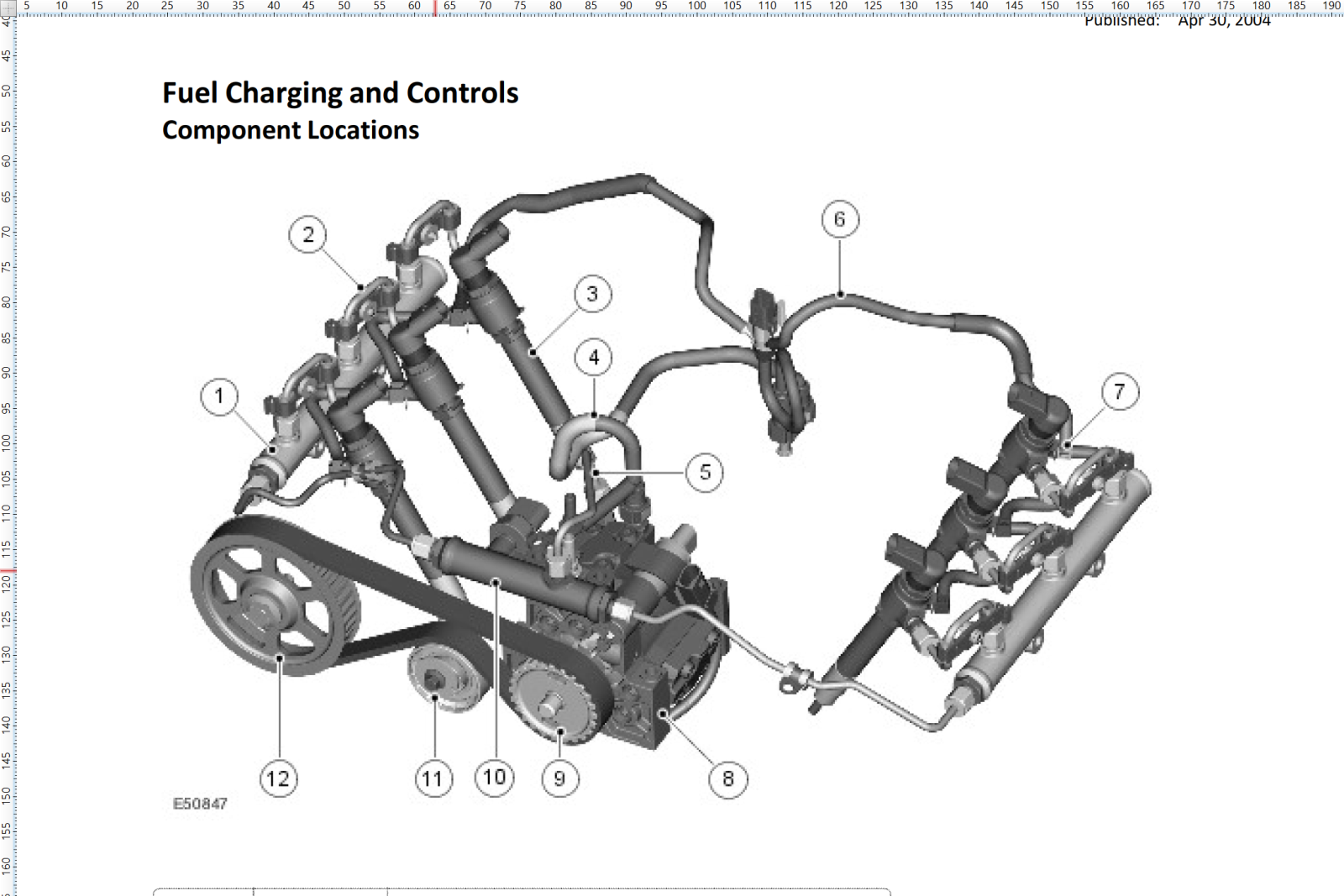

View attachment 332946

Click to expand...

Ah I have sen these but they are little use in the real world sadly fro example in the component locations dia there us a solid pipe on the pump shown by item 5...but which pipe goes onto that pipe .. Many Many thanks for responding though its appreciated.

Item 5 connects to the diverter rail & the outlet of the HP pump. there are no pipe to pipe connections, each pipe can only fit in one location, so that's three HP pipes of three different lengths, I don't understand your difficulty. Even the LP pipes are formed to fit, so hold them where you think they go, if they don't, turn them around or try another one.
