hi all so its time to tackle the annoying squeal from the gearbox i have diagnosed this to either the release bearing or spigot bush.
Im gonna try and tackle this myself as quotes for the job are steep,i plan on doing the rear crank seal and flywheel change while im in there
my question is has anybody tried a draper transmission jack



toolstoredirect.co.uk

Draper 09021 Floor Transmission Jack, 200kg

This floor transmission jack is designed for lifting and lowering gearboxes, prop shafts and differential units. The hand-operated scissor action provides precise movement enabling users to accurately manoeuvre and fit the transmission assembly. Fitted with a non-marking ratcheting tie-down...
toolstoredirect.co.uk toolstoredirect.co.uk

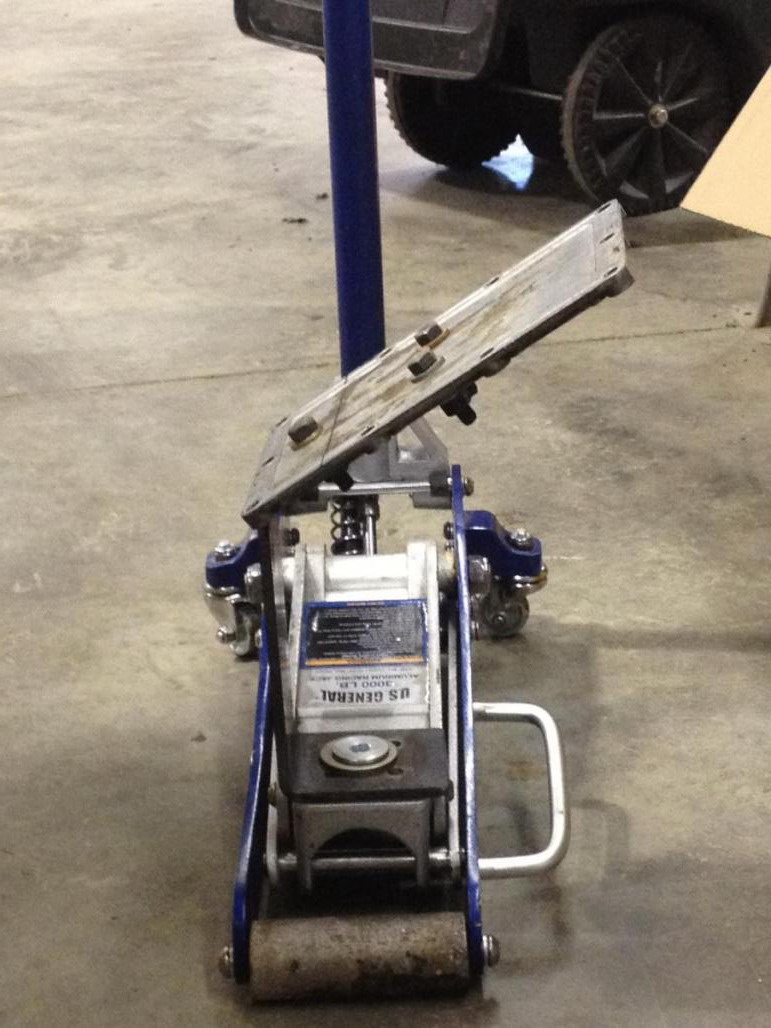

Hi removing the TC box and Clutch housing tegether as one makes it a very heavy unit, ther is an adapter plate you can use to remove the TC box separately, the
tb2_defaea3807077225afe7a328a9331c66fa4eec86_a2905a83ce22e6a2d44a38160701b8b8bfa67dc0.png
transfer case holder.jpg

japexup said:
hi all so its time to tackle the annoying squeal from the gearbox i have diagnosed this to either the release bearing or spigot bush.
Im gonna try and tackle this myself as quotes for the job are steep,i plan on doing the rear crank seal and flywheel change while im in there
my question is has anybody tried a draper transmission jack



toolstoredirect.co.uk

Draper 09021 Floor Transmission Jack, 200kg

This floor transmission jack is designed for lifting and lowering gearboxes, prop shafts and differential units. The hand-operated scissor action provides precise movement enabling users to accurately manoeuvre and fit the transmission assembly. Fitted with a non-marking ratcheting tie-down...
toolstoredirect.co.uk toolstoredirect.co.uk
Click to expand...
hi was going to split on vehicle to make life easier plus change seals etc

I did mine on a two poster, split tfer box off gearbox, biggest arse was some bracket on top of the flywheel/gearbox housing, car did have rear a/c which might have had something to do with it.

japexup said:
hi all so its time to tackle the annoying squeal from the gearbox i have diagnosed this to either the release bearing or spigot bush.
Im gonna try and tackle this myself as quotes for the job are steep,i plan on doing the rear crank seal and flywheel change while im in there
my question is has anybody tried a draper transmission jack



toolstoredirect.co.uk

Draper 09021 Floor Transmission Jack, 200kg

This floor transmission jack is designed for lifting and lowering gearboxes, prop shafts and differential units. The hand-operated scissor action provides precise movement enabling users to accurately manoeuvre and fit the transmission assembly. Fitted with a non-marking ratcheting tie-down...
toolstoredirect.co.uk toolstoredirect.co.uk
Click to expand...
I done mine on the driveway without splitting the boxes. That Draper Jack is exactly what I used. I made a t shaped adapter that bolted to the box and put a trolly jack under the transfer box so its weight wouldn’t twist the entire assembly when I pulled the box back and out. It did work, but it was awkward and if had to do it again, I would consider splitting them. What I will say is, remember and unplug the Crank Sensor !!
