Disco 1 Disco 1 Headlights adjustment

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Maat

Maat

Active Member
Posts
154
Location
International
Hello, does anyone know if discovery 1 headlights can be adjusted from RHD to LHD or if they have to be changed? I'm trying to register a Rhd vehicle in Europe and I changed the headlights as they were pointing the wrong way, with ones from a LHD Discovery 2. I was a bit skeptical though when I noticed that they had the exact same markings on them as the old ones. I didn't get to try them in the dark until the registration inspection and they failed it as they were pointing just like the old ones. I just want to know if to order a LHD pair or if they are adjustable from those mountings they have. Cheers.

Maat said:
Hello, does anyone know if discovery 1 headlights can be adjusted from RHD to LHD or if they have to be changed? I'm trying to register a Rhd vehicle in Europe and I changed the headlights as they were pointing the wrong way, with ones from a LHD Discovery 2. I was a bit skeptical though when I noticed that they had the exact same markings on them as the old ones. I didn't get to try them in the dark until the registration inspection and they failed it as they were pointing just like the old ones. I just want to know if to order a LHD pair or if they are adjustable from those mountings they have. Cheers.
Click to expand...
The thing about headlights is that they have a "kick up" to one side or the other, so the bit that points towards the oncoming traffic casts a flat beam whereas the other side has a kickup, towards the kerb or hedge. On the other side of the road the kick up will shine in the eyes of oncoming drivers. When you drive abroad this kick up is the bit you need to mask off with insulating tape or summat. And bizarrely it is diagonally opposite to where you would expect to see it. :rolleyes:
I have heard that if you do this you can pass the inspection but this may be down to the awkwardness of the inspector.

Stanleysteamer said:
The thing about headlights is that they have a "kick up" to one side or the other, so the bit that points towards the oncoming traffic casts a flat beam whereas the other side has a kickup, towards the kerb or hedge. On the other side of the road the kick up will shine in the eyes of oncoming drivers. When you drive abroad this kick up is the bit you need to mask off with insulating tape or summat. And bizarrely it is diagonally opposite to where you would expect to see it. :rolleyes:
I have heard that if you do this you can pass the inspection but this may be down to the awkwardness of the inspector.
Click to expand...

Do you mean something like eurolites or inside that reflecting cone? Thanks

Maat said:
Do you mean something like eurolites or inside that reflecting cone? Thanks
Click to expand...
I'm talking about old fashioned single glass headlights as in on a D1 or and older D2 i.e. pre facelift. If you have a later one then......oops!
But yes D1 headlights had the kick ups and can be masked. But there are places you can get LHD D1 headlights secondhand. If you were in France I could point you at a guy who sells secondhand bits.
Beam deflectors are sh!te and fall off anyway. A triangle of insulation tape is far better and lasts a lot longer.
Read far enough down in this thread and you will see it described.
https://www.caravantalk.co.uk/community/topic/46202-black-tape-on-headlights-france/

Stanleysteamer said:
I'm talking about old fashioned single glass headlights as in on a D1 or and older D2 i.e. pre facelift. If you have a later one then......oops!
But yes D1 headlights had the kick ups and can be masked. But there are places you can get LHD D1 headlights secondhand. If you were in France I could point you at a guy who sells secondhand bits.
Beam deflectors are sh!te and fall off anyway. A triangle of insulation tape is far better and lasts a lot longer.
Read far enough down in this thread and you will see it described.
https://www.caravantalk.co.uk/community/topic/46202-black-tape-on-headlights-france/
Click to expand...

Hey,

They are the older type yes, the late D1/early D2 glass headlights. I'm trying to register this one in Estonia, not many Land Rovers in this side of Europe unfortunately, I actually imported it from Finland from a guy who imported it from UK many years ago but never got around to registering it. Thank you for the information!

You need to install replacement head lamps with the LHD units for a D1 with the following STC1235 RH LHD & STC1236 LH LHD, which are still asymmetrical which is required to give the addition illumination in your lane, plus a bit of readjustment job done.

discool said:
You need to install replacement head lamps with the LHD units for a D1 with the following STC1235 RH LHD & STC1236 LH LHD, which are still asymmetrical which is required to give the addition illumination in your lane, plus a bit of readjustment job done.
Click to expand...

Thank you, discool, I was just looking into buying another pair.

Its the best option, as your question has been asked before. and your test inspector will or should require a permanent solution.
So not the temporary “get around “ that I’ve used on my two week trips abroad or even with the short night time run back to the port on day shopping trips in the past.

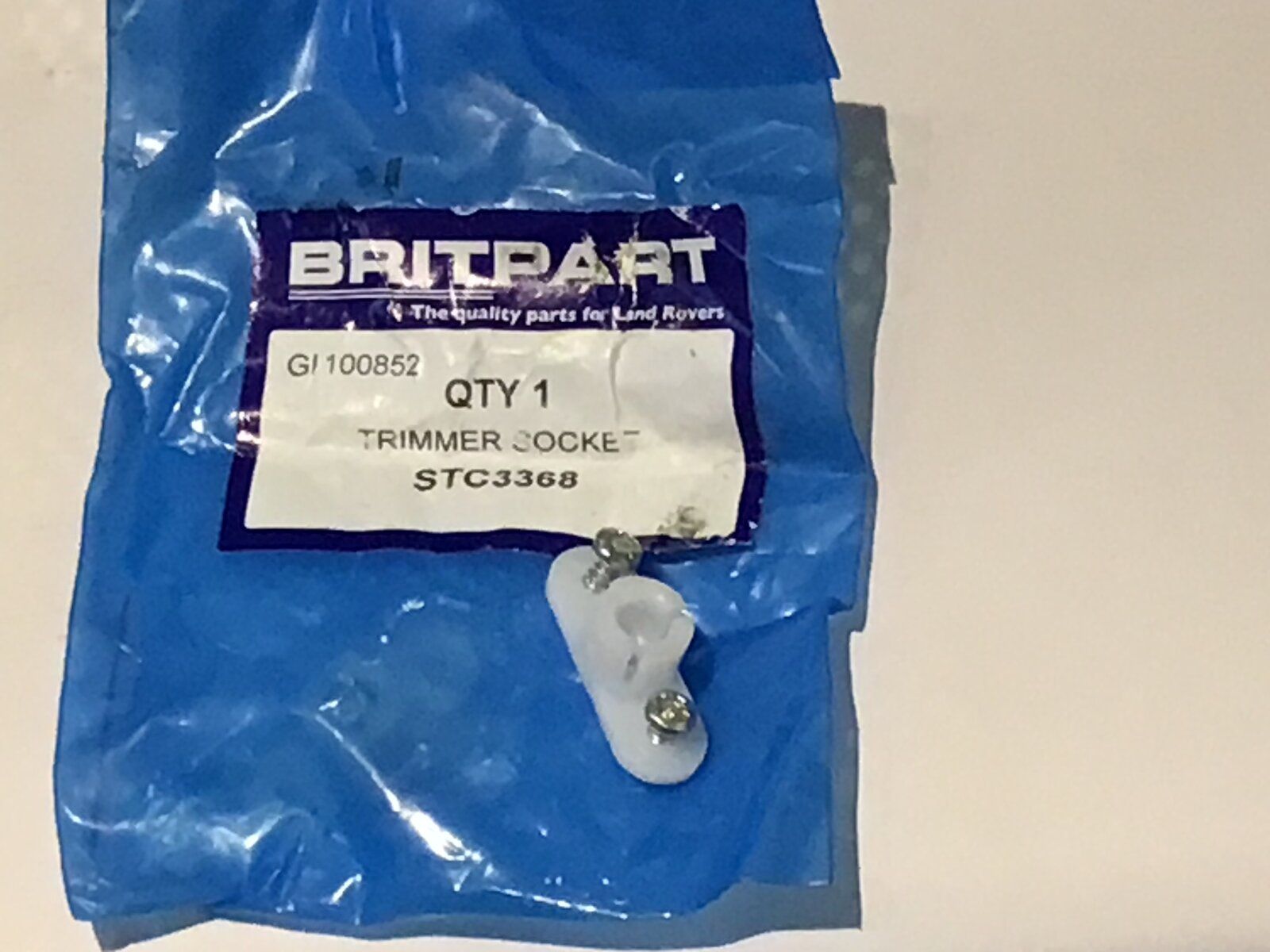

just to add a tip, get a couple of these, i had a couple fall apart when I removed my headlamps from their fixing for the first time.


Attachments

  • E0BA2F85-4CC3-4312-B1FB-D1F3488CEDC6.jpeg
    151.7 KB · Views: 129
Last edited:
discool said:
Its the best option, as your question has been asked before. and your test inspector will or should require a permanent solution.
So not the temporary “get around “ that I’ve used on my two week trips abroad or even with the short night time run back to the port on day shopping trips in the past.

just to add a tip, get a couple of these, i had a couple fall apart when I removed my headlamps from their fixing for the first time.
Click to expand...

Yes, they seem notorious as I've had a few break but also the adjustment bolts are really rusty so I'll need to get some of those too. And the plugs for the bulbs are corroded beyond belief, I think I'll have to change every other part on this landy...

Maat said:
Yes, they seem notorious as I've had a few break but also the adjustment bolts are really rusty so I'll need to get some of those too. And the plugs for the bulbs are corroded beyond belief, I think I'll have to change every other part on this landy...
Click to expand...

When changing the plugs on the back, get ceramic ones, much better ...

Dippypud said:
When changing the plugs on the back, get ceramic ones, much better ...
Click to expand...
Hi, Dippypud,

I'm not sure what they look like, do you happen to have a picture or link or part number? Thank you for the suggestion, I'm a fan of not cutting corners when it comes to a car that I will keep.

So.. the best i could find are some 200tdi head lamps. My question is, provided I get those black brackets and the signal lamps as well, can they be easily mounted on a 300tdi? I dont like the look of them and ive been reading they're not as good but I'm desperate for now.

I replaced one of my 2000 MY Disco 2 headlights with one from my 1998 MY Disco 1 300tdi and it is fine. I expect the 200 tdi will be the same but I cannot be sure.

Stanleysteamer said:
I replaced one of my 2000 MY Disco 2 headlights with one from my 1998 MY Disco 1 300tdi and it is fine. I expect the 200 tdi will be the same but I cannot be sure.
Click to expand...

I did the same the other way around, the 300tdi ones are almost exactly the same as the early td5, but i found a pair for sale from a 200tdi and the assembly looks very different so i want to make sure before ending up with a possible third pair of extra headlamps that I dont need :)

Maat said:
I did the same the other way around, the 300tdi ones are almost exactly the same as the early td5, but i found a pair for sale from a 200tdi and the assembly looks very different so i want to make sure before ending up with a possible third pair of extra headlamps that I dont need :)
Click to expand...
i'm sure @discool will be able to help you.:):)

Stanleysteamer said:
i'm sure @discool will be able to help you.:):)
Click to expand...

Hi,

Nevermind, I called Green Oval and they said that it would require some body work and changing the grille. That's quite a bit of work for a downgrade in my opinion. I've called over 50 places today and most of them don't have the headlights, there's one place that sells a right head lamp, but can't find a left anywhere. Landies are really not popular in northern Europe :(
