Dimension required please

Karls · Aug 29, 2017

I'm about to install new seats onto a YRM repaired seatbox but have no reference for where to drill for the set frame fixings.
Can someone be good enough to take a reference measurement from the outer edge of the seatbox to the bolt hole centres? That would be a great help. Many thanks in advance.

Paul D · Aug 29, 2017

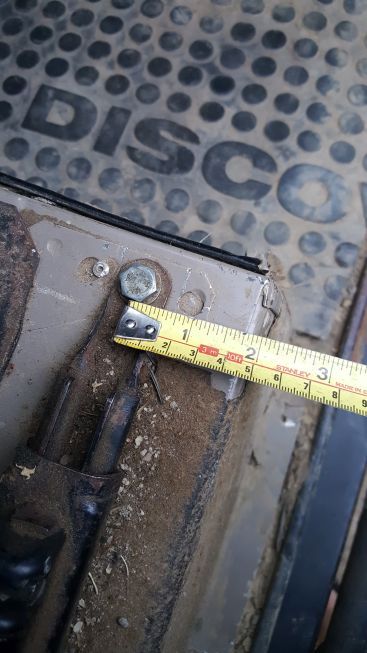

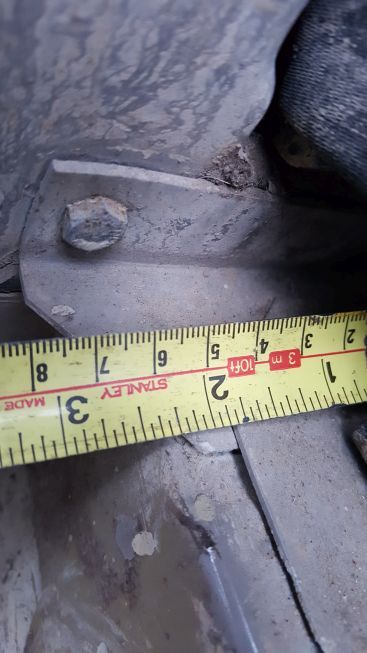

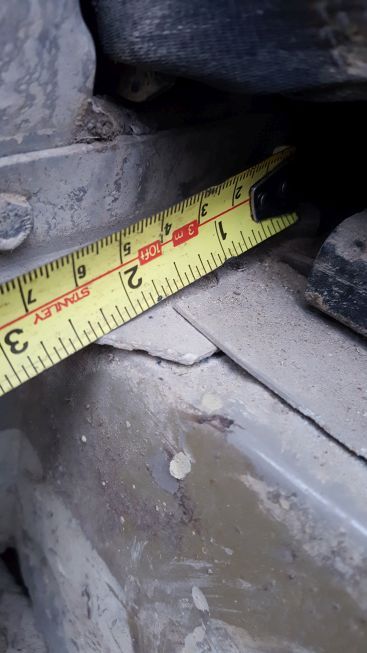

From an '89 90 .. Two at the front, two at the rear, slightly different 'cos it isn't an easy answer to give.

In both cases I've tried to centre the tape on the bolt head, hope this is OK ..

lynall · Aug 30, 2017

Just to confuse things, 1993 90, front bolts 2 7/8 inches, rears 3 1/8 inch, both measured same was as Pauls.

Karls · Aug 30, 2017

Thanks Paul & Lynall, fantastic help guys, cheers!

Karls · Aug 30, 2017

lynall said:
Just to confuse things, 1993 90, front bolts 2 7/8 inches, rears 3 1/8 inch, both measured same was as Pauls.

Lynall, mine is a '85 90 Truck cab so I think I'll probably go with Paul's dimensions but thanks all the same.

lynall · Aug 30, 2017

I notice pauls seat box seems to have the option to drill in three different places, wonder if its for different seats?

Paul D · Aug 30, 2017

lynall said:
I notice pauls seat box seems to have the option to drill in three different places, wonder if its for different seats?

Sorry, dunno .. helpful?

Karls · Aug 30, 2017

lynall said:
I notice pauls seat box seems to have the option to drill in three different places, wonder if its for different seats?

Either that or it's just allowance for Land Rover build tolerances?
