Diesel throttle cable anchor mounting holes

Webley1991 · Jan 25, 2015

Can anyone give me a mesurement in mm of where the holes should be to mount the throttle cable anchor to the bulkhead. I would need how far down from the top and how far across.

This a a Series 3 diesel, so the anchor should be mounted on the left-hand side of the driver's footwell. However, the new bulkhead doesn't have these holes. I got rid of the completely rotten old one a while ago.

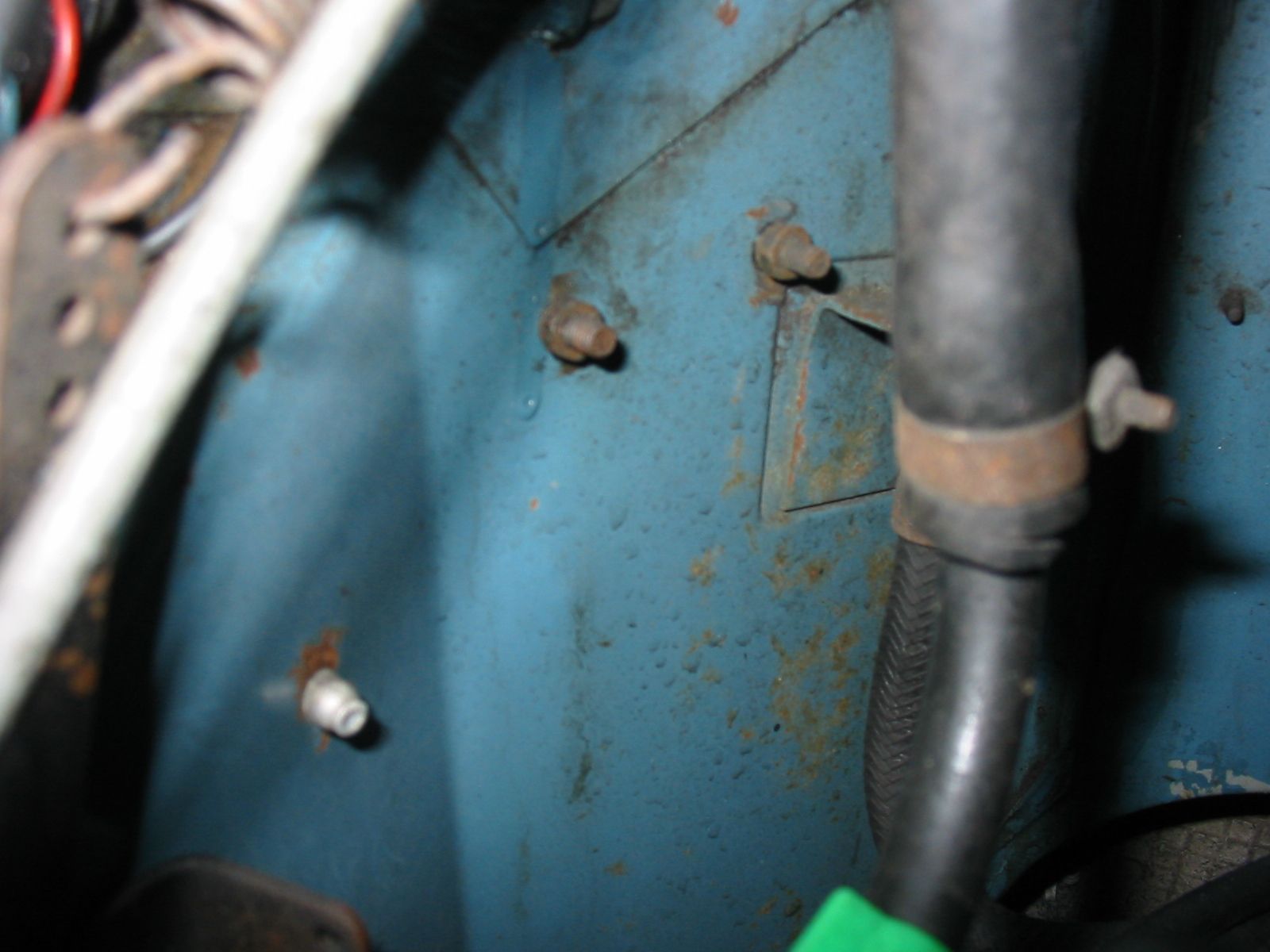

The photo shows the exact part I am talking about.

Thanks for any replies.

nickjaxe · Jan 25, 2015

Just taken a few pics of mine...as its difficult to describe...I cant post pics on here for some reason...send me you email and I will send pic and give distance from nearby pressed holes ect.

My email is nickjaxe at ntlworld dot com

Nick.

Webley1991 · Jan 25, 2015

Cheers. Email sent.

Webley1991 · Feb 1, 2015

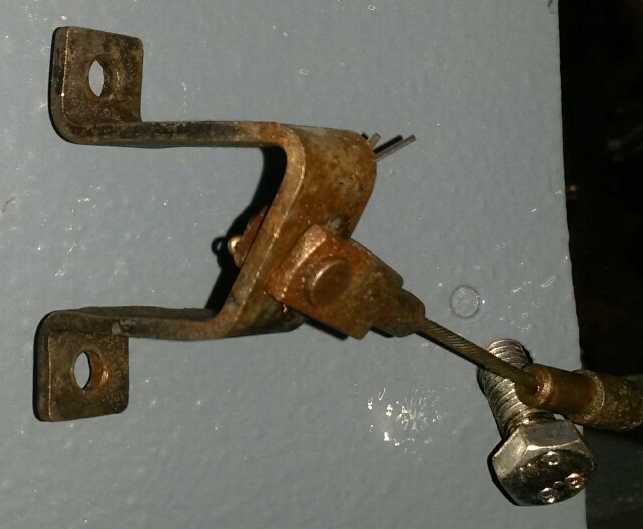

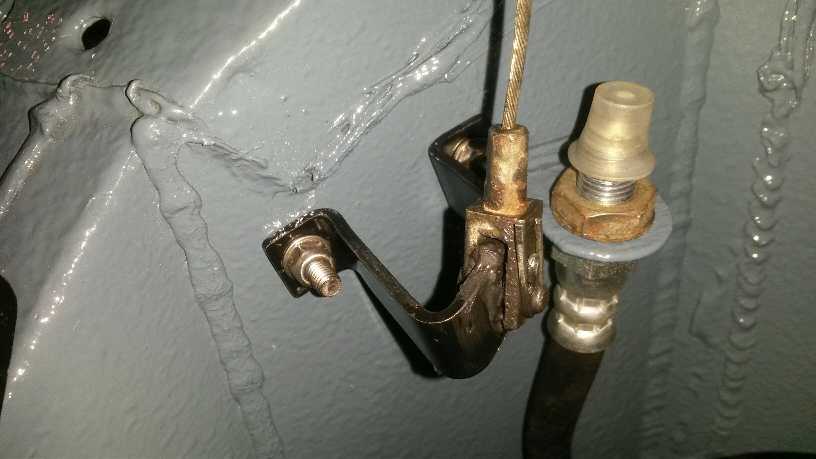

Here are the photos. The first one is the one Nick sent me, and the second one is mine that I fitted today. Hopefully these help if anyone else searches for this in future.

nickjaxe · Feb 1, 2015

I sure you have the bracket the wrong way around....anybody else like to comment.

Webley1991 · Feb 1, 2015

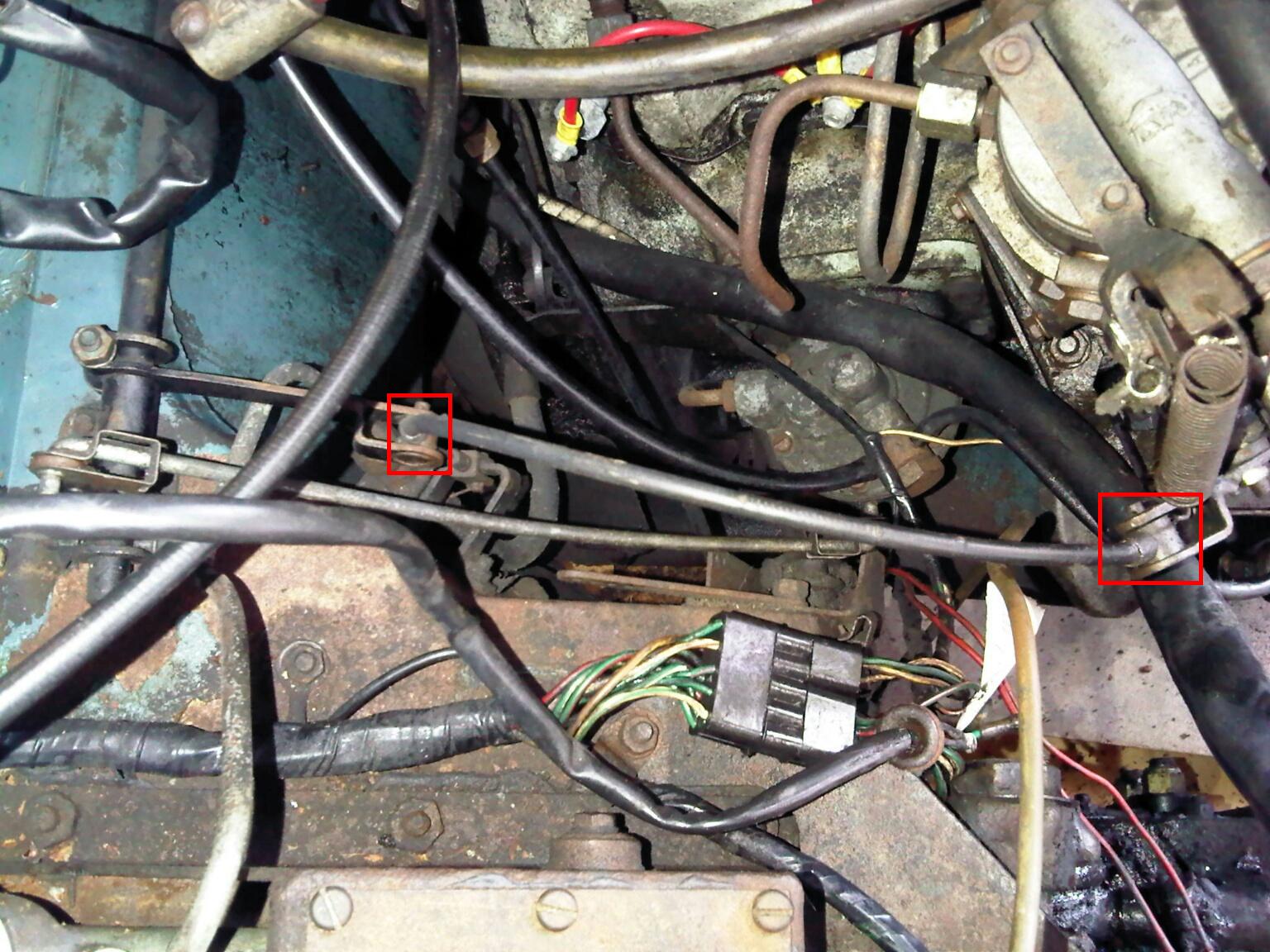

I went with how it was in this photo of the engine bay before I stripped everything down.

nickjaxe · Feb 1, 2015

Mmmmm well it certainly look correct in that picture.
