Defender Temperature Gauge

Defender91 · Jun 8, 2020

Hi,

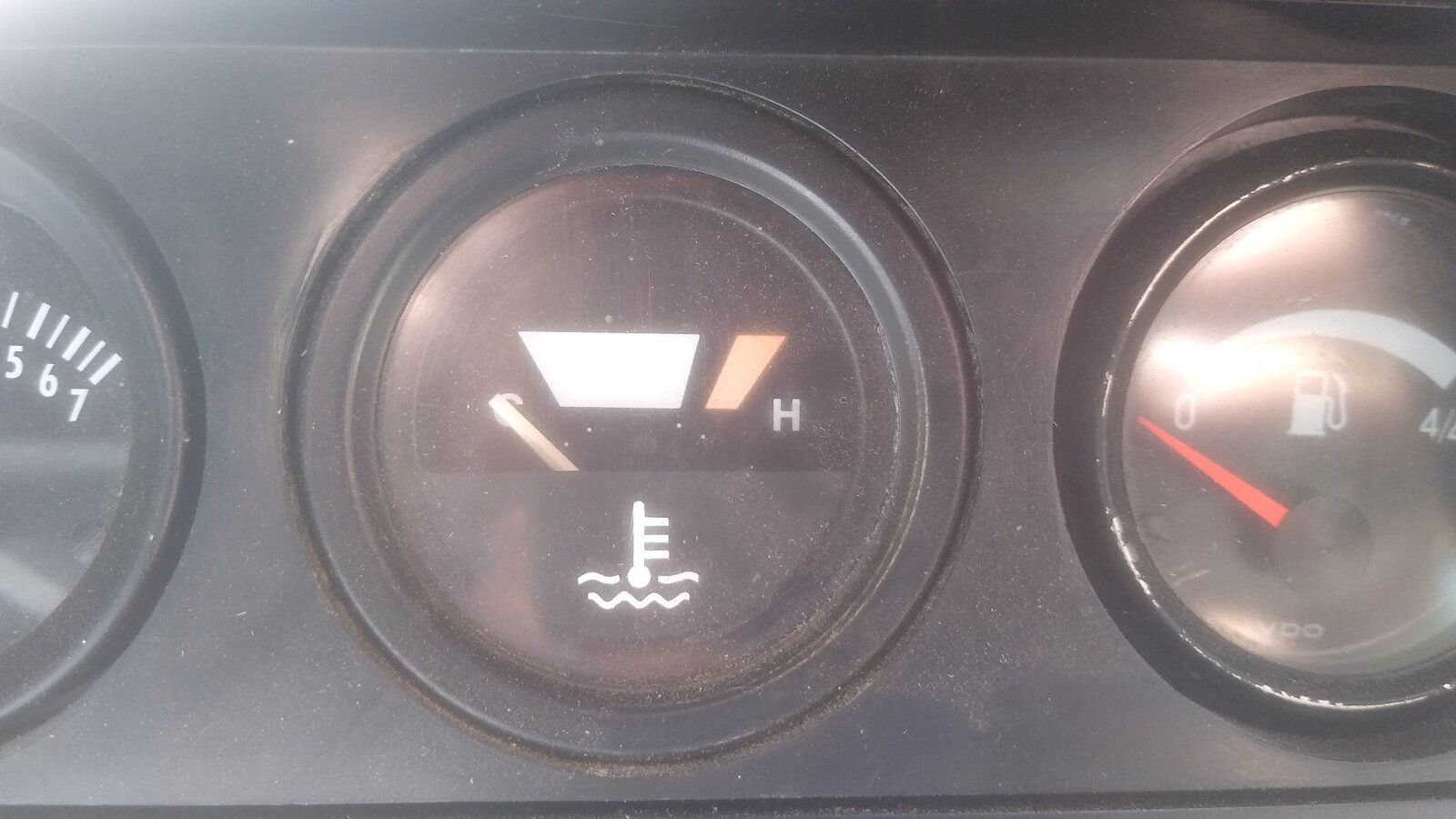

Whereabouts should I be expecting the needle to sit at operating temp on this model of gauge?
Just think my 200 might be running a bit hot,it's always gone up until

the needle is just in the gap.
Thanks

Gmacz · Jun 8, 2020

Pop in a new engine temp sensor and see if it makes a difference. Mine went wild before committing suicide.

bluedog333 · Jun 8, 2020

Defender91 said:
Hi,
Whereabouts should I be expecting the needle to sit at operating temp on this model of gauge?
Just think my 200 might be running a bit hot,it's always gone up until View attachment 211699 the needle is just in the gap.
Thanks

Get a proper gauge with actual numbers, Durite is a well known brand.

Defender91 · Jun 8, 2020

Thanks for the reply's,I ordered a new VDO gauge this afternoon.

johnlad · Jun 8, 2020

My 200tdi reaches about 82’c then the thermostat opens, which equates to 3/4 of the white band

frog hopper · Jun 8, 2020

johnlad said:
My 200tdi reaches about 82’c then the thermostat opens, which equates to 3/4 of the white band

Much the same as my 200, seems to sit quite happily at the top of the white, just a bit cooler than the width of the needle before the start of the gap if that makes any sense.

Defender91 · Jun 9, 2020

johnlad said:
My 200tdi reaches about 82’c then the thermostat opens, which equates to 3/4 of the white band

Think mine's has an 88.c thermostat,is that wrong?
Thanks

johnlad · Jun 9, 2020

Defender91 said:
Think mine's has an 88.c thermostat,is that wrong?
Thanks

I don’t know if it’s right or wrong, I prefer mine to run a little cooler as it’s only really used off road So not much air flow through the rad. I’ve fitted a switchable electric fan to help things cool.

Corfewoodsman · Jun 9, 2020

Hi Jon,
Mine registered hot intermittently for ages and never felt particularly so.
Eventually, I tracked the problem to the Earth lead from the sump to the chassis. It looked in place but when I tried it, was loose and did not provide constant contact.
I suggest you investigate that; rule out the easy before contemplating the difficult!

Corfewoodsman · Jun 9, 2020

johnlad said:
I don’t know if it’s right or wrong, I prefer mine to run a little cooler as it’s only really used off road So not much air flow through the rad. I’ve fitted a switchable electric fan to help things cool.

Sorry jonlad, I addressed my post to yo by mistake. I should, of course, typed Defender 91

nobber · Jun 9, 2020

Defender91 said:
Thanks for the reply's,I ordered a new VDO gauge this afternoon.

Did you order the correct sender?

Turktowner · Jun 9, 2020

My 300 runs at twelve o'clock regardless.
I expect @jamesmartin will be able to advise?

Defender91 · Jun 13, 2020

Sorry for not replying,I didn't see all the responses.
Gauge still isn't here,I ordered what I thought was the right sender,but that's come and the resistance readings don't tie in with what VDO listed so need to change that.
I'll update once I've got the gauge.
Thanks

Defender91 · Jun 16, 2020

Gauge turned up,I rigged it up with the sender and a battery and checked it in a saucepan first,read about 3.c low at all points. Fitted it to the landy,so far haven't driven far but hasn't gone over 92.c accounting for the gauge error, so turns out it was me making a fuss out of nothing.
Thanks for all the help.

Scooby22 · Jun 16, 2020

Check your viscous fan it may not be locking up when warm and providing enough cooling.
