Defender Heater - Only luke warm

bankz5152 · Mar 9, 2015

Hey chaps,

Hopefully someone can help me out. Recently took the heater control panel off and in doing so the hot/cold cable came off, which I reinstalled but went for a drive and no heat!

Temp gauge was where it should be, was doing 60 on the motorway. The air was luke warm. Luckily we are heading out of winter so it isnt all bad but still a pain.

Theres no gook or junk in the intake, water wouldnt have gotten in either. I checked the cables in the engine bay all still moving as the should, the arm on top of the box is also moving. Fan speed hasnt changed.

Any ideas on whats happend?

zeaphod · Mar 9, 2015

Sounds like the valve that controls the water flow is stuck closed.

bankz5152 · Mar 9, 2015

Where would i find such a valve?

zeaphod · Mar 9, 2015

Its the bit that the cable connects to. Take the cable off and move it, you should feel a bit of resistance. Run the engine and make sure the heater hose is hot, then try moving the lever to either end of its range of movement and see if there's any difference in the temperature of the heater output.

bankz5152 · Mar 9, 2015

Ok cheers mate. Should have time to look on Friday

sierrafery · Mar 10, 2015

AFAIK the Td5 has no valve on the coolant, it's permannent flow there, the cables are only for flap control(my apologies if i'm wrong)...IMO bleed well the system before you do anything else cos air lock in the matrix is very common.

bankz5152 · Mar 10, 2015

Cheers dude, now how do I do that ?

Buz · Mar 10, 2015

Changed the thermostat on my 200 and that worked a treat

trax · Mar 10, 2015

if you only fiddled with the dash control, then haven't you just put it back on without adjustment?

move heater control until max heat. go in engine bay unclip the wire cable and manually move the lever fully over. clip it back on in that position.

bankz5152 · Mar 10, 2015

Recently I did pop off the top hose on the header tank to move some wires, would that make any odds?

Ok ill check that tonight, im off work early

Cheers guys

bankz5152 · Mar 10, 2015

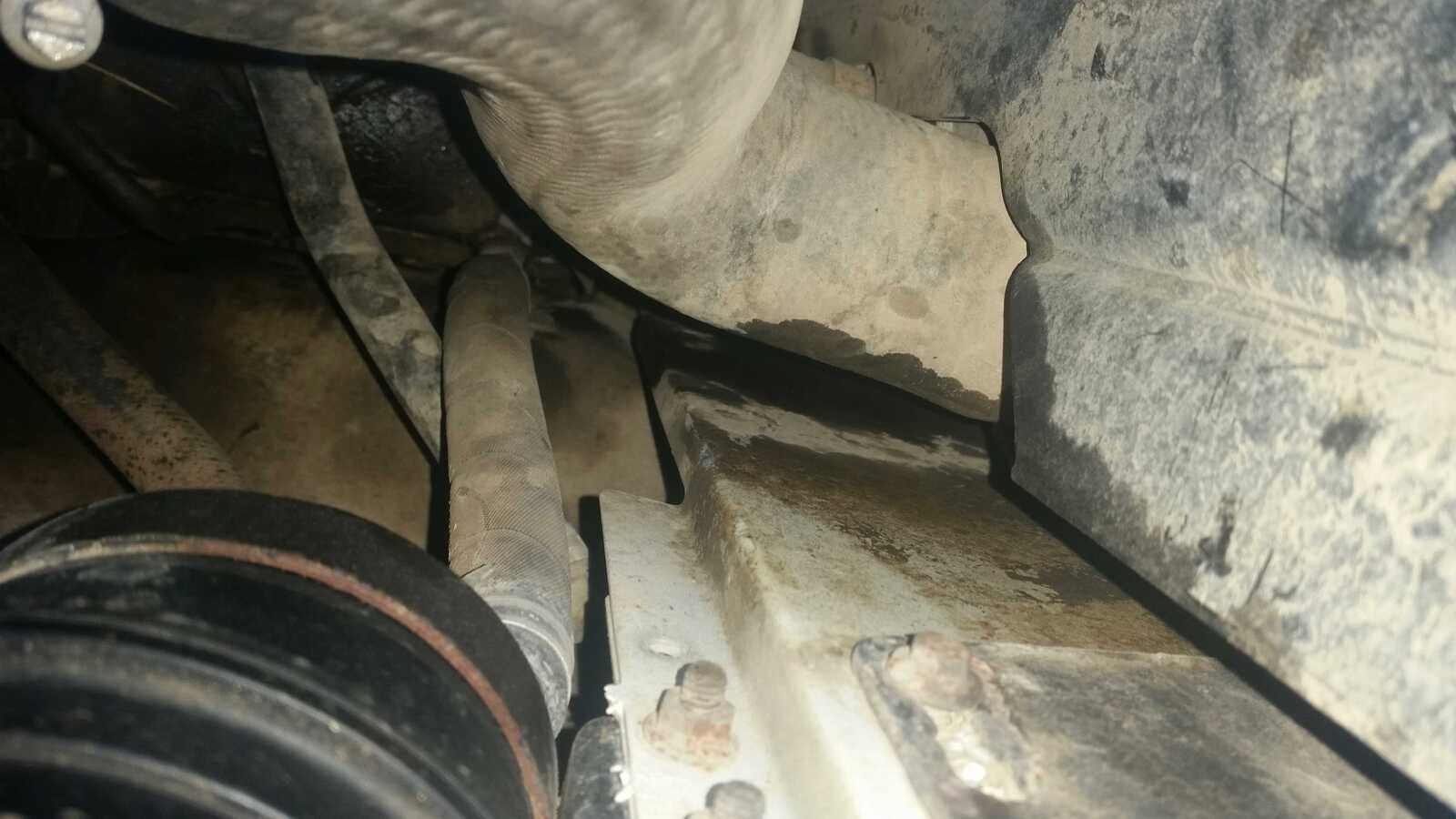

Just checking around the engine bay. The drivers side intercooler hose was VERY loose, pulled it off with almost no effort. Surrounded by a medium amount of liquid or oil

bankz5152 · Mar 10, 2015

Looks like the adjustment cable was ####ed. I believe ive fixed it.

Edit - I have fixed it! Even made it a slightly bit better. Cable was indeed fooked.
