Dash Ventilator grill fasteners

Cornishdefender

Active Member

Posts

71

Location

West Cornwall

• Wednesday at 08:58

• #1

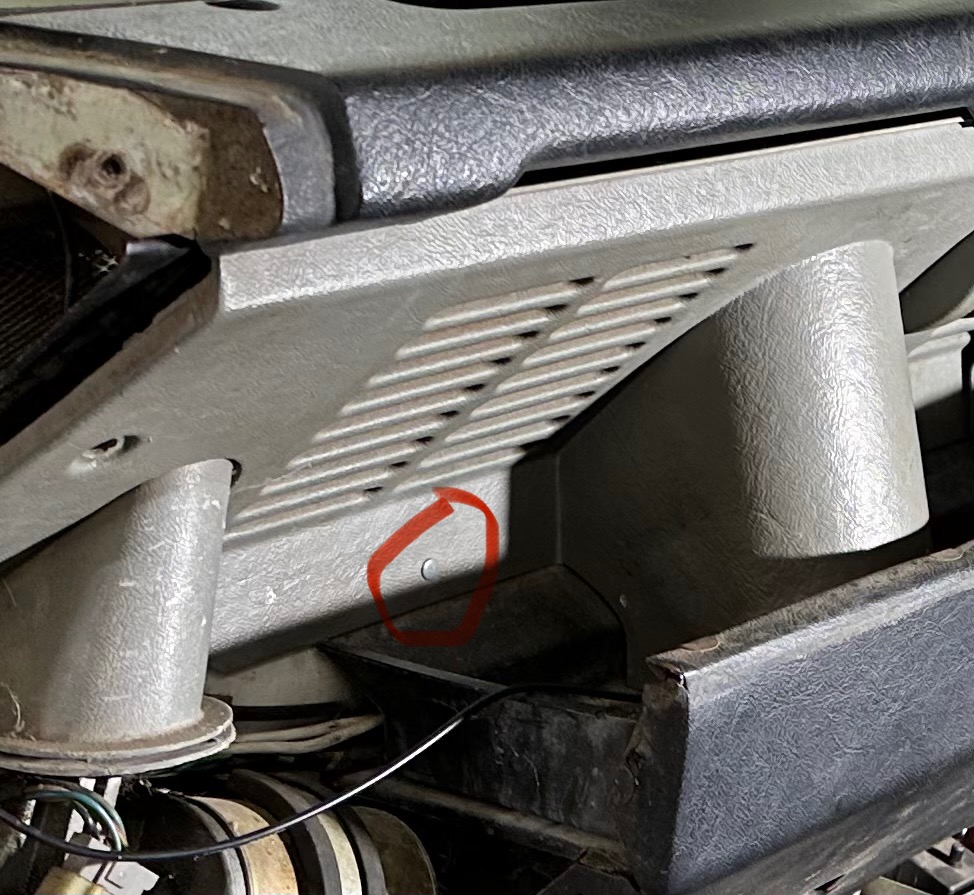

When we took out the dash etc tracing our electrical fault these fastenings wouldn’t budge so in the end chiselled off the heads. Anyone know the part number??
Thanks



tottot

Well-Known Member

Posts

8,106

Location

west wales coast

• Wednesday at 09:32

• #2

Try "vehicleclips.co.uk" Think the ones you are are called "fir tree clips/pins" Put Land Rover in search bar.



Last edited: Wednesday at 17:27

A

Anaconda

Well-Known Member

Posts

3,774

Location

Thames Valley

• Wednesday at 16:35

• #3

Pretty sure land rover call them pins if it any help. I did buy some once, will see if I can find them.



A

Anaconda

Well-Known Member

Posts

3,774

Location

Thames Valley

• Wednesday at 16:38

• #4

It might be these MTC9962, AAU7273L



dag019

Well-Known Member

Posts

6,166

Location

Warwick

• Thursday at 10:16

• #5

Cornishdefender said:

When we took out the dash etc tracing our electrical fault these fastenings wouldn’t budge so in the end chiselled off the heads. Anyone know the part number??
ThanksView attachment 331931

Click to expand...

Anaconda said:

It might be these MTC9962, AAU7273L

Click to expand...

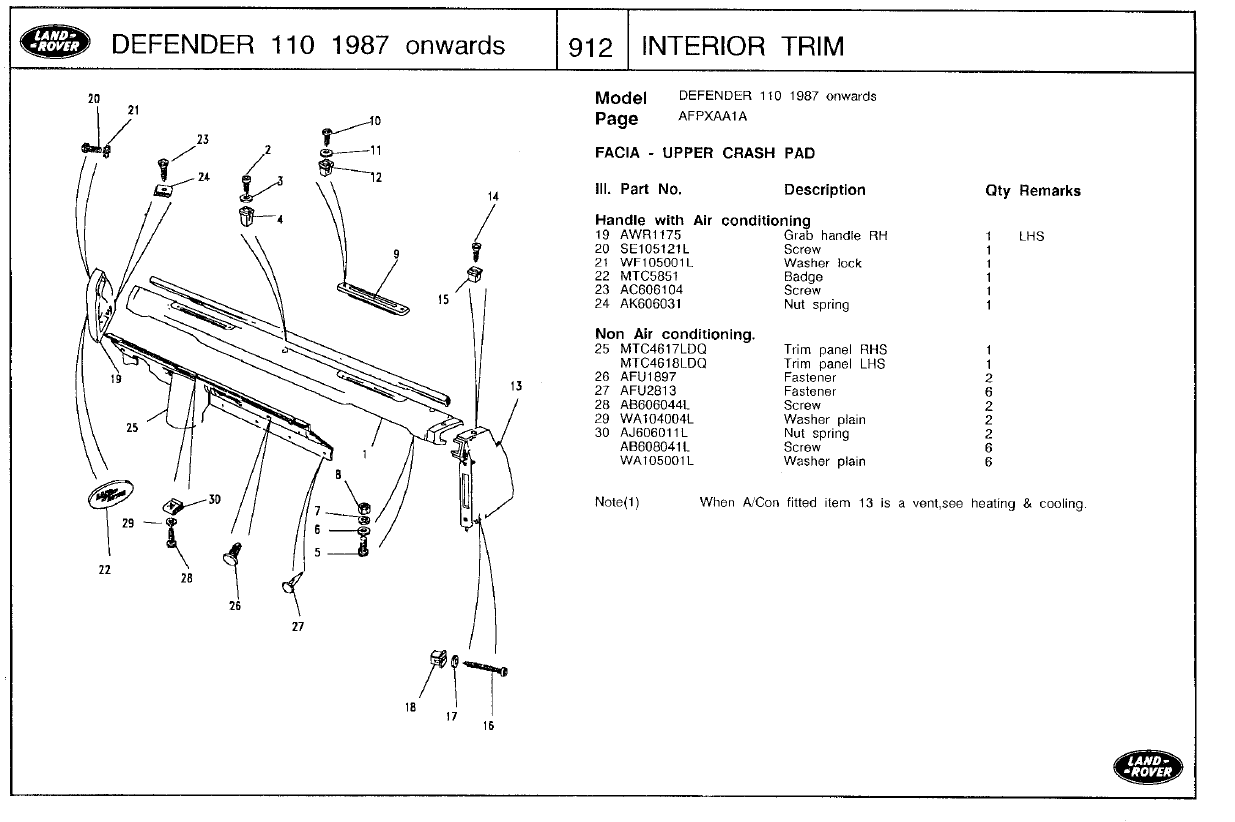

26/27 on the image above, AFU1897 and AFU2813. Not sure what the difference is, I used AFU1897 for all for my rebuild after the fire. But both are the correct grey colour for the trim panel.



A

Anaconda

Well-Known Member

Posts

3,774

Location

Thames Valley

• Thursday at 13:15

• #6

dag019 said:

View attachment 331985

26/27 on the image above, AFU1897 and AFU2813. Not sure what the difference is, I used AFU1897 for all for my rebuild after the fire. But both are the correct grey colour for the trim panel.

Click to expand...

Yes, that looks more like it.
