Freelander 2 (LR2) Crank pulley pick up ring issue

benh999 said:

Hey folks.

I’ve purchased a new pick up ring that sits between the crank and Aux pulley from INA however although I am told it was correct for my 2007 freelander 2 it doesn’t seem to be correct. It fits the same as the OE one howecer the OE almost has a spacer built in to the middle where as the new one is basically thin and flat. Other than that it’s identical,

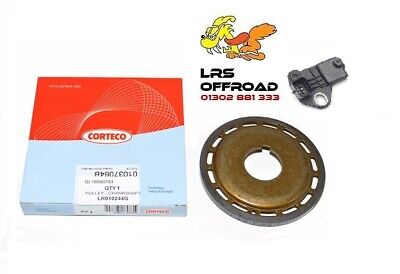

Please see attached picture, any advice greatly appreciated.

Click to expand...

Nodge68 said:

There are 2 types, an early which gave many problems, so was superceded pretty early on. This means that most were replaced for the more reliable later type under warranty, but it looks like yours wasn't.

You'll need to replace the sensor, trigger wheel and crank pulley, as they're all designed to work together.

Additionally did you fitted locking pins? If not the cam timing will have shifted, as the pulley bolt keeps the cam timing correct.

Click to expand...
