Cooling fan wiring

C

chrisellis

New Member

Posts

2

• Feb 6, 2007

• #1

Hi

I am sorry to say I do not own and Land Rover but I am using a Freelander twin cooling fan on a replica works TR8 rally car. I was hoping someone may be able to help me with the wiring on the control unit mounted on the frame, if not I will discard it and run the fans in the usual way.

It has two feed wires presumed - and + high amp feed in one plug colours black and brown/green plus a smaller connector with two wires white and brown.

I would be very grateful for any info or a pointer to a schematic.



Northern Irelander

Well-Known Member

Posts

2,890

Location

N. Ireland

• Feb 6, 2007

• #2

Cue mad hat man with techhie diagrams



The Mad Hat Man

Well-Known Member

LZIR Despatch Agent

Posts

83,289

Location

Embasinga stocæ

• Feb 6, 2007

• #3

My ears are burning sumone mentch my name?

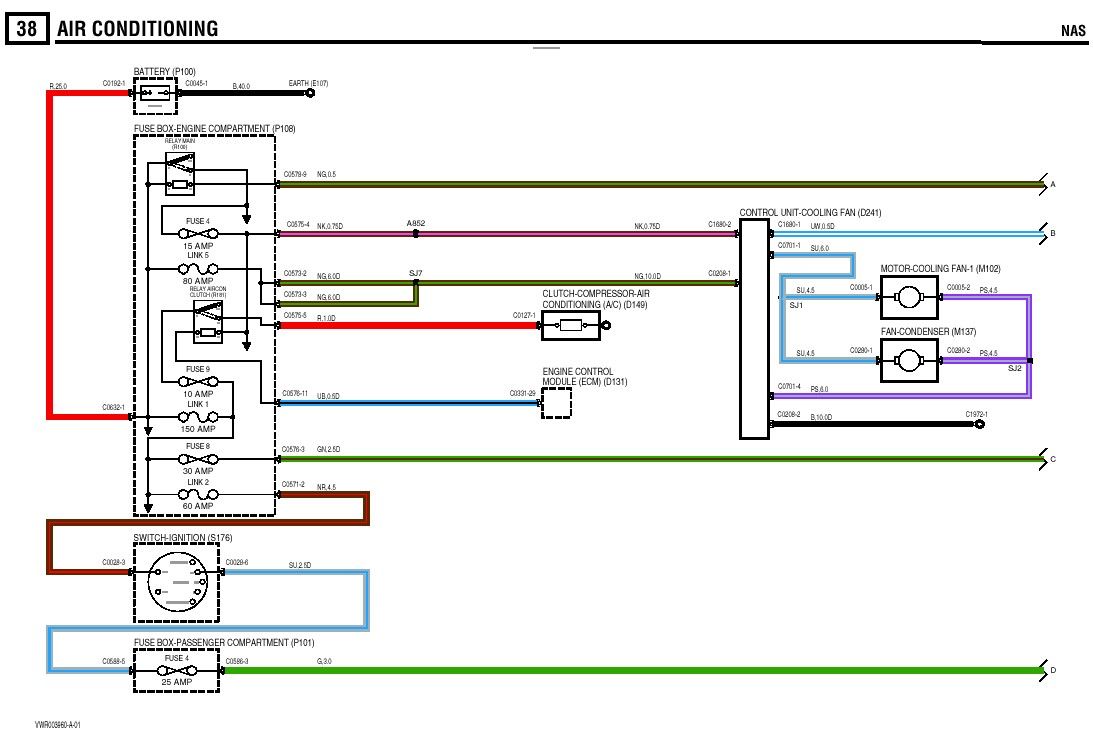

hope this helps - but if not - shout!



Attachments

•

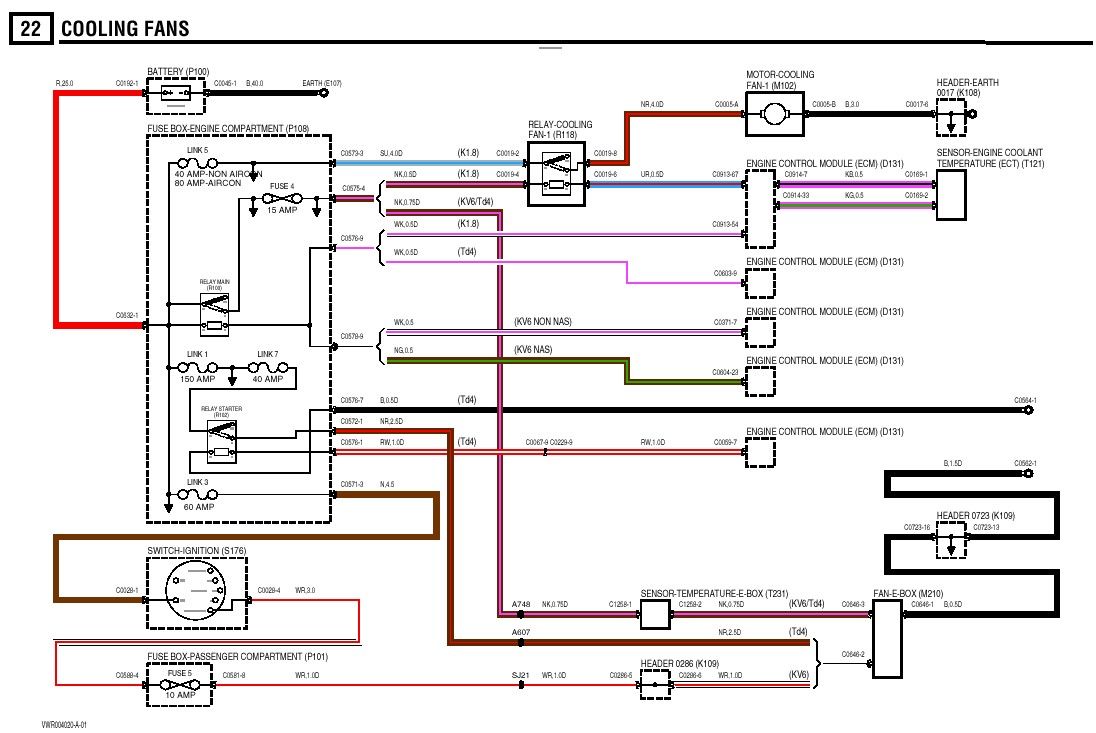

  cooling fans.jpg

  104.4 KB · Views: 1,528
•

  80.5 KB · Views: 1,531

Northern Irelander

Well-Known Member

Posts

2,890

Location

N. Ireland

• Feb 6, 2007

• #4

The Mad Hat Man said:

My ears are burning !

Click to expand...

Its all good mhm



C

chrisellis

New Member

Posts

2

• Feb 6, 2007

• #5

The Mad Hat Man said:

My ears are burning sumone mentch my name?

hope this helps - but if not - shout!

Click to expand...

Thanks very much, although it is quit dificult to see I think this is different to my setup. The module has four wires in and two more pairs out, feeding the fans separately.

Colours are: red and green to one fan, orange/yellow orange/green to second fan. The input colours are brown/green, black, white and brown.

I presume one or two fans are switched when needed.

The second image you gave was nearest but both fans are on together.

Regards
Chris
