Clutch Slave cylinder pushrod thingy

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

martinl

Active Member
Posts
273
Location
Bilston, West Midlands
Hi

Has anyone ever tried to refit the plastic clip on the clutch arm, the one that holds the slave cylinder push-rod in position. Easy yes, with the gearbox out, Bloody tricky with the gearbox in.

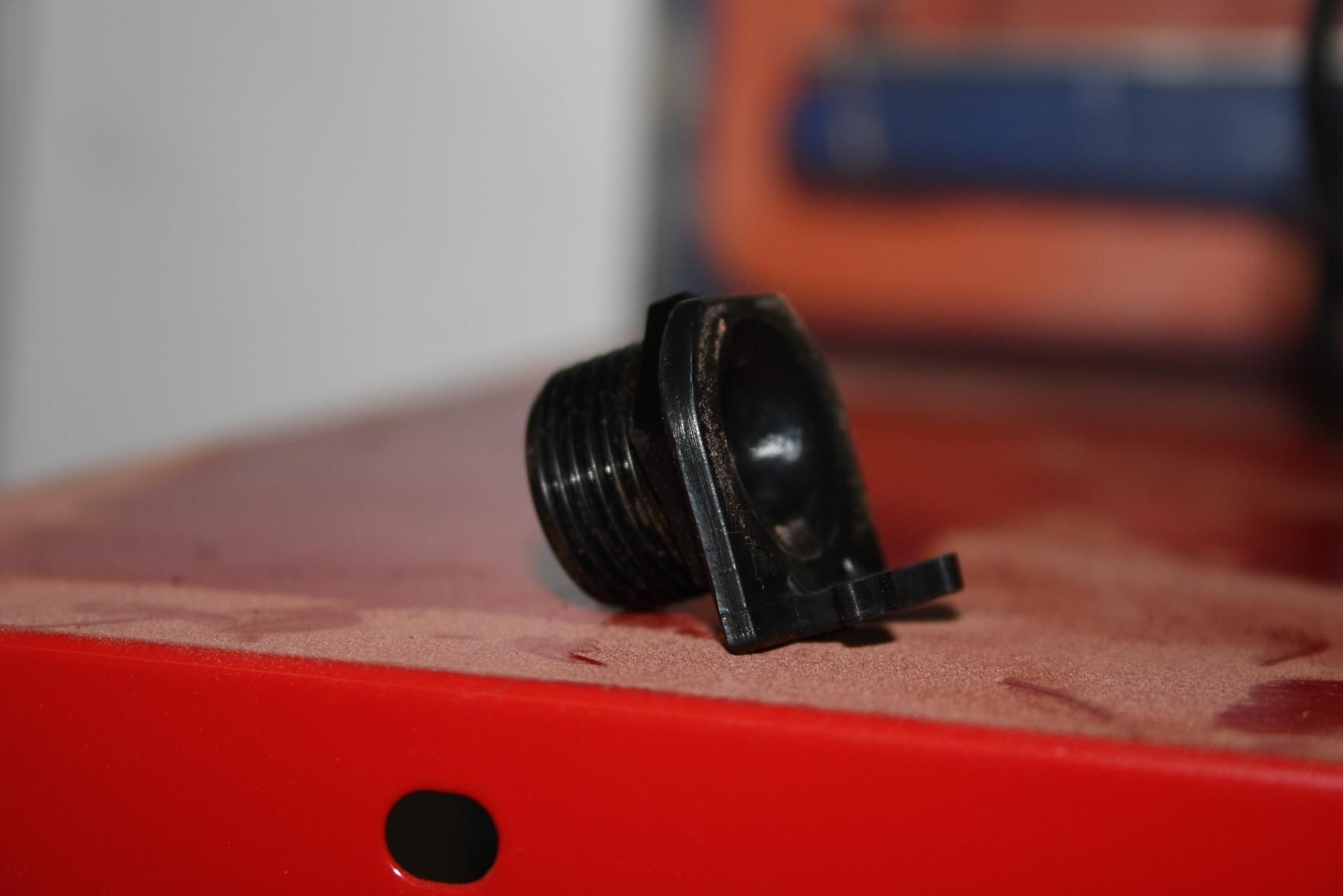

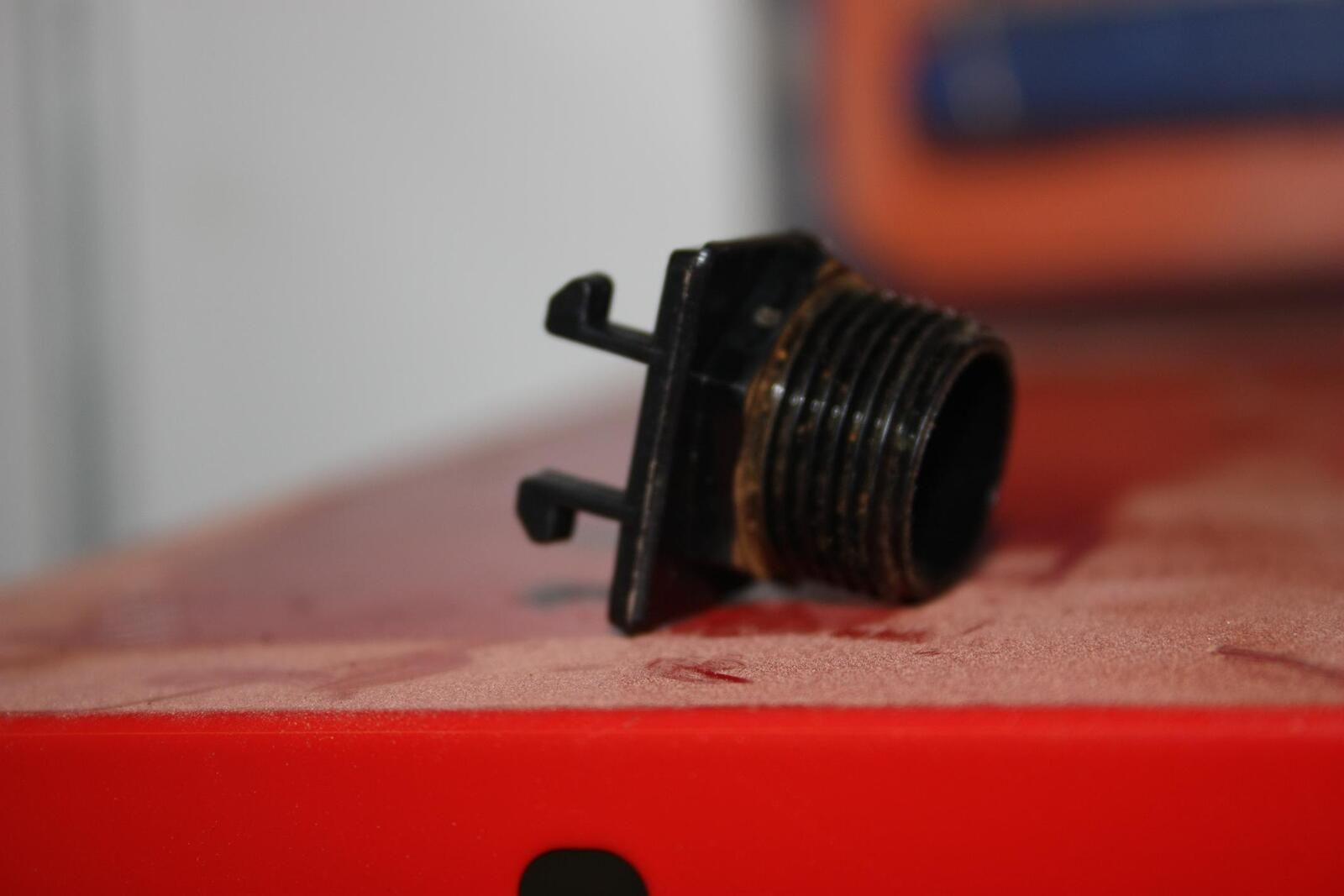

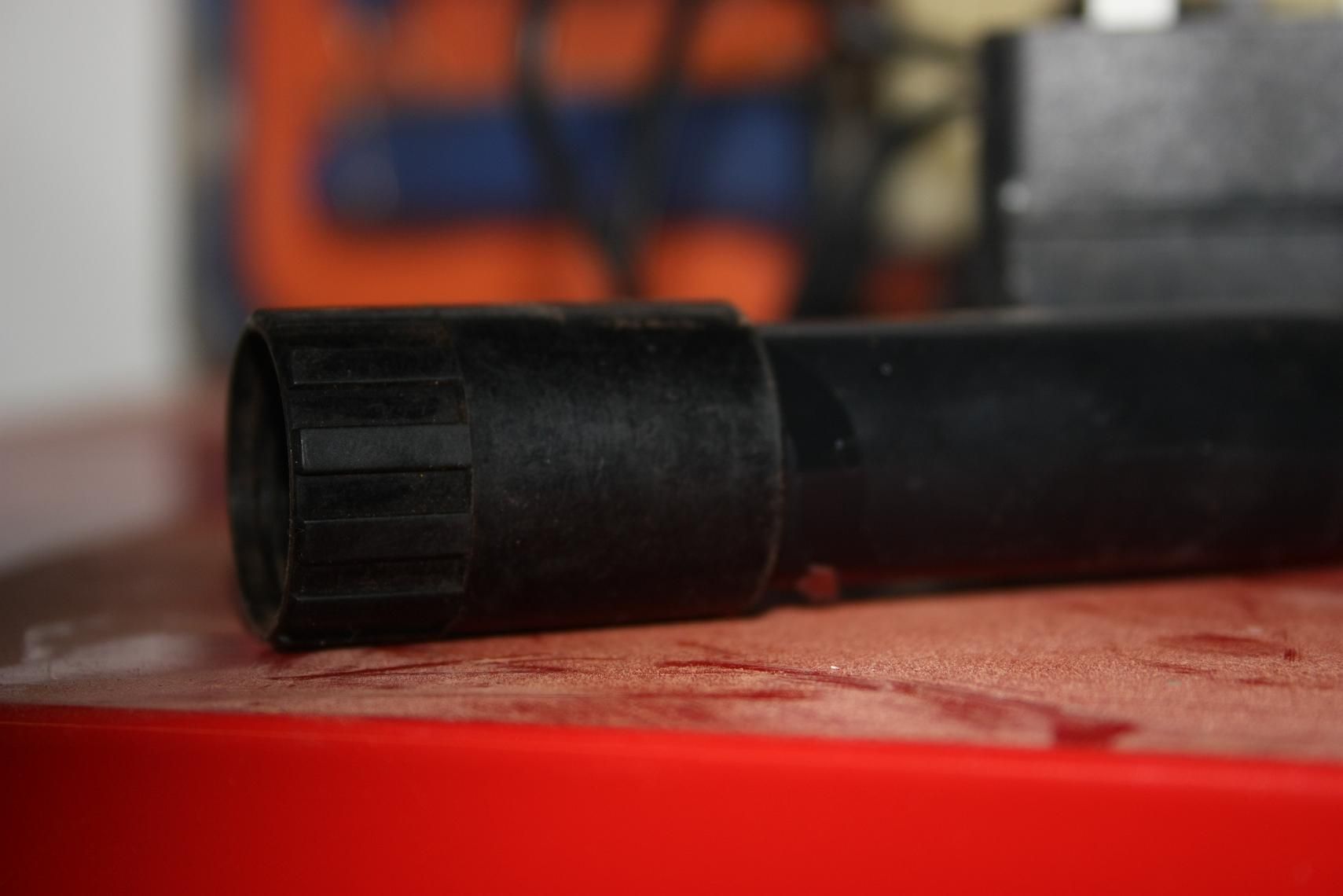

Here is a trick I worked out for doing the job through the slave cylinder mounting hole. simply glue a plastic electrical gland nut to the fitting, then use a small piece of plastic conduit screwed onto the gland nut to position the clip and fit it. the push-rod is safe inside the conduit and when done simply unscrew the conduit from the nut. The small gland nut will not interfere at all with the clutch opperation...

Cool eh?


Attachments

  • IMG_0123a.JPG
    77.7 KB · Views: 306
  • IMG_0124a.JPG
    66 KB · Views: 329
  • IMG_0125a.JPG
    81.7 KB · Views: 306
